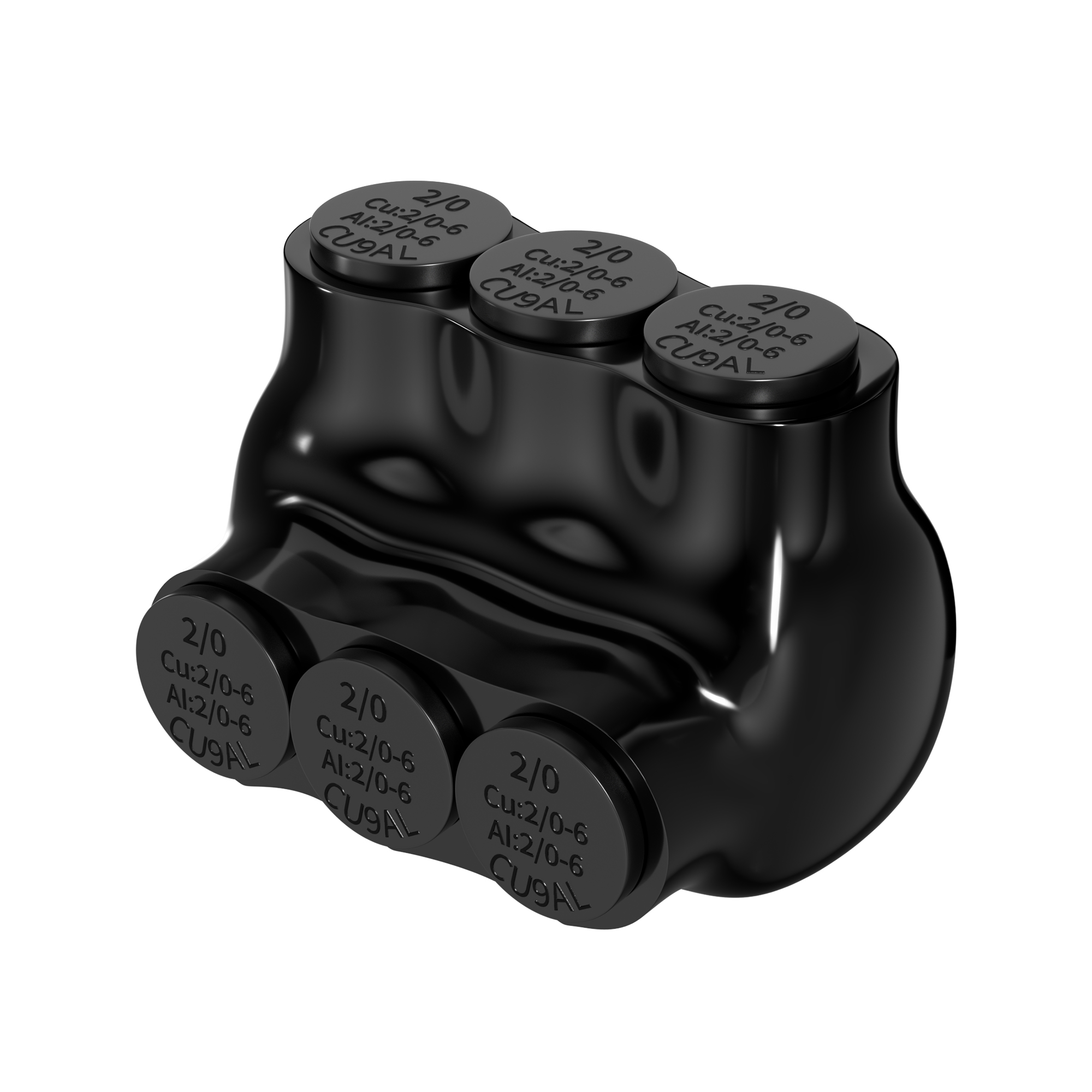

ITC-103-2/0AWG 2/0 AWG – 6 AWG 3-Port Single-Sided Entry Insulated Multi-Tap Connector
Part#ITC-103-2/0AWG
The 3 port single-side entry insulated multi-tap connector is expertly designed to securely accommodate a wide range of wire gauges, from 2/0 AWG to 6 AWG.
The single-side entry design allows for secure connections between copper and aluminum, aluminum and aluminum, and copper and copper.
2/0 AWG – 6 AWG 3-Port Single-Sided Entry Insulated Multi-Tap Connector Fetures
- Versatile Wire Splicing

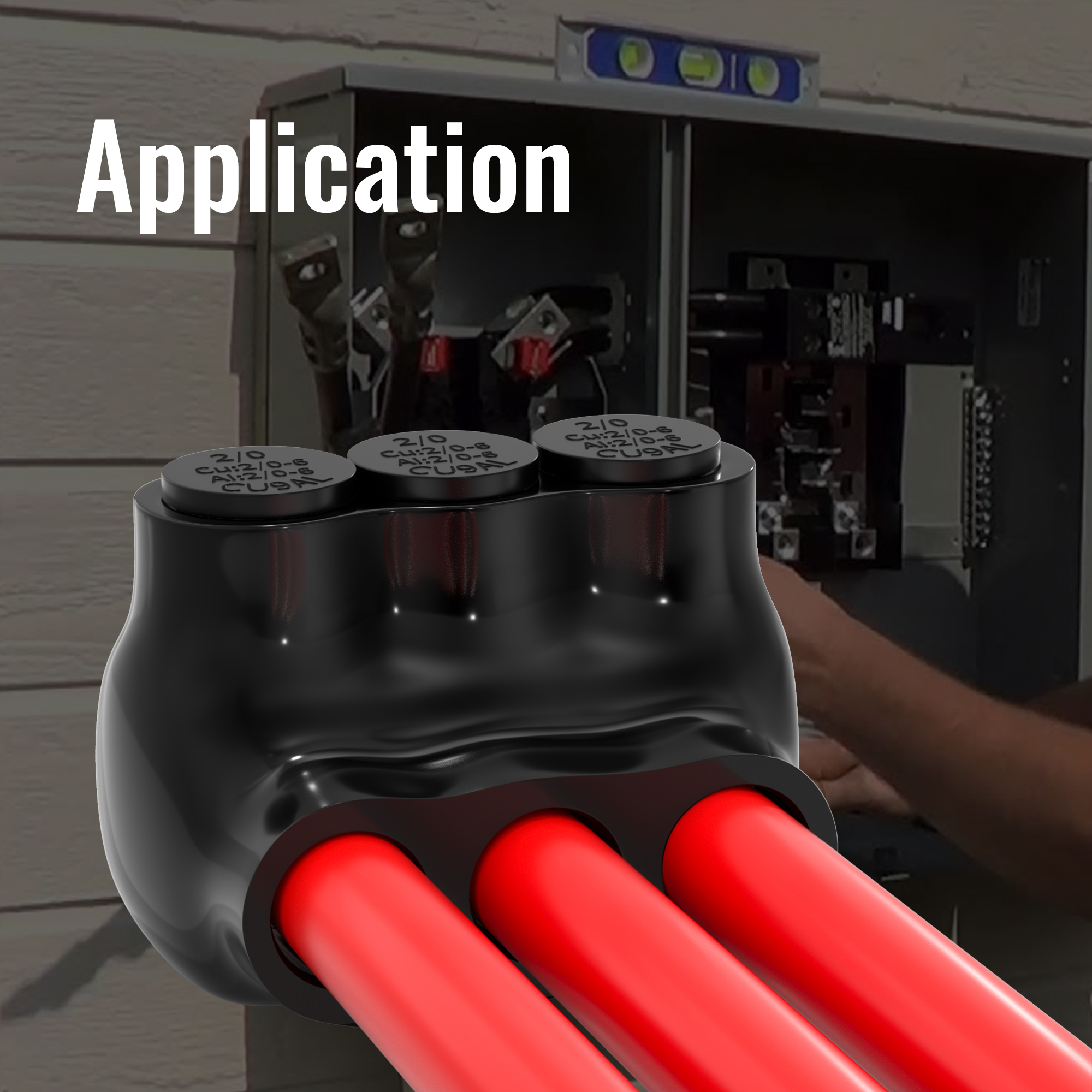

This 3-port single-sided insulated tap connector is designed to simplify and enhance wire splicing for a wide range of electrical projects. It accommodates wire gauges from 2/0 AWG to 6 AWG, making it suitable for various applications, from high-power circuits to smaller wiring needs. This versatility allows for streamlined connections in diverse electrical setups.
- Copper/Aluminum Design
This pre-Insulated connector allows for seamless splicing between copper and aluminum wires, eliminating the risk of corrosion and electrical issues often associated with dissimilar metal connections. Its design ensures safe and reliable operation in mixed-metal wiring scenarios, making it a versatile solution for various applications.
- Enhanced Protection
The aluminum and copper wiring connector features high dielectric strength plastic insulation, providing superior chemical protection and wear resistance. This robust insulation safeguards against moisture, abrasion, and other environmental factors, ensuring long-term reliability and performance in demanding environments.
- Convenient & Safe Design
This 2/0 AWG to 6 AWG multi-tap connector offers a convenient and safe design for easy installation and maintenance. The hex screw system provides a secure and reliable connection, while lubricating oil with antioxidant properties minimizes corrosion and ensures smooth, lasting connections. This design makes it an excellent alternative to traditional butterfly nut connectors.
- UV-Resistant Insulation
The wire connector’s pre-insulated body is coated in a UV-resistant plastisol compound, providing exceptional protection against degradation from sunlight exposure. This coating resists cracking, fading, and other forms of UV damage.
- Extreme Temperature Rated
This insulated splice connector is designed to perform reliably in extreme temperature environments, operating between -49°F (-45°C) and 194°F (90°C). The broad operating temperature and heavy duty properties are a great option for those looking to keep their equipment functional in different applications.
2/0 AWG – 6 AWG 3-Port Single-Sided Entry Insulated Multi-Tap Connector Datasheet
| Part NO | ITC-103-2/0AWG |
| Voltage Rating | 600V |
| Wire Range | 2/0 AWG – 6 AWG |
| Bolt | Hex Head |
| Wire Ports | Single-Sided Wire Entry |
| Conductor Type | Aluminum and Copper Wire |
| Finish | UV-Resisted Plastisol |
| Temperature Rating | -49°F – 194°F |
| Certification | UL |
