Enhancing Electrical Safety & NEC Compliance: A Professional’s Guide to Generator Interlock Kits
- April 22, 2025
- 80
Powering Through Outages – Safely and Compliantly
Power outages are more than just an inconvenience; they disrupt businesses, compromise home safety systems, and impact daily life. For property owners, a portable generator offers a vital lifeline. However, how that generator is connected to the building’s electrical system is paramount. As electrical professionals, ensuring safe, reliable, and code-compliant backup power solutions for your clients isn’t just good practice – it’s a fundamental responsibility.
Improper generator connections pose significant risks, most notably the potential for dangerous backfeeding onto utility lines. This hazard endangers utility workers, risks damaging equipment, and exposes contractors and property owners to significant liability. While transfer switches are a well-known solution, Generator Interlock Kits offer a safe, cost-effective, and often simpler alternative for many applications, directly addressing National Electrical Code (NEC) requirements for preventing the inadvertent interconnection of power sources.
This guide provides electrical professionals with essential information on generator interlock kits: understanding their critical safety function, ensuring NEC compliance, identifying the right kit for specific panels, and recognizing the value they bring to your services and clients.
Section 1: The Critical Danger of Backfeeding and the Importance of NEC Compliance

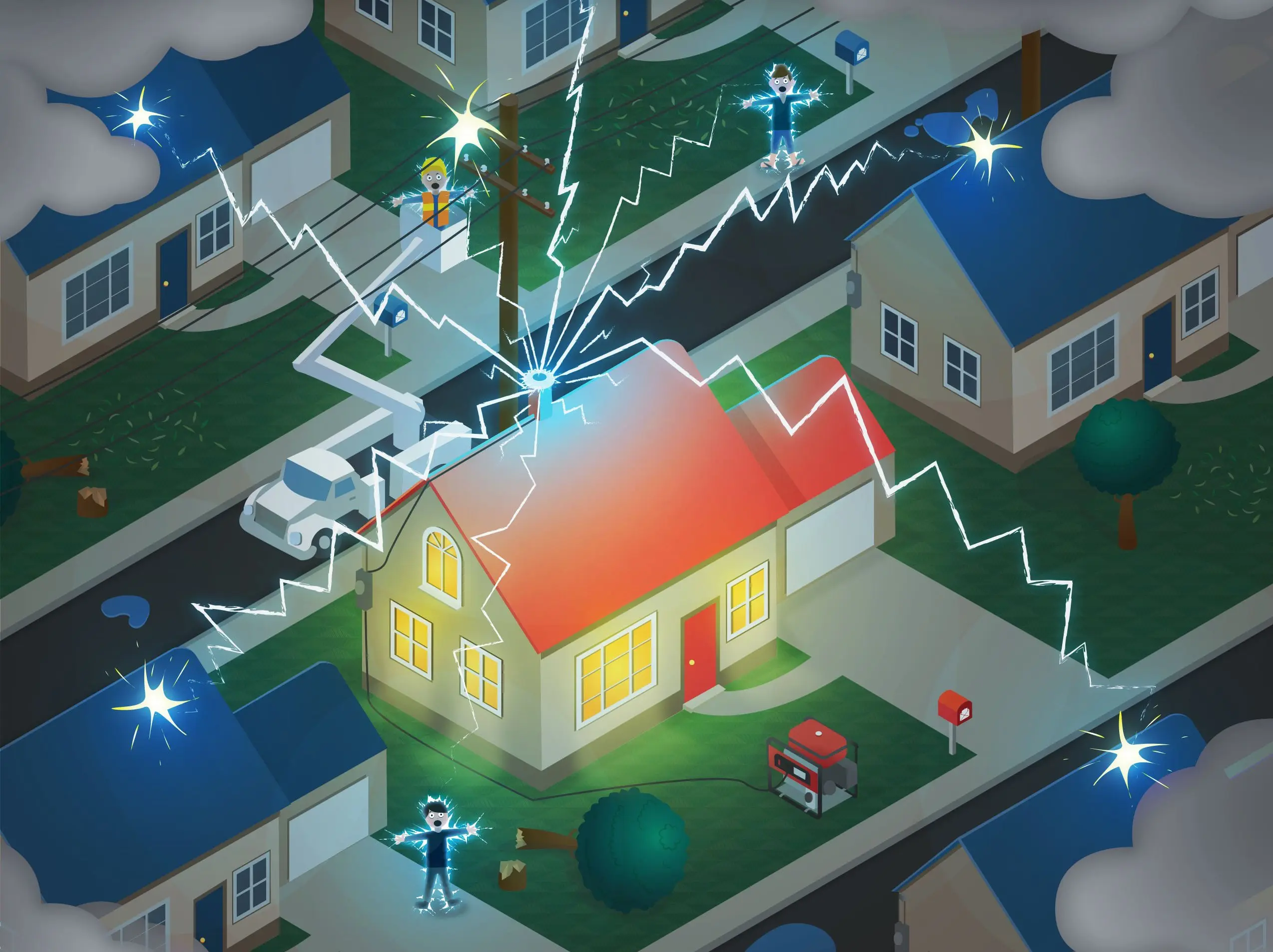

Backfeeding occurs when electricity from a generator flows back through the main panel and onto the utility grid. During an outage, utility lines are presumed de-energized by lineworkers performing repairs. Unexpected voltage from an improperly connected generator can lead to severe injury or fatality for these workers. Furthermore, it can damage the generator, the client’s appliances, and utility equipment when grid power is eventually restored.
The National Electrical Code (NEC) specifically addresses this hazard. Article 702.6 (Optional Standby Systems) mandates that transfer equipment “shall be suitable for the intended use and so designed and installed as to prevent the inadvertent interconnection of normal and alternate sources of supply in any operation of the transfer equipment.”
Generator interlock kits are explicitly designed to meet this requirement. By installing a code-compliant interlock, you:
- Ensure Worker Safety: Directly prevent lethal backfeeding onto utility lines.
- Protect Equipment: Safeguard the generator and connected appliances from damage.
- Meet Code Requirements: Fulfill NEC mandates for safe generator connection.
- Reduce Liability: Mitigate risks associated with improper installations.
- Demonstrate Professionalism: Provide clients with a recognized, safe solution.
Failing to install a proper transfer means (like an interlock or transfer switch) is not only a code violation but a serious lapse in professional duty.
Section 2: The Simple Genius of the Generator Interlock Kit
Unlike automatic or manual transfer switches that reroute power through a separate switching mechanism, a generator interlock kit works on a simple, foolproof mechanical principle. It consists of precisely engineered plates that mount directly onto the existing electrical panel cover.
These plates physically restrict the movement of the main circuit breaker and the designated generator backfeed breaker. The design ensures that:
- When the Main Breaker is ON, the interlock plate blocks the Generator Breaker from being turned ON.
- To turn the Generator Breaker ON, the Main Breaker MUST be turned OFF first. Sliding the interlock plate then physically blocks the Main Breaker from being turned back ON while the generator breaker is active.
This elegant mechanical “either/or” system makes the inadvertent interconnection of utility power and generator power impossible.
Interlocks vs. Transfer Switches: While transfer switches (especially automatic ones) offer seamless power transition and can isolate specific circuits, interlock kits provide significant advantages in many scenarios:
- Cost-Effectiveness: Generally less expensive than manual or automatic transfer switches in terms of both hardware and installation labor.
- Simplicity: Fewer components and simpler wiring requirements.
- Space Savings: Mounts directly onto the existing panel cover, requiring no additional wall space for a separate enclosure.
- Flexibility: Allows the client to power any circuit in their panel up to the generator’s capacity (though load management is crucial).
Interlock kits are an ideal solution for residential and light commercial applications where budget, space, and installation simplicity are key factors, while still providing the essential safety function mandated by the NEC.
Section 3: Selecting the Right Kit: Compatibility, Quality, and Completeness
Choosing the correct interlock kit is not just about functionality; it’s about ensuring a safe and proper fit for the specific electrical panel. Key factors include:
- Panel Brand and Type: Interlocks are designed for specific manufacturers (e.g., Square D QO or Homeline, Eaton CH or BR, Siemens, General Electric) and panel types (main breaker location, vertical/horizontal throw). Using the wrong brand kit will simply not fit or function correctly.
- Amperage Rating: Kits are typically designed for common main breaker amperages (e.g., 100A, 150A, 200A).
- Breaker Spacing: This is the most critical measurement. It refers to the distance between the centerlines of the main breaker and the generator backfeed breaker (usually the top breaker spaces on the opposite side of the main). This spacing must match the interlock kit’s specifications exactly. Common spacings include 7/8″, 1-1/4″, 1-3/8″, 1-1/2″, 2-1/2″, etc., depending on the panel model.
Why Daier Generator Lockout Kits Stand Out:
- Precision Engineering: Our kits are manufactured to precise tolerances based on specific panel models, ensuring accurate fitment and reliable operation. Key specifications like breaker spacing (e.g., 1-3/8″ for GL-1, 1-1/2″ for GL-2) are clearly listed for easy identification.
- Broad Compatibility: We offer a comprehensive range covering major panel brands like Square D, Eaton, Siemens, and GE, simplifying sourcing for diverse projects.
- Durable Construction: Manufactured from high-grade, corrosion-resistant aluminum alloy, our interlocks are built for long-lasting performance and reliability, minimizing callbacks.
- Complete Hardware: Each kit includes not just the interlock plates but also the necessary mounting hardware (screws, nuts), clear generator reminder labels, zip ties for wire management, and crucially, a high-quality 3/16″ steel drill bit often coated for durability (like PVD Titanium). Including the correct drill bit saves installation time and prevents damage caused by using the wrong size.
- Clear Instructions: Detailed, easy-to-follow installation instructions are provided to ensure a correct and safe setup.
Section 4: Installation Best Practices for Professionals
While interlock kit installation is generally straightforward for qualified electricians, adhering to best practices ensures safety and reliability:
- Safety First: ALWAYS turn off the main breaker and verify the panel is de-energized before starting any work. Follow standard lockout/tagout procedures if applicable.
- Verify Compatibility: Double-check the panel brand, model, and precisely measure the breaker spacing before drilling. Ensure the chosen kit matches these specifications.
- Panel Cover Removal: Carefully remove the panel cover (dead front).
- Positioning & Drilling: Use the interlock plate or provided template (if applicable) to mark the drill holes accurately. Use the included drill bit for clean, correctly sized holes. Deburr holes if necessary.
- Mounting: Securely fasten the interlock plates to the panel cover using the provided hardware. Ensure screws/nuts do not interfere with internal panel components.
- Testing: Re-install the panel cover. Manually operate the main breaker, generator breaker, and interlock plate through their full range of motion. Verify the interlock mechanism functions correctly, physically preventing both breakers from being ON simultaneously.
- Labeling: Apply the included warning and instructional labels clearly near the interlock and relevant breakers as per NEC requirements and manufacturer instructions.
- Generator Inlet: Remember that an interlock kit requires a separate, correctly installed generator power inlet box and appropriate generator cord. Ensure this is part of the overall system plan.
- Local Codes: Always check for and comply with any specific local amendments or requirements regarding generator installations.
Section 5: Adding Value with Generator Interlock Solutions
Offering generator interlock kit installations provides tangible benefits for your business and your clients:
- Enhanced Service Offering: Provide a complete, code-compliant backup power solution that is often more accessible and affordable for clients than traditional transfer switches.
- Increased Client Safety & Satisfaction: Deliver peace of mind by ensuring their generator connection is safe and reliable.
- Improved Efficiency: The relative speed and simplicity of interlock installation can improve job turnaround times and profitability compared to more complex transfer switch setups.
- Professional Reputation: Demonstrates commitment to safety, code compliance, and providing effective solutions.
- For Distributors: Stocking a high-quality, comprehensive range of interlock kits meets a growing demand from contractors seeking reliable, code-compliant products. The completeness of kits (including drill bits) adds value and convenience for your contractor customers.
Conclusion: The Professional Choice for Safe Generator Power
Generator interlock kits are not just accessories; they are essential safety devices mandated by the NEC to prevent dangerous backfeeding. For electrical professionals, understanding their function, ensuring correct selection based on panel compatibility and precise spacing, and adhering to proper installation practices are crucial.
By offering high-quality, durable, and code-compliant interlock kits like those in Daier generator interlock kits range, you provide significant value to your clients, enhance safety, ensure compliance, and improve operational efficiency. Equip yourself and your clients with the right tools for safe, reliable backup power.
