Discover Daier’s IP67 Toggle Switches: Ultimate Durability for Harsh Environments
- June 29, 2024
- 766
Tired of switches failing in demanding conditions? Daier introduces its new KN3F Series IP67 Toggle Switches, designed to deliver unmatched durability, reliability, and versatility. Whether you’re working in an industrial setting, dealing with outdoor environments, or needing a reliable switch for marine applications, our latest line of waterproof toggle switches has got you covered.
Daier, a leading manufacturer of high-quality electrical components, is proud to launch this innovative product line aimed at meeting the toughest demands of our customers.
What is an IP67 Toggle Switch?
IP67 is a high level of ingress protection against dust and water, signifying that the switch is fully protected against dust ingress and can withstand temporary submersion in water. Specifically, this means the switch can endure being submerged in water up to 1 meter for 30 minutes. This level of protection ensures that Daier’s KN3F series toggle switches can perform reliably even in harsh environments, making them perfect for outdoor and industrial applications where exposure to moisture and dust is common.

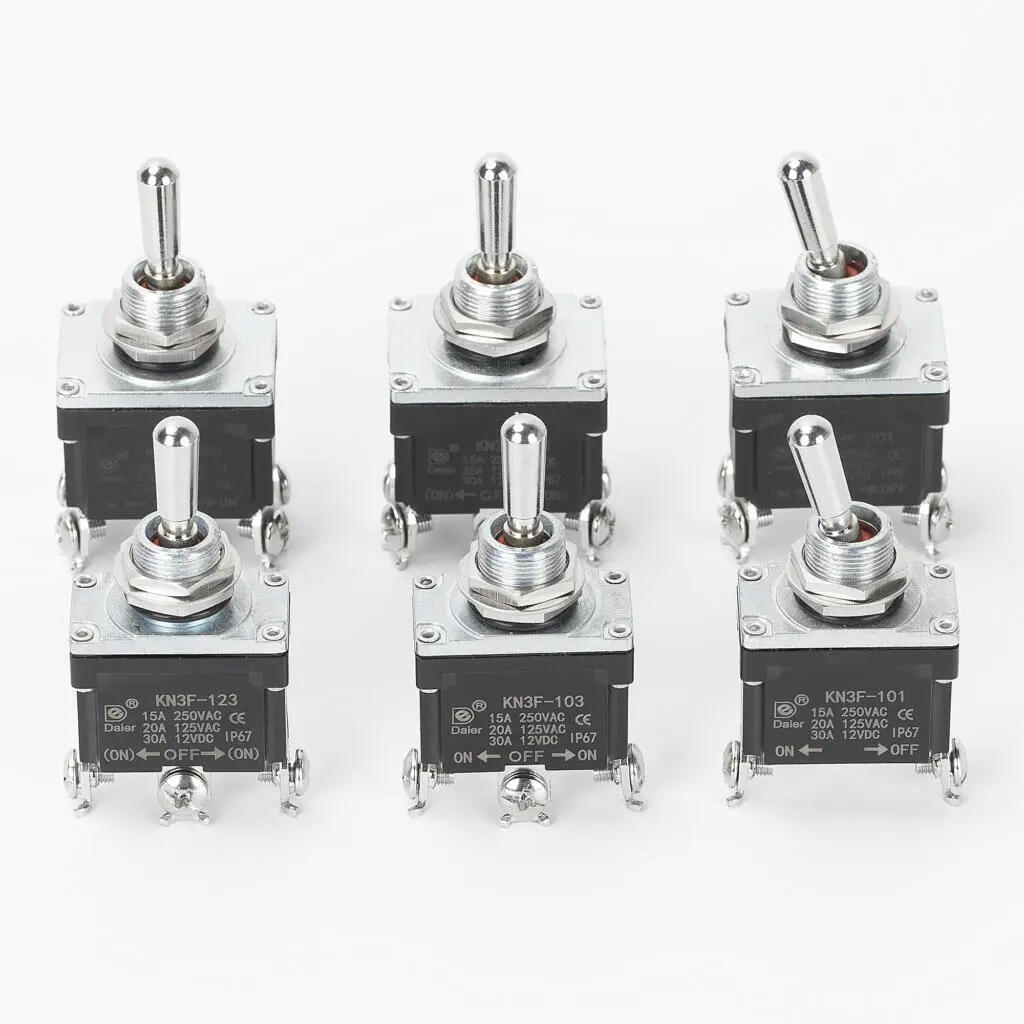

| KN3F-101 | 2-Pin, SPST, with Screw/Solder Terminal, ON-OFF |
| KN3F-103 | 3-Pin, SPDT, with Screw/Solder Terminal, ON-OFF-ON |
| KN3F-123 | 3-Pin, SPDT, with Screw/Solder Terminal, (ON)-OFF-(ON) |
| KN3F-201 | 4-Pin, DPST, with Screw/Solder Terminal, ON-OFF |
| KN3F-203 | 6-Pin, DPDT, with Screw/Solder Terminal, ON-OFF-ON |
| KN3F-223 | 6-Pin, DPDT, with Screw/Solder Terminal, (ON)-OFF-(ON) |
Daier IP67 Toggle Switch Series Technical Specifications
For those who require detailed technical information, here are the key specifications of the KN3F Series:
| Feature | Specification | Significance |
| Current Rating | 15A 250VAC, 20A 125VAC, 30A 12VDC | Ensures the switch can handle different voltage and current levels for various applications. |
| Rated Frequency | 50/60Hz | Compatible with standard power supplies globally. |
| Contact Resistance | 25 mΩ max. | Low resistance ensures efficient electrical conduction. |
| Insulation Resistance | 100 mΩ min. at 500VDC | High insulation resistance for safety and reliability. |
| Dielectrics Strength (Between terminals) | AC 1000V/min 50/60Hz for 1 min | High dielectric strength to prevent electrical breakdown. |
| Dielectrics Strength (Terminals and Groud) | AC 2000V/min 50/60Hz for 1 min | Enhanced safety in high voltage applications. |
| Ambient Air Temperature | 25T85 (-25℃ to 85℃) | Wide operating temperature range for diverse environments. |
| Ambient Humidity | 85% (5 to 35) | Reliable operation in high humidity conditions. |
| Electrical Life | 5E4 50,000 times min. | Long electrical life ensures fewer replacements. |
| Mechanical Life | 1E5 100,000 times min. | Durable mechanical design for extended use. |
| Protection Degree | IP67 | Superior protection against dust and water. |
| Operating Force max. | 24N | Optimal force required for operation ensures usability. |
| OEM or ODM | Available | Customization options for specific needs. |
| Certifications | CE | Compliance with European safety standards. |
Benefits of Choosing Daier IP67 Toggle Switches
Why choose Daier’s IP67 switches? Because they offer:
- Improved Reliability
Reduce downtime with switches that can withstand harsh conditions, ensuring continuous operation even in demanding environments.
- Longer Service Life
Enjoy reduced maintenance with switches designed for long-term use, thanks to their durable construction and rigorous testing.
- Versatility
Suitable for a wide range of applications, from industrial machinery to home automation, providing flexibility in design and use.
- Cost-Effectiveness
Benefit from long-term value with fewer replacements and repairs needed, lowering overall operational costs.
These benefits translate to tangible improvements in your operations, offering reliability and efficiency that standard switches can’t match.
Daier’s KN3F Toggle Switch Series Versatile Applications
- Industrial Automation: Reliable control for machinery and equipment.
- Marine & Boating: Waterproof switches that perform well in marine environments.
- Automotive & Transportation: Durable switches for automotive applications.
- Outdoor Lighting: Weather-resistant switches for outdoor lighting control.
- Home Automation: Versatile switches for smart home systems.
Each configuration caters to specific needs:
2-Pin Toggle Switches:
- Simple and Effective: Perfect for simple on/off control in a wide range of applications.
- Compact Design: Suitable for tight spaces where space is at a premium.
3-Pin Toggle Switches:
- Versatile Control: Offers ON-OFF-ON and (ON)-OFF-(ON) configurations for enhanced versatility.
- Ideal for Multiple States: Perfect for applications requiring multiple states, such as controlling multiple devices.
4-Pin Toggle Switches:
- Enhanced Functionality: Suitable for applications needing more complex control.
- Multiple Inputs/Outputs: Ideal for systems requiring multiple inputs or outputs.
6-Pin Toggle Switches:
- Ultimate Flexibility: Offers the most control options for demanding applications.
- Complex System Management: Perfect for complex systems requiring multiple switching points.
Why Choose Daier?
At Daier, we are committed to quality, reliability, innovation, and customer satisfaction. With over 20 years of experience in the industry, our expertise ensures that you receive the best products and support. Our dedicated team is always available to assist with any inquiries or needs you may have.
Ready to upgrade to reliable IP67 toggle switches? Contact Daier (sales1@chinadaier.com) today! Learn more about Daier’s IP67 toggle switch series.
