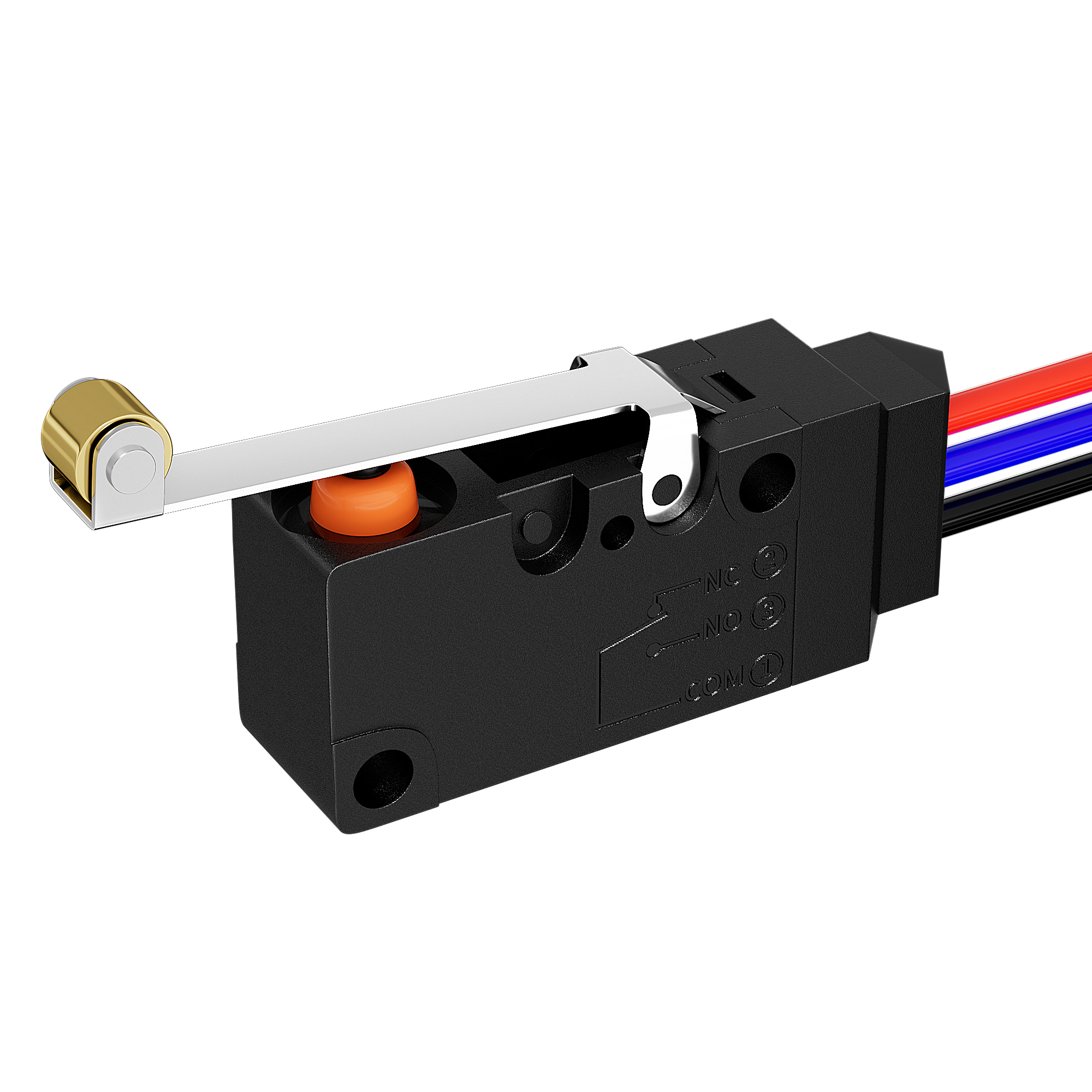

WS2-Z5-W200200 SPDT 3 Pin 125/250V 10A Micro Limit Switch with Long Roller

Part#WS2-Z5-W200200

The IP67 125/250V 10A micro limit switch is a SPDT 3 Pin model with a removable lever and the pre-wired design simplifies installation.

This waterproof micro switch boasts an IP67 rating, ensuring reliable performance in diverse environments.

WS2-Z5-W200200 125/250V 10A  Micro Limit Switch Details

  • Versatile Limit Switch Type

This micro limit switch is an SPDT 3 Pin model, with a configuration of 1 COM, 2 NC, and 3 COM, and a robust rating of 10A at 125/250V.

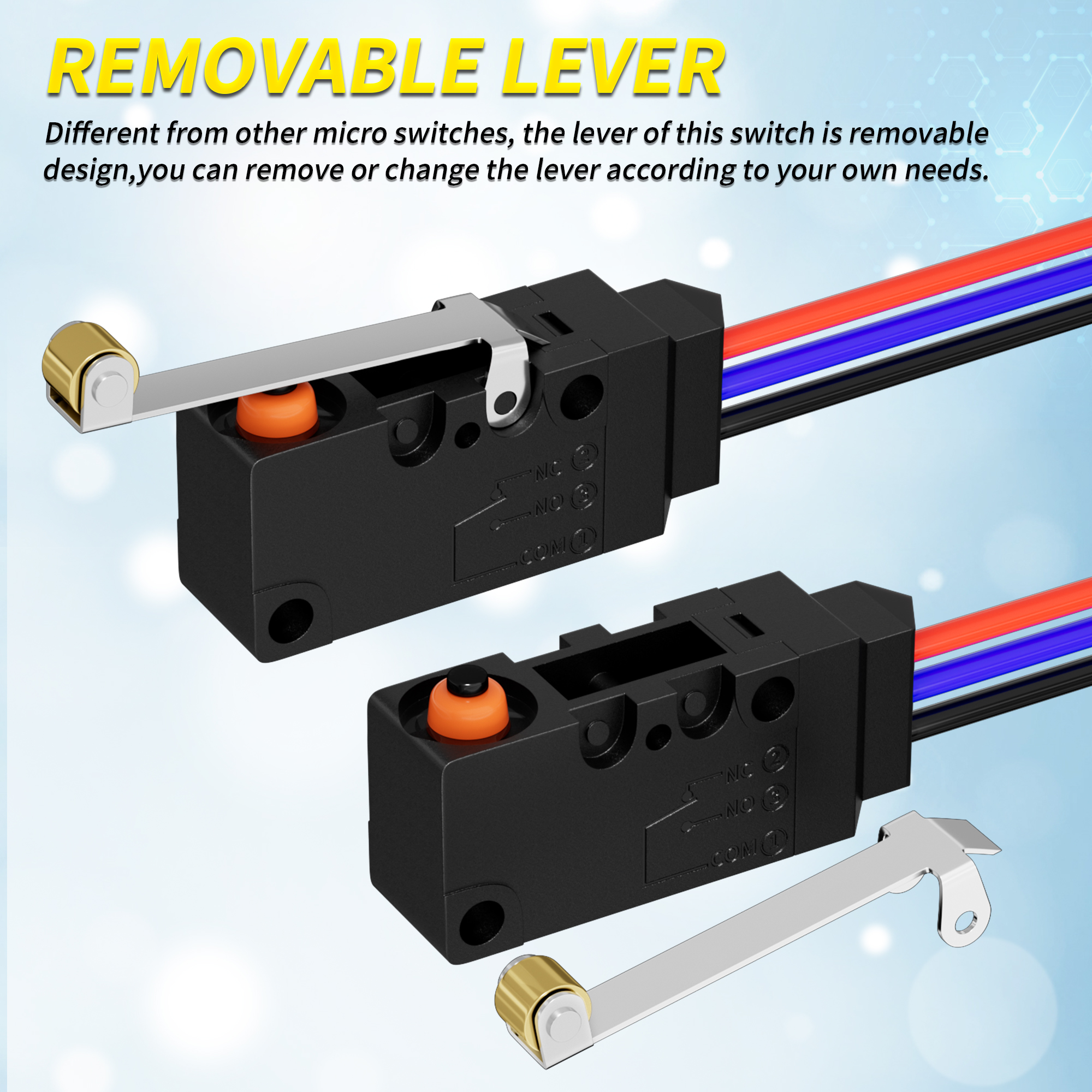

  • Customizable Lever

What sets this microswitch apart is its removable lever design. Unlike other microswitches, the lever can be detached and replaced according to your specific requirements.

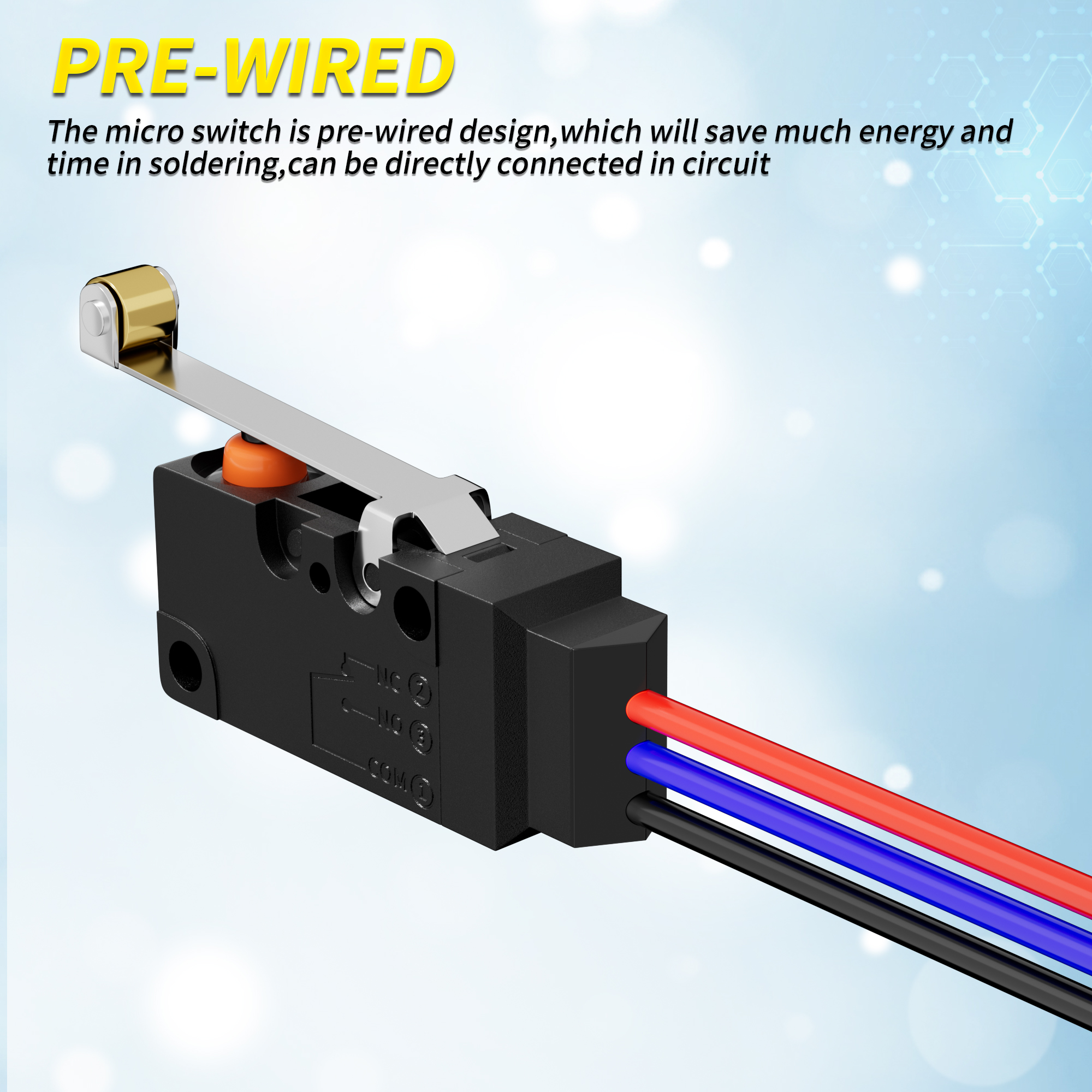

  • Convenient Pre-Wiring

Featuring a pre-wired design, this micro momentary on-off switch eliminates the need for soldering. It can be effortlessly integrated into your systems, saving you valuable time and effort.

  • Waterproof Reliability

With an IP67 waterproof rating, this limit lever switch is engineered to excel in various environments. Its waterproof design ensures safety and reliability in both indoor and outdoor applications.

  • Wide Range of Applications

Thanks to its waterproof construction, this micro switch is suitable for a broad spectrum of applications. It can be confidently used in CNC systems, household appliances, DIY projects, and more, making it incredibly versatile.

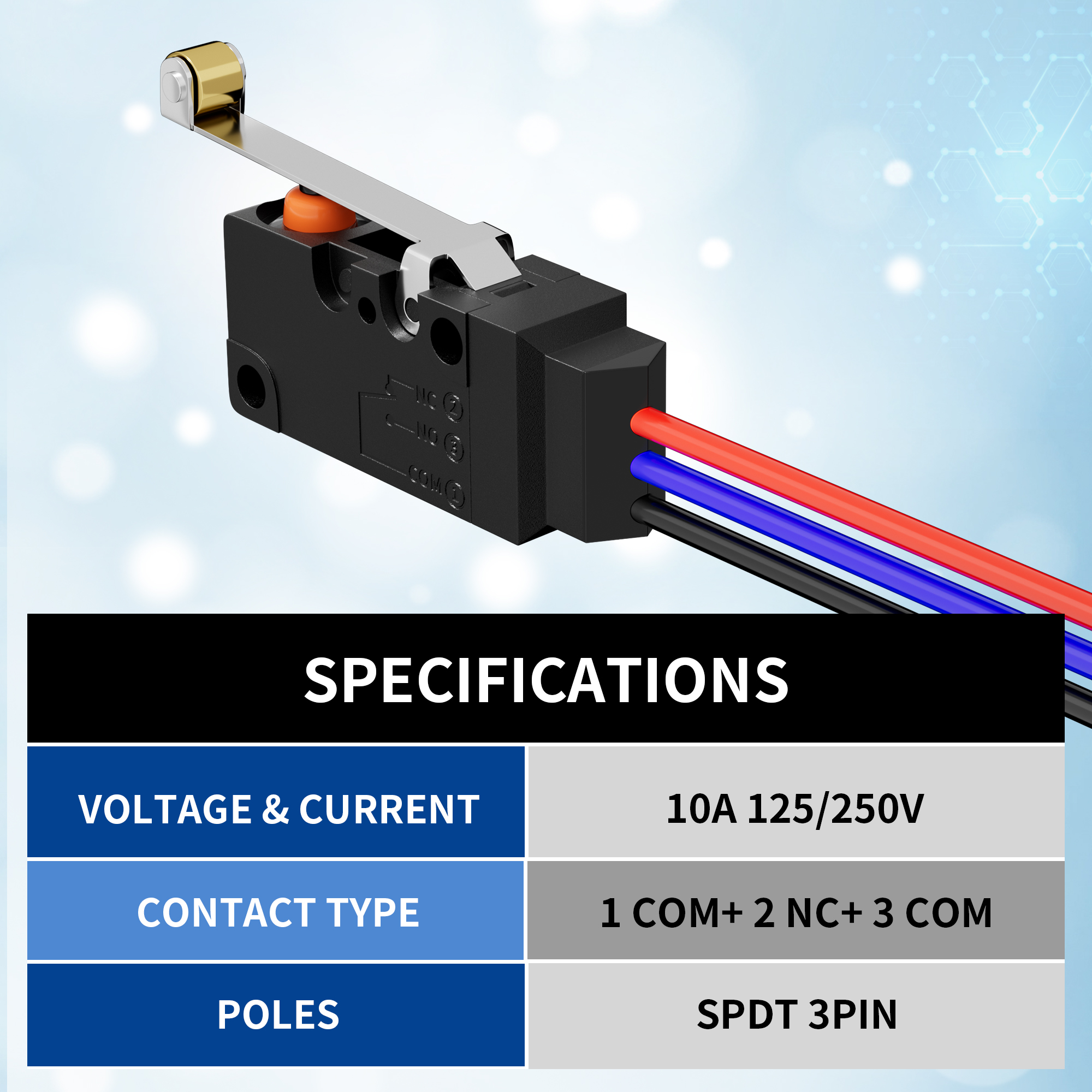

WS2-Z5-W200200 125/250V 10A  Micro Limit Switch Details

Rating 10A 125/250V
Function SPDT
Contact Type 1 COM+ 2 NC+ 3 COM
Lever Type Roller Lever
Protection IP67 Waterproof; Dustproof
Wire Length 200MM

If you have any unanswered questions about the product or would like more information, we encourage you to reach out to us via email at sales1@chinadaier.com or through our live chat. We are here to assist you and provide the information you need.
