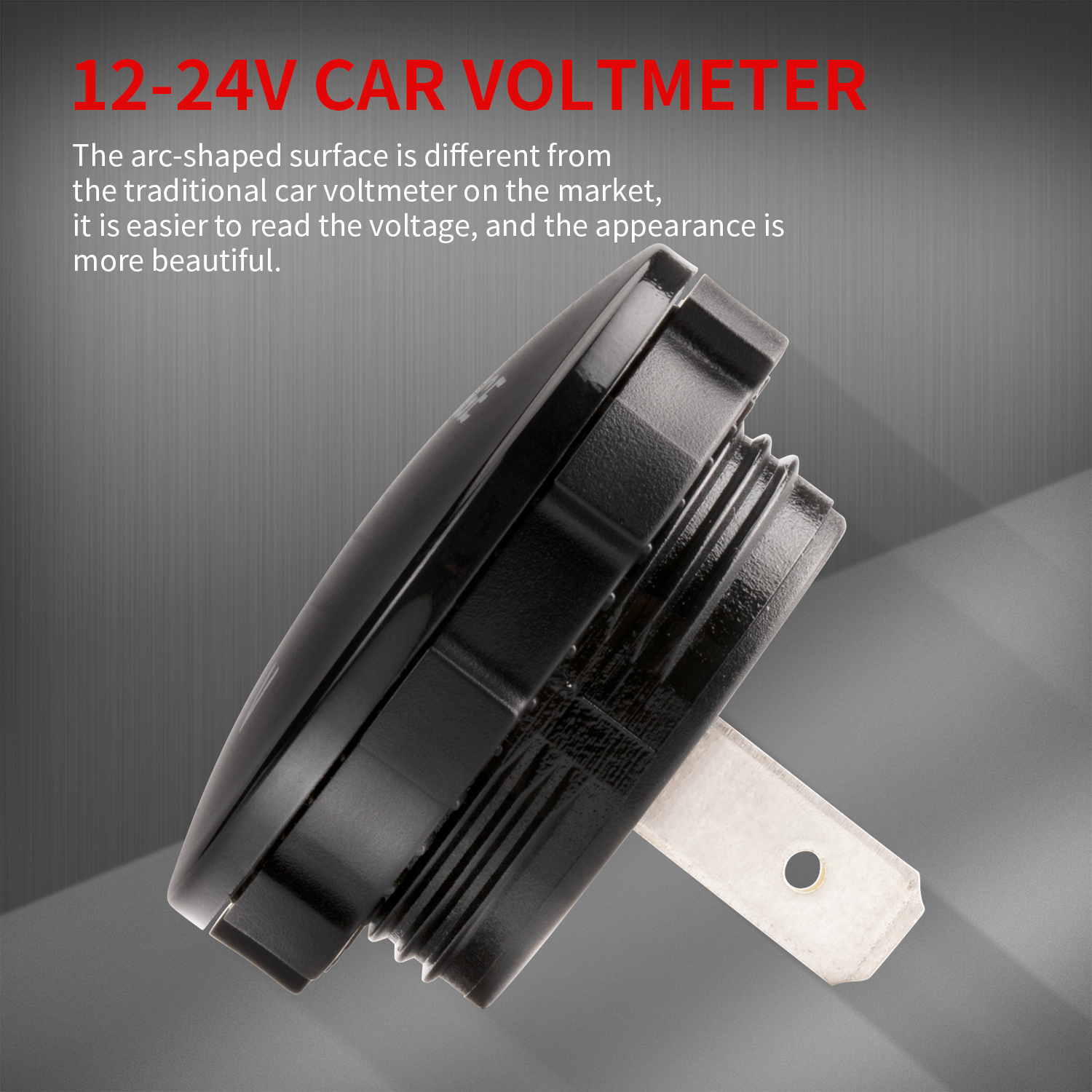

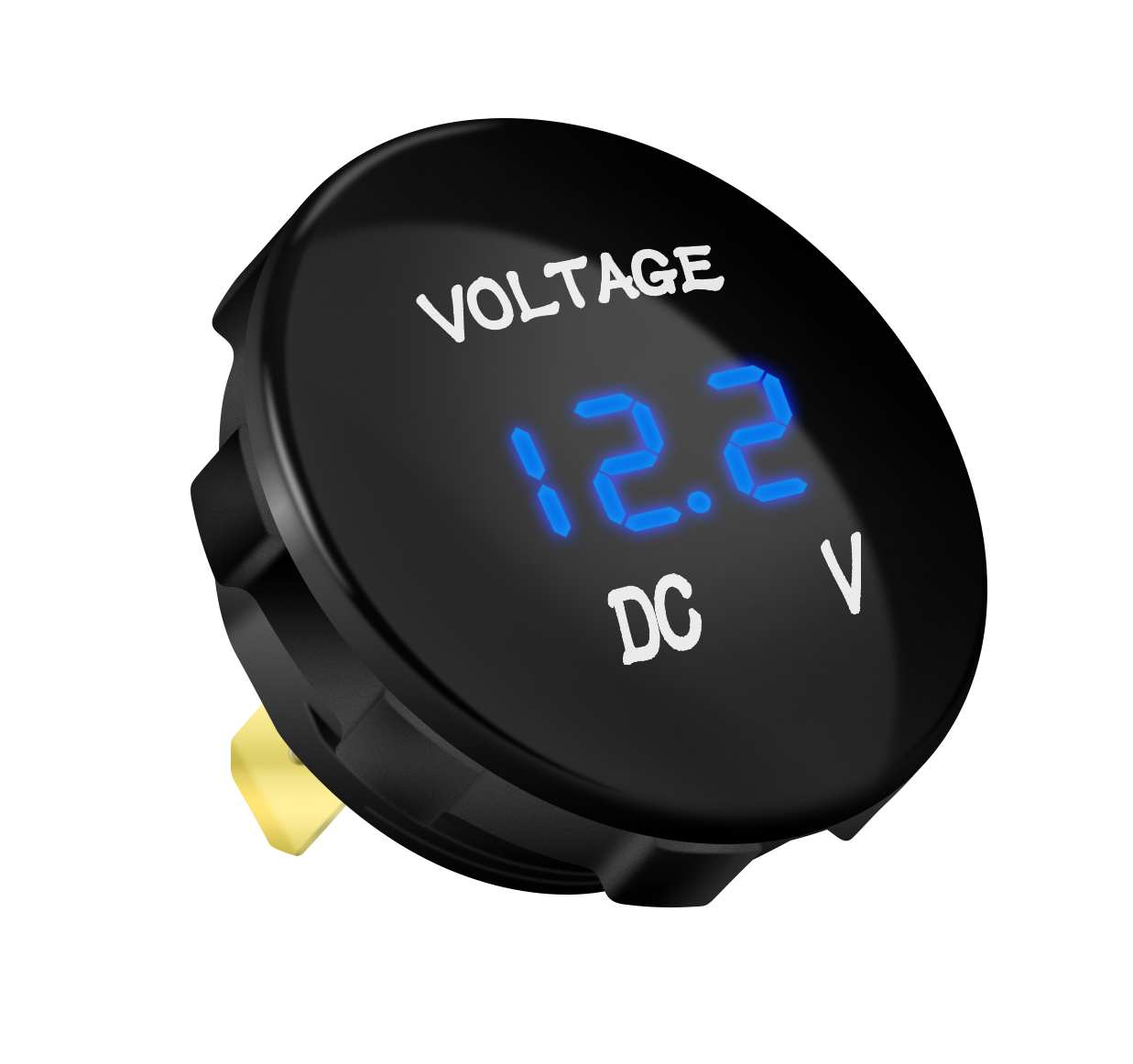

DS4010W Auto 12V 24V Waterproof LED Digital Display Car Voltmeter

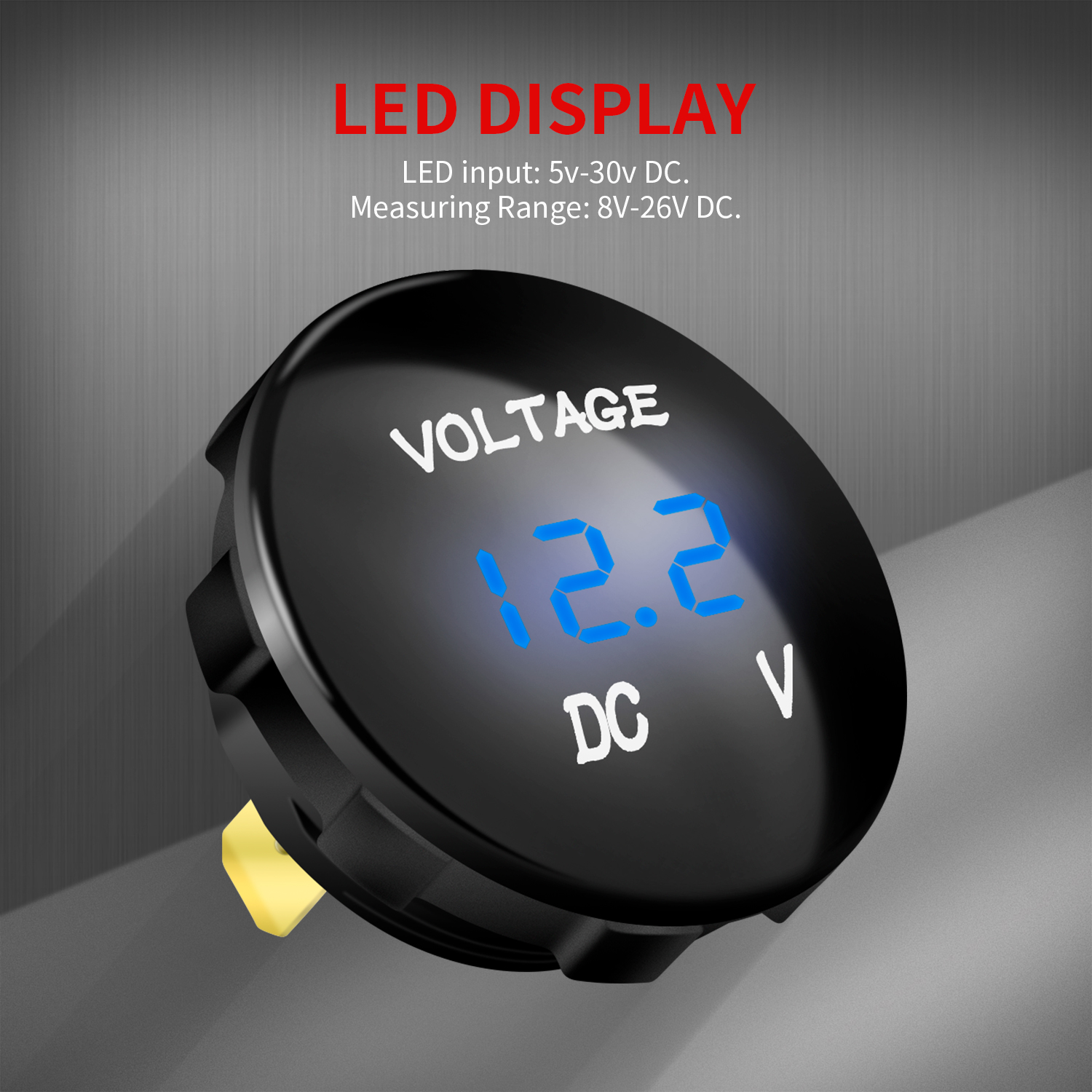

The LED Digital Display Car Voltmeter DC 8-48V, Accuracy: 0.1V. Widely used under DC 12V 24V with LED Digital Display, Work great to Test Battery Voltage.

This 12-volt LED digital display car voltmeter has a waterproof design that mounts in a 1 1/8-inch hole in the panel, and a nylon retaining nut secures the meter in place.

Category :

Car USB Charger

DS4010W Waterproof Voltmeter

DS4010W Waterproof Voltmeter is a selection of high-quality plugs, sockets, adapters, and accessories. It is suitable for automotive, motorbike and marine markets. Our range includes waterproof USB sockets, waterproof car cigarette lighter, power outlets for charging and powering devices with a variety of fixing options. What’s more, it’s as well as several universal DIN and cigar lighter plugs where the red adapter can be removed to use as a DIN power plugs. Furthermore, it’s also known as Hella plugs as frequently found on motorbikes and scooters.

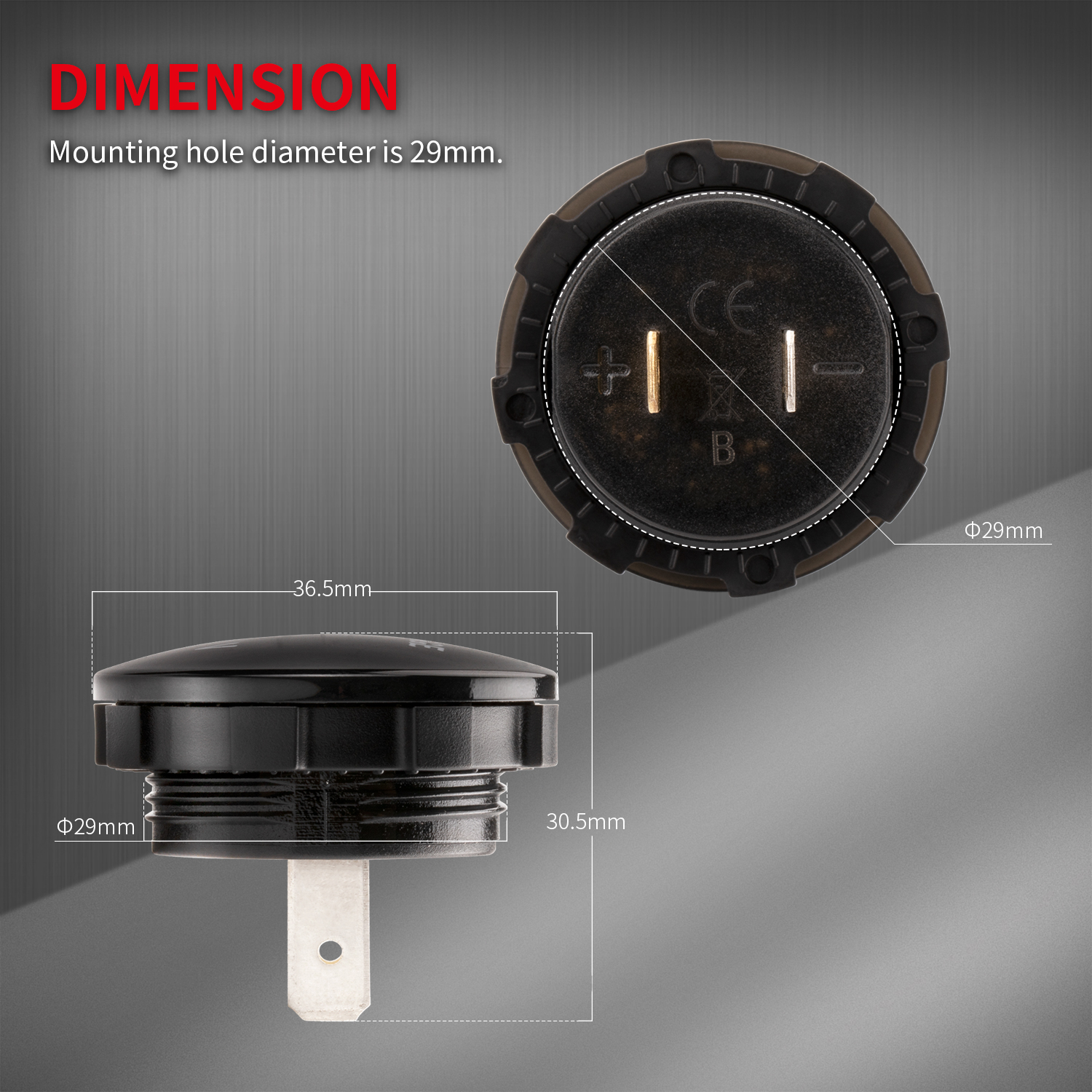

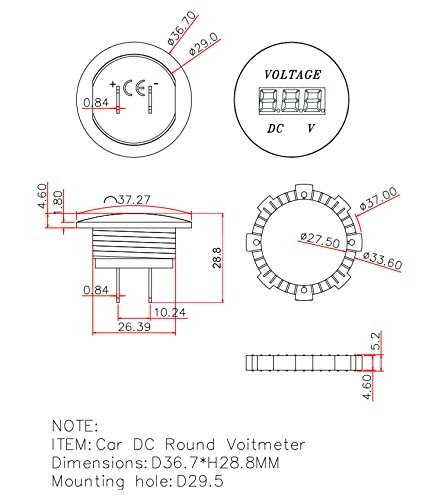

12V / 24 Volt marine and automotive digital waterproof voltmeter with LED display. Supplied with fixing nut for through-hole mounting. Recommended mounting hole size 29mm. Supplied with 6.35mm tab terminals for electrical installation. RoHS. Suitable for marine, motorcycle or other automotive use. Can be dashboard mounted.

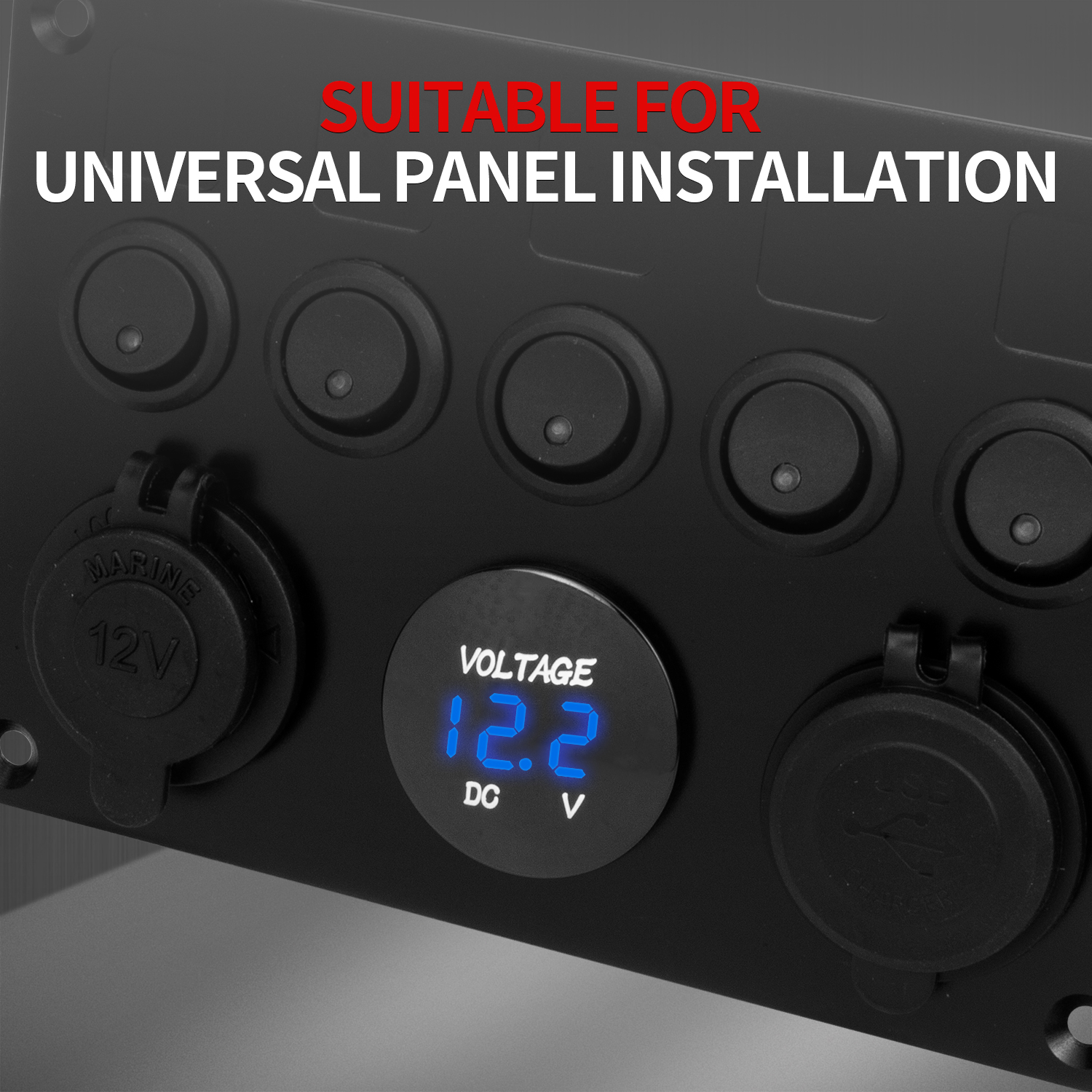

Universal for: Automotive, Motorbike and Marine Markets

It works for 12V-24V. Mini size and easy to install.

The meter has easy to read LED segments and connect to your 12-volt system.


If you want to buy other high-quality product, choose waterproof push button switch from chinadaier.com. It endeavors to provide the best products for you.

Pls Check LED Digital Display Car Voltmeter Datasheet Below

Rating: 5-30V Waterproof Grade: IP67
Contact Resistance: 35mΩ max Operating Temperature: -40℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
