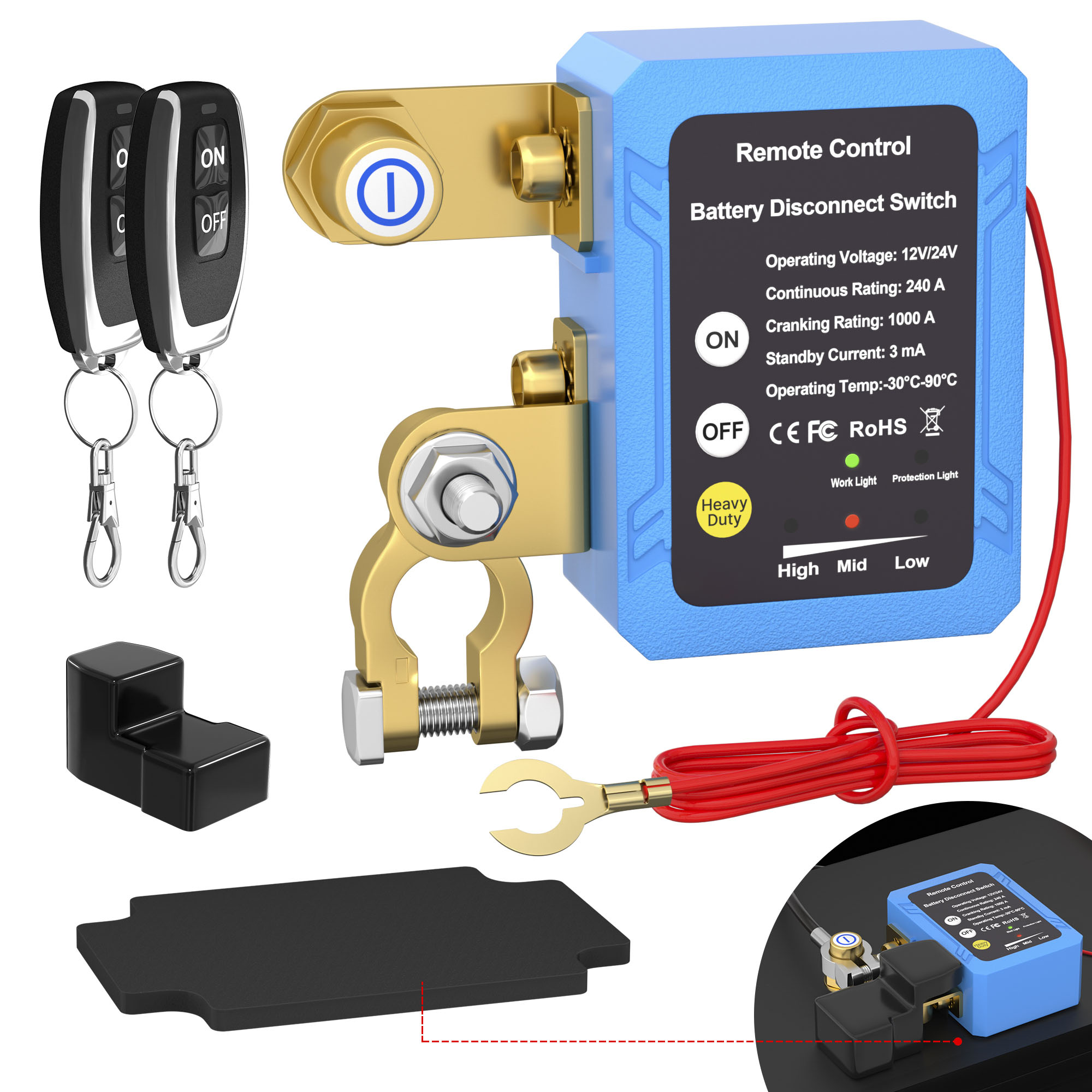

RL-240A-RCM2 12V 240A Automatic Remote Control Battery Disconnect Switch

RL-240A-RCM2 12V 240A Automatic Remote Control Battery Disconnect Switch Details

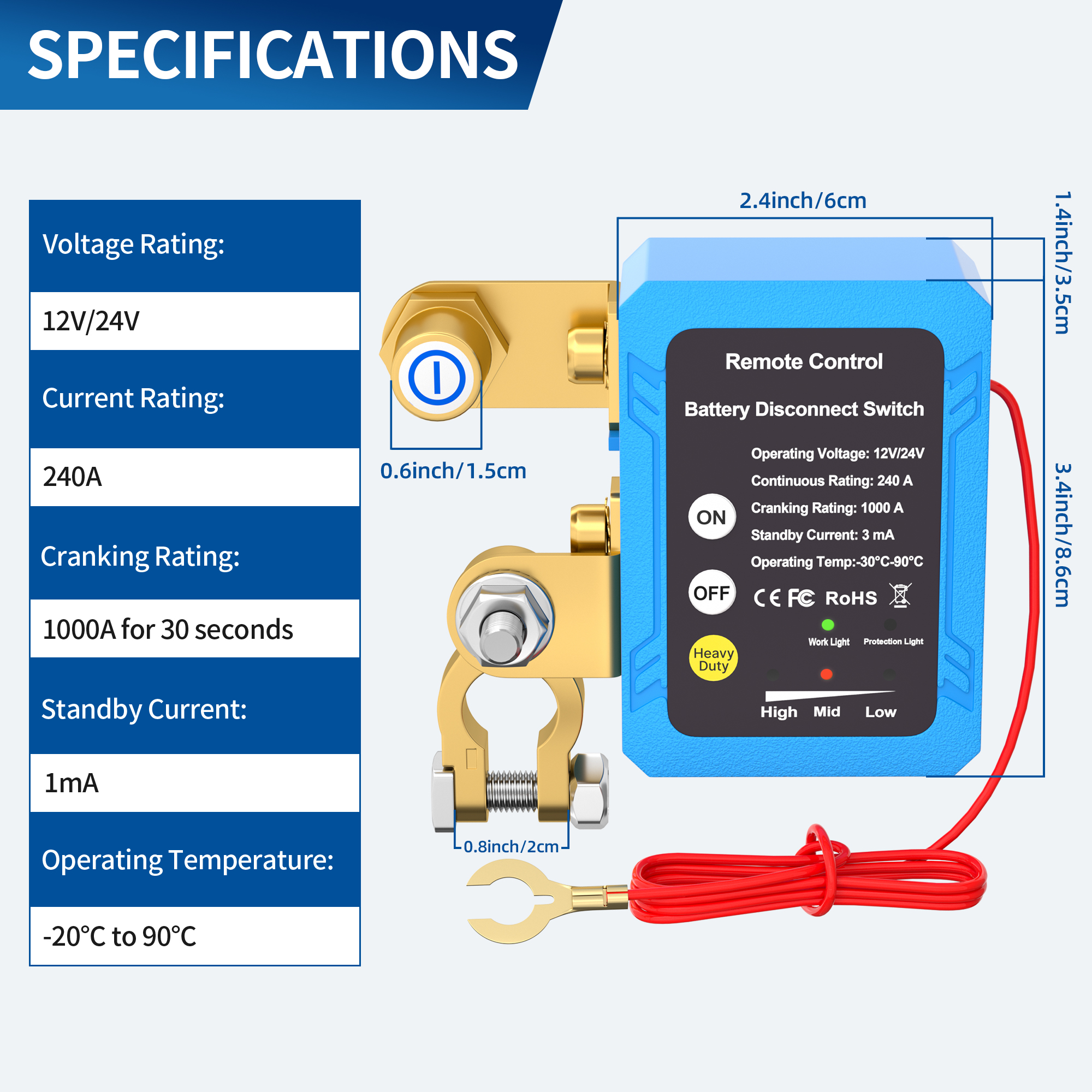

• Detailed Specifications

This battery disconnect switch boasts impressive specifications including a rated current of 240A, a rated voltage of 12V, a standby power consumption of just 3mA, and power-off thresholds at 11.8V±0.2V. It can handle instantaneous currents of up to 500A.

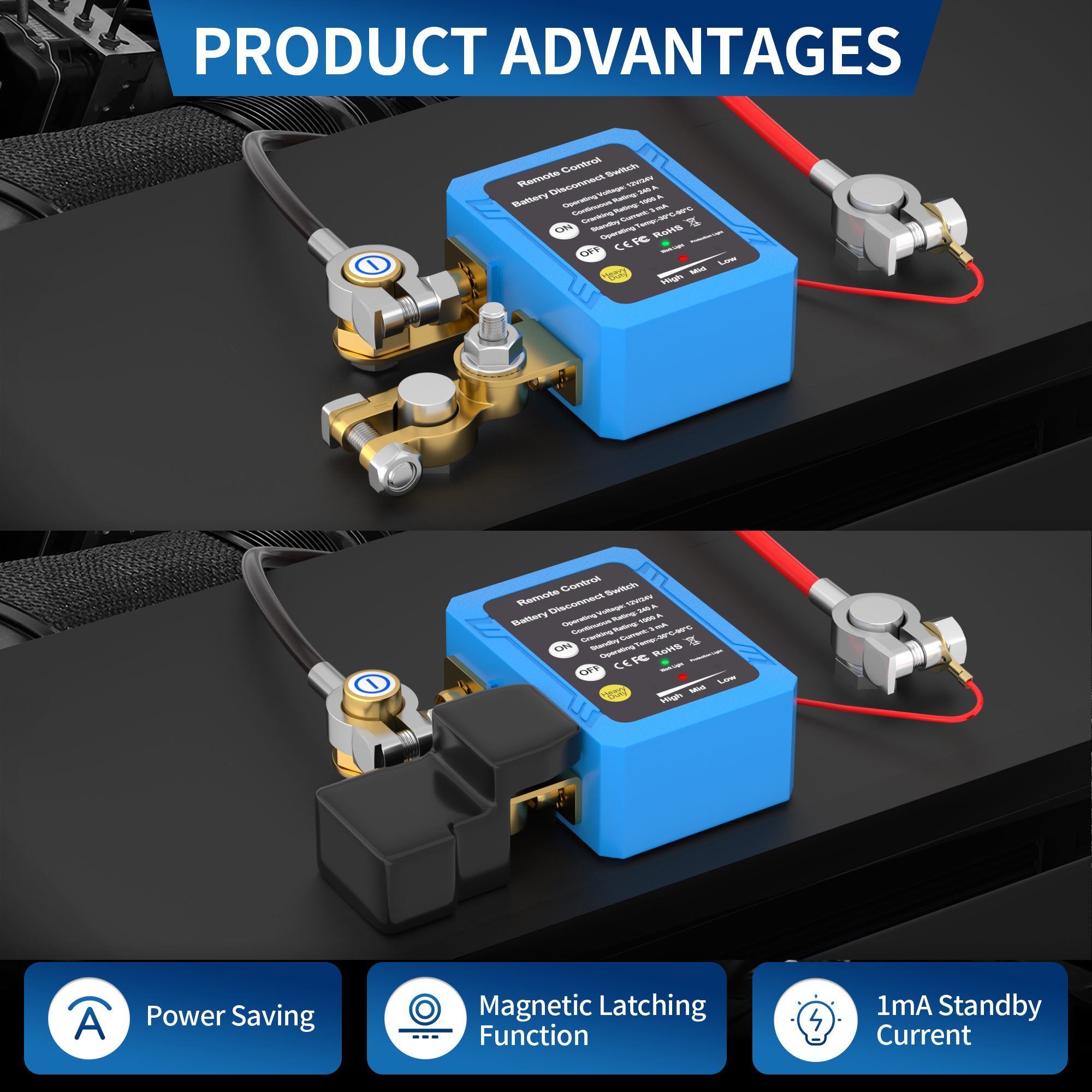

• Innovative Magnetic Latching

Unlike conventional methods, this car kill switch employs an innovative magnetic latching relay for circuit control, resulting in a minimal standby current of 3mA, which is incredibly energy-efficient.

• Automatic Power Cut-Off

To protect your battery, this remote control battery disconnect switch is designed to automatically cut power when the voltage drops below 11.8V. It delays the power cut for 120 seconds to save electricity. If the voltage exceeds 13.2V, the remote control is temporarily disabled to prevent accidental power disruption while driving, ensuring control via the switch’s button.

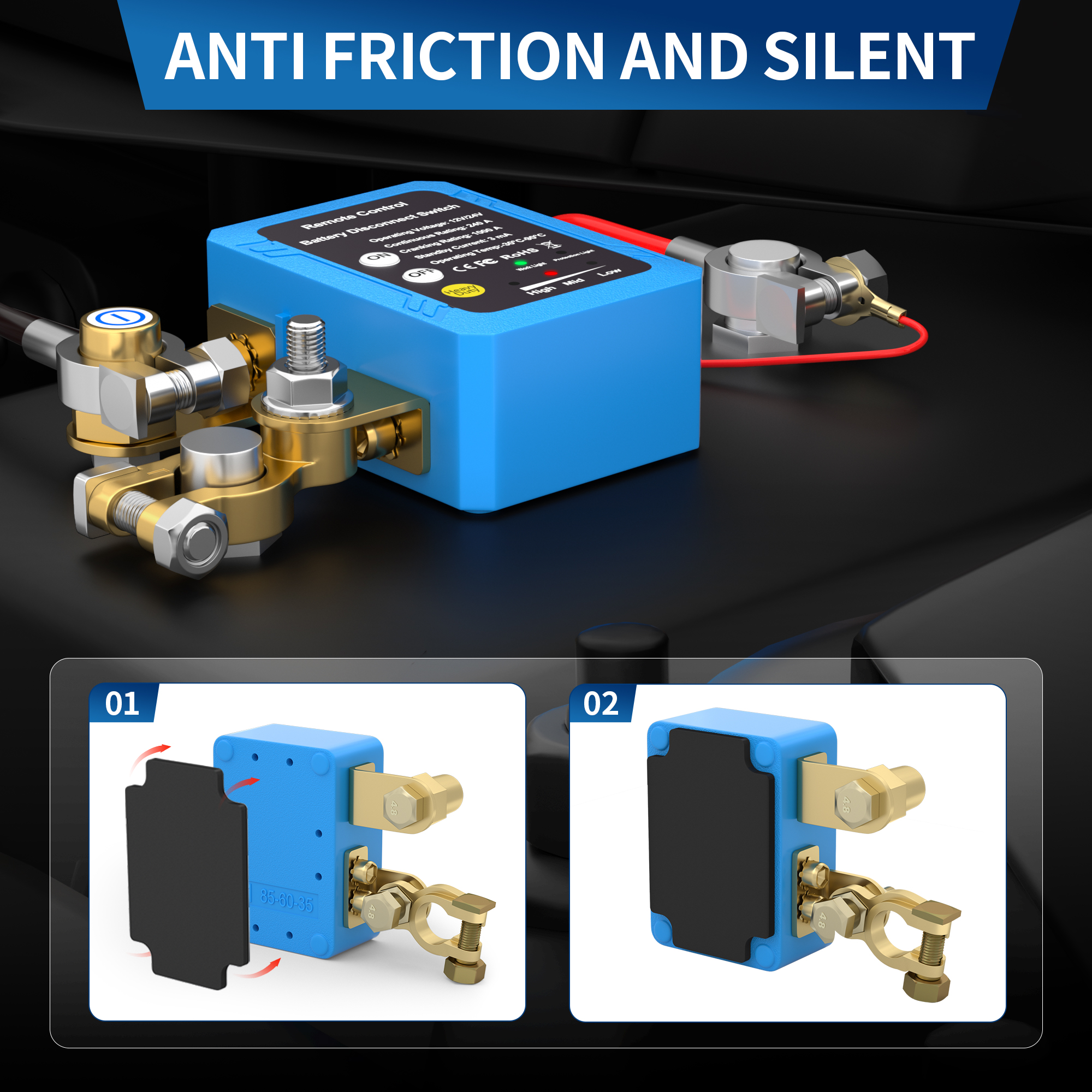

• User-Friendly Installation

This power shut-off switch uses a negative connection for added stability. Remember to turn off the power before installation for safety.

• Battery Protection

By employing this car battery kill switch, you can prevent power loss due to long-term parking, eliminate electronic equipment issues, prevent wiring degradation, and avoid accidentally leaving lights on. The result is effective battery protection and an extended battery life.

RL-240A-RCM2 12V 240A Automatic Remote Control Battery Disconnect Switch Datasheet

RL-240A-RCM2 Remote Control Battery Disconnect Switch Wire Diagram
