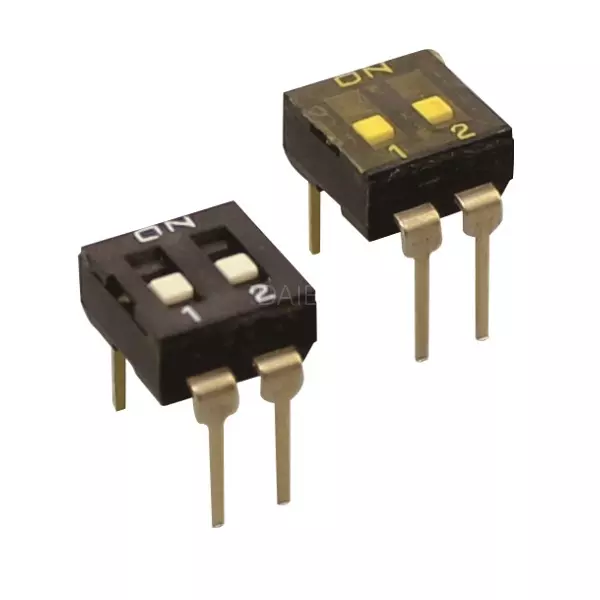

DI-F01 piano type switch:
Daier series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. Daier DIP switches are available in surface mount, through-hole, right angle and vertical mounting options.
Most Daier miniature and ultraminiature DIP switches are process sealed for automated assembly (some require tape seal) and are available in SMT and thru-hole termination.
Our large selection includes surface mount, through-hole, rotary, standard and half pitch, and multiple actuator designs. Consistent high contact pressure is achieved with a spring and ball contact system on select series. Other features include a low-profile, miniature versions, standard base seal, optional top-tape seal and also tape and reel packaging. Our DIP switch can be customized for your specific application.
The DI-F01 piano type switch related product, pls check the detailed information as below:
Pls check the datasheet below:
|Contact Rating:||100mA 50VDC||Electrical Life:||2,000 cycles per position|
|Terminal:||Brass with gold plated||Contact Resistance:||500mΩ max|
|Dielectric strength:||500VAC 1 minute||Mechanical Life:||≥ 100,000 Cycles|
|Insulation Resistance:||100mΩ min (500VDC)||Operating Temperature:||-25℃~+85℃|
