PBS-33B Waterproof 12mm Momentary Mini Round Push Button Switch with Pre-Wired

Part#PBS-33B

The 12mm round push button switch with pre-wired features a 12mm mounting cut hole, 17.5mm head diameter, and a robust 3A/125V AC rating.

With a sophisticated design, easy installation and available in a variety of colors, this switch is your choice for seamless control.

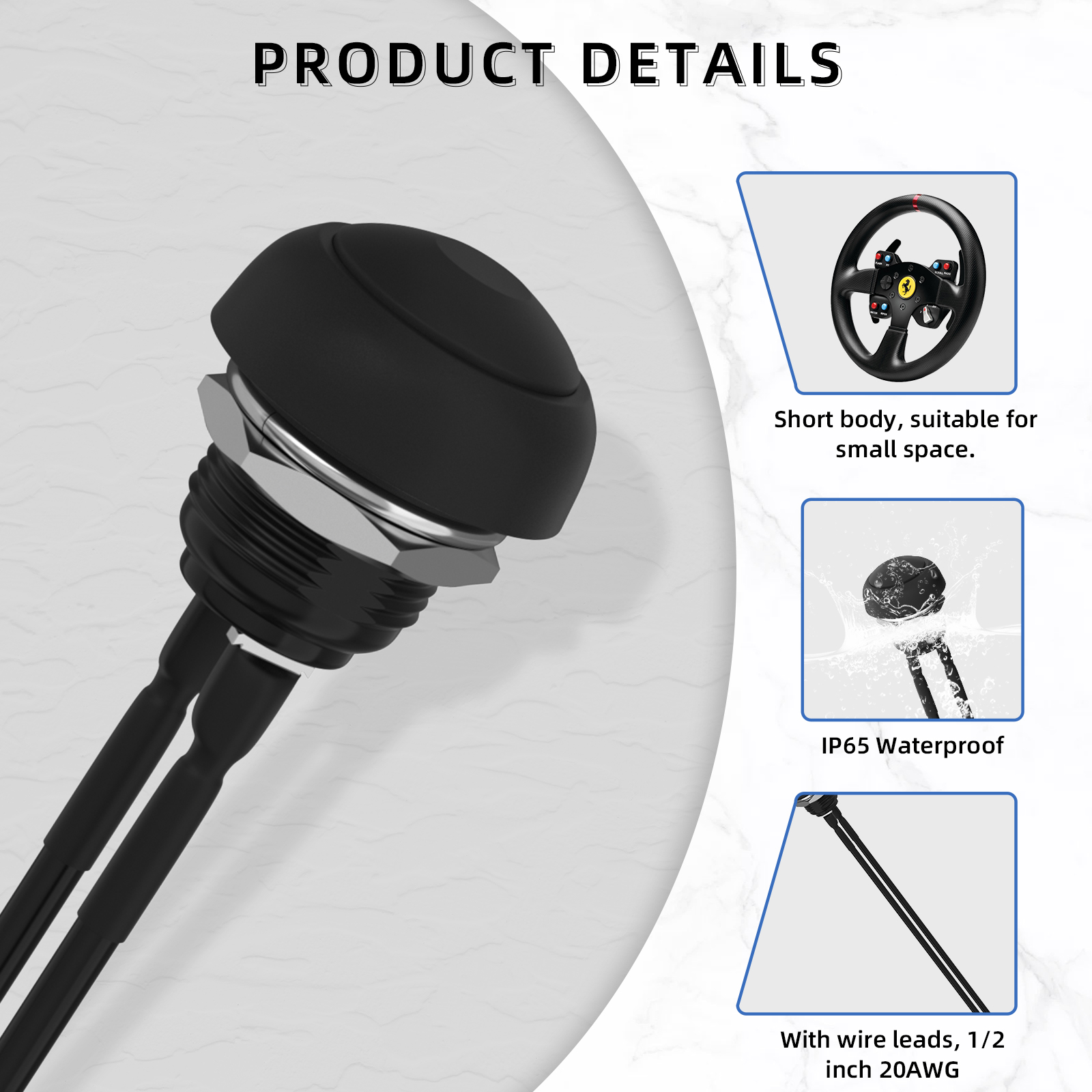

PBS-33B Waterproof 12mm Momentary Mini Round Push Button Switch with Pre-Wired Details

  • Versatile Momentary Operation

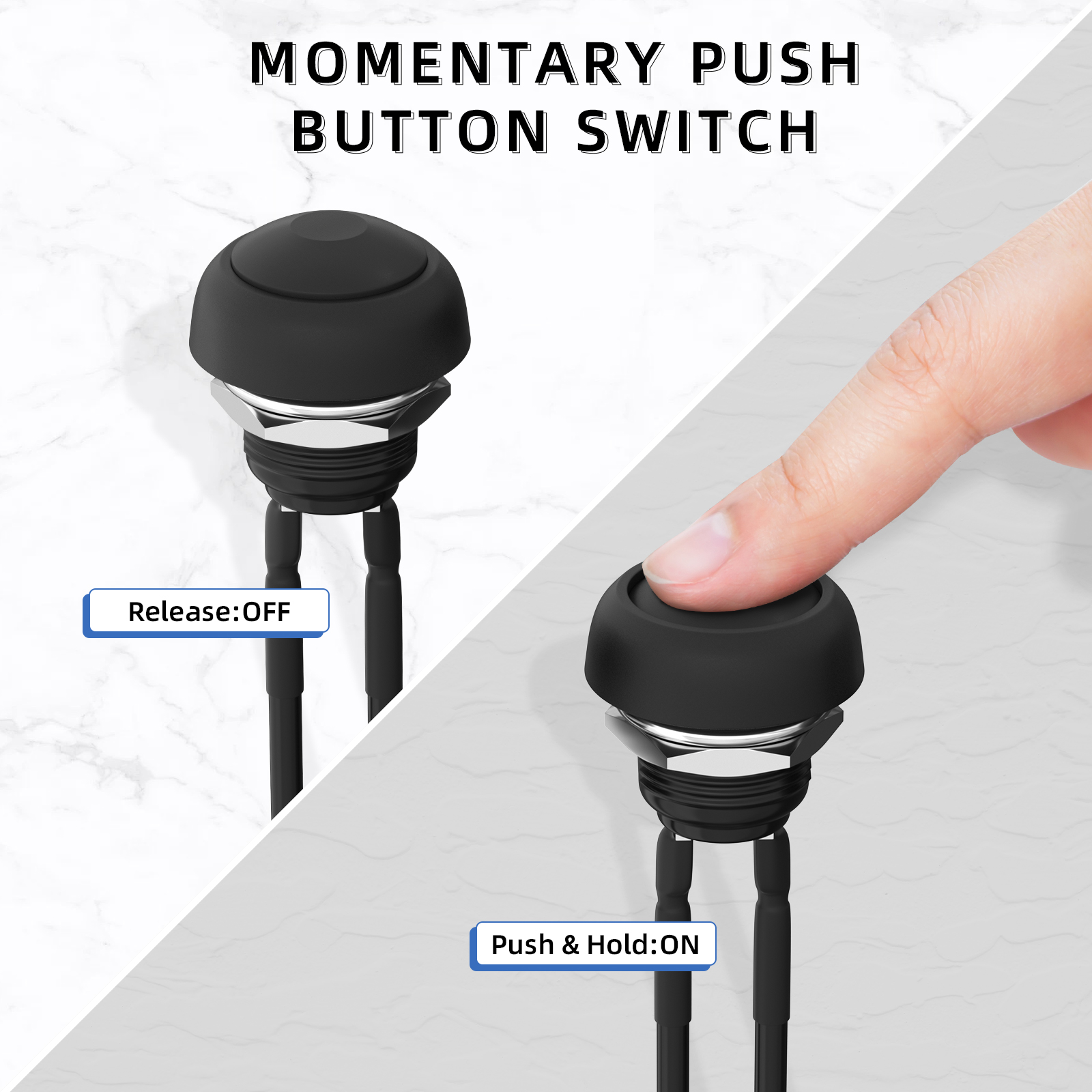

The waterproof 12mm mini round push button switch is engineered for momentary functionality. Simply push and hold to turn it ON, and release to turn it OFF. This feature provides precise control in various applications.

  • Effortless Installation:

With its pre-wired design, this push button switch is exceptionally easy to install, eliminating the need for complex wiring. This saves time and reduces unnecessary costs associated with additional components.

  • Precision Engineering

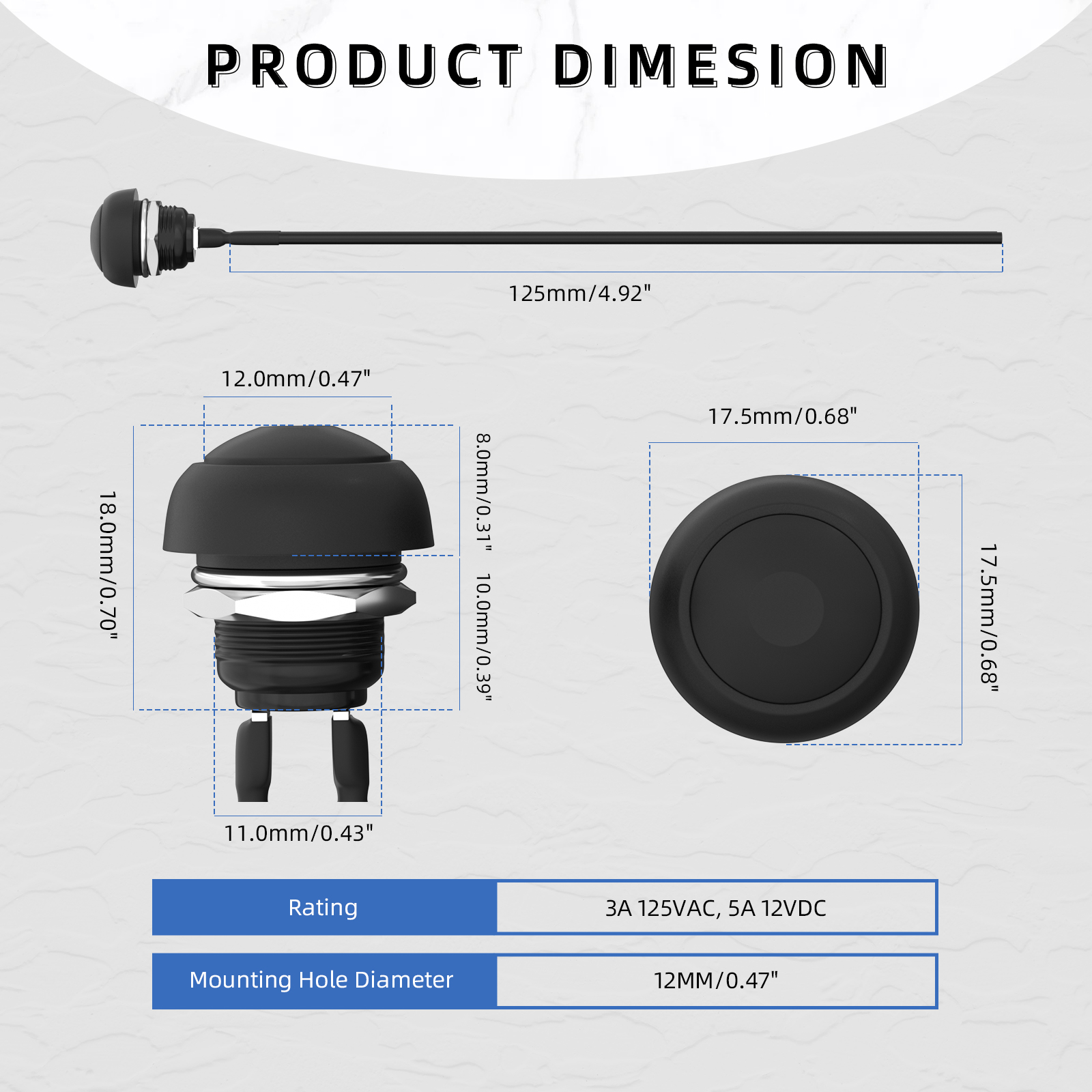

Designed with a 12mm mounting cut hole and a head diameter of 17.5mm, this mini round push button switch fits seamlessly into a range of equipment and control panels, ensuring a neat and professional appearance.

  • Reliable Performance

The switch boasts a commendable rating of 3A at 125V AC, guaranteeing reliable and efficient operation. Additionally, it features a contact resistance of 20MΩ, further enhancing its performance and longevity.

  • Variety of Options

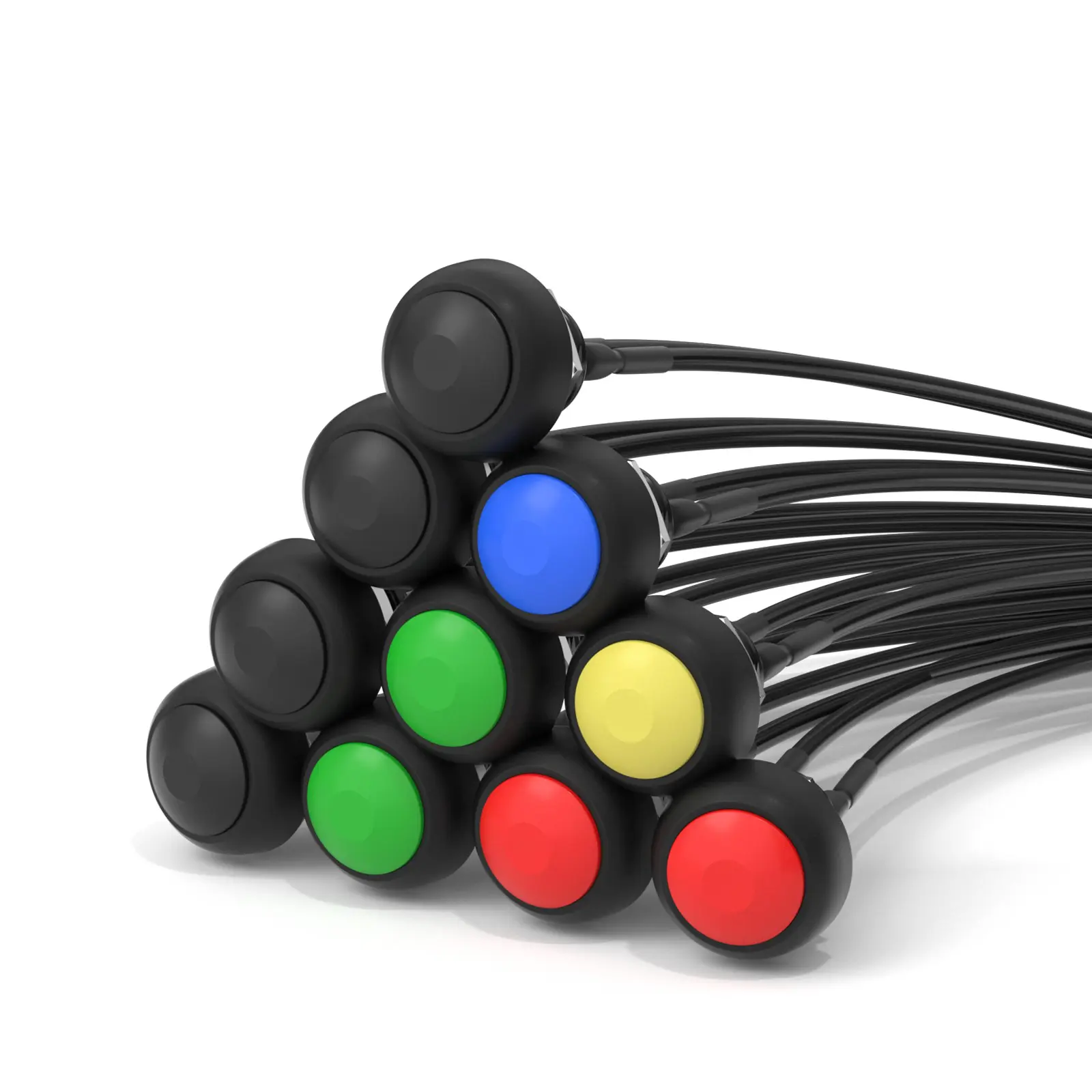

Choose from a selection of colors including Black, Red, Green, Blue, and Yellow to suit your specific application needs. Each switch comes with a 110mm/4″ welding line for added convenience. The package includes six Black Reset Switch Push Buttons, making it an economical choice for your projects.

PBS-33B 12mm Momentary Mini Round Push Button Switch Datasheet

Rating: 1A 250VAC Contact Resistance: 100mΩ max
Electrical Life: ≥ 10,000 Cycles Function: OFF-(ON)
Dielectric strength: 500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available

If you have any unanswered questions about the product or would like more information, we encourage you to reach out to us via email at sales1@chinadaier.com or through our live chat. We are here to assist you and provide the information you need.
