Comprehensive Guide to DC Busbars: Empowering Your Electrical Systems
- April 19, 2024
- 279
In the intricate world of DC electrical systems, where efficiency and organization are paramount, busbars emerge as the unsung heroes of power distribution. Whether you’re navigating the vast expanse of the ocean, embarking on an RV adventure, harnessing the sun’s energy, or powering specialized vehicles, busbars offer a streamlined and elegant solution to manage the flow of electricity.
Imagine a centralized hub where positive and negative connections converge seamlessly, eliminating the tangled web of wires often found in DC systems. That’s the essence of a busbar – a conductive pathway designed to simplify connections and distribute power efficiently across multiple circuits.
Why Choose Busbars over Traditional Wiring?
The advantages of embracing busbars extend far beyond mere aesthetics:
- Conquering Cable Clutter
Busbars can simplify cable management, making it easier to troubleshoot, maintain, and upgrade systems by organizing messy wiring into an orderly arrangement.
- Unleashing Conductivity
12-48V busbars are made from highly conductive metals such as copper, often tinned for improved performance, to minimise resistance to current flow, ensure efficient power supply and reduce voltage drop.
- Safety Amplified
By consolidating connections and providing designated attachment points, busbars minimize the risk of accidental short circuits and enhance overall system safety.
- Space Optimization
The compact and versatile design of busbars is ideal for applications where space is at a premium, such as in boats, RVs, and compact electrical enclosures.
Demystifying DC Busbars: Essential Knowledge for Empowered Decisions
Before embarking on your busbar journey, let’s equip you with the knowledge to make informed decisions tailored to your specific needs:
- Material Matters: The Foundation of Conductivity and Durability
DC busbars are predominantly constructed from high-quality copper, renowned for its exceptional conductivity. Often, they are further enhanced with tin plating to bolster corrosion resistance, ensuring longevity and optimal performance even in challenging environments.
- Design and Configurations: Tailored to Your Circuitry Needs
Busbars come in a variety of sizes and configurations, featuring multiple connection points or studs to accommodate a range of circuit requirements. They typically incorporate robust insulating materials like nylon or polycarbonate to prevent accidental contact and ensure electrical safety.
- Current Rating and Voltage Drop: The Pillars of Efficient Power Delivery
To select the appropriate busbar for your system, you need to have a clear understanding of its current demands. Every busbar has an ampacity rating that specifies the maximum current it can safely handle without overheating. You should also take into account voltage drop, which is the reduction in voltage as current flows through a conductor. It is important to choose a busbar with sufficient current carrying capacity and minimize voltage drop to ensure efficient power delivery to your devices. This will help prevent performance issues and potential damage.
Applications Across Diverse Landscapes: Where Busbars Shine
The versatility of DC busbars makes them invaluable across a multitude of applications:
- Marine Electrical Systems: Navigating with Confidence
Boats and marine vessels rely on robust electrical systems for navigation, communication, lighting, and a variety of onboard equipment. DC busbars offer a space-saving and reliable solution for connecting batteries to these multiple circuits, while their corrosion-resistant properties ensure long-lasting performance in the harsh marine environment.
- RV and Camper Power Distribution: Enhancing Comfort and Convenience
RVs and campers require efficient power distribution to run appliances, lighting, entertainment systems, and more. Busbars offer a clean and organized way to manage these circuits, simplifying installation and troubleshooting while maximizing available space. Their compact design is particularly advantageous in the confined quarters of RVs and campers.
- Off-Grid and Solar Power Systems: Harnessing Sustainable Energy
Solar power systems and other off-grid setups depend on reliable power distribution from energy sources like solar panels to batteries, inverters, and various loads. DC busbars serve as the central nervous system of these systems, ensuring efficient energy flow and system stability, even in remote locations where grid power is unavailable.
- Specialty Vehicles and Beyond: Powering Innovation
From emergency vehicles and food trucks to mobile workshops and custom projects, DC busbars provide a reliable and adaptable solution for any application requiring organized and efficient power distribution. Their versatility and adaptability make them a valuable asset in powering innovation across diverse industries.
Choosing the Perfect Busbar: A Tailored Approach to Your Power Needs
Selecting the ideal busbar involves a thoughtful consideration of several key factors to ensure optimal performance and compatibility with your specific requirements:
- Current and Voltage Requirements: Matching the Busbar to Your System
Calculate the total current draw of your DC system by summing the amperage requirements of all connected devices. Choose a busbar with an ampacity rating exceeding this value to prevent overloading and ensure safe operation. Additionally, ensure the busbar’s voltage rating aligns with your system voltage (e.g., 12V, 24V, 48V) to maintain compatibility and prevent damage to your equipment.
- Number of Circuits: Planning for Expansion and Flexibility
Determine the number of individual circuits you need to connect and select a busbar with a sufficient number of connection points or studs to accommodate them all. Consider potential future expansions and choose a busbar with additional capacity to allow for future growth and modifications to your system.
- Mounting Options and Space Optimization: Adapting to Your Environment
Evaluate the available space and mounting locations within your application. Busbars offer versatile mounting options, including surface mounting, or panel mounting, allowing you to adapt to your specific environment and maximize space utilization. Choose the mounting style that best suits your needs and ensures a secure and accessible installation.
Installation Best Practices: Ensuring Safety and Long-Term Performance
Installing a DC busbar is a straightforward process, but prioritizing safety and adhering to best practices is crucial for optimal performance and longevity:
- Safety First: Protecting Yourself and Your Equipment
Always disconnect power sources before working on electrical systems to prevent electrical shock and potential hazards. Utilize insulated tools and wear appropriate safety gear, including safety glasses and gloves, to protect yourself during the installation process.
- Connection Techniques: Ensuring Secure and Reliable Connections
Use the appropriate crimping tools for lugs and terminals to ensure secure and reliable connections. Follow manufacturer instructions for torque specifications when tightening connections to prevent loose connections and potential electrical issues. Proper connection techniques are essential for maintaining the integrity of your electrical system and preventing failures.
- Cable Management and Labeling: Organization for Clarity and Efficiency
Maintain a clean and organized installation by using cable ties or clamps to secure wires and prevent them from interfering with other components or creating potential hazards. Clearly label each circuit for easy identification, simplifying troubleshooting and future modifications to your system.
Daier: Your Trusted Partner in DC Power Distribution Solutions
At Daier, we understand that every application has unique requirements. That’s why we offer a diverse range of DC busbars in various sizes, configurations, and current ratings to cater to your specific needs. Our commitment to quality, innovation, and customer satisfaction ensures you’ll find the perfect busbar solution to empower your project.
 |

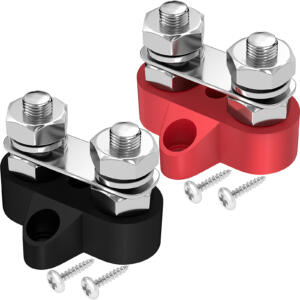

Part # BB2-1
The dual power distribution terminal block is rated for 80A continuous current in 12-48V DC, terminal studs size M6/M8. This battery terminal distribution block will come with a removable junction block, you can decide if to remove it according to your own need. |
 |

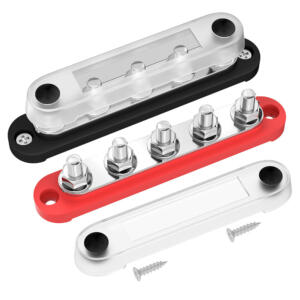

Part # BB150-T5M8-C
The automotive terminal studs busbar is rated for 150A continuous current in 12-48V DC, and 5 terminal studs size M8. The cover of this marine bus bar will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals |
 |
Part # BB250-T4M8/M10S6-C
The 48VDC 250A (actual up to 275A) Busbar with 4 x M8 or M10 studs and 6 x M4 screws for easy connection of terminal connectors and wires. Each power bus bar is equipped with a protective cover and two nuts. The cover shields exposed areas, reducing the risk of accidental contact and preventing short circuits. This added safety feature ensures a secure and reliable electrical circuit. |
 |

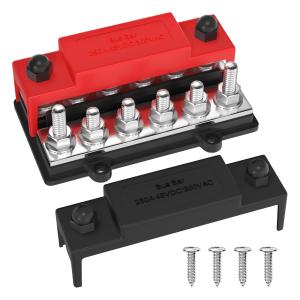

Part # BB250X2-T6M8-C
The dual row busbar is rated for 250A (12-48V DC) with 12 × M8 terminal studs, providing a wide range of connection options for different types of cables and connectors. The 250A double row busbar serves as a reliable positive and negative power distribution block, providing robust performance for a variety of electrical applications. |
 |

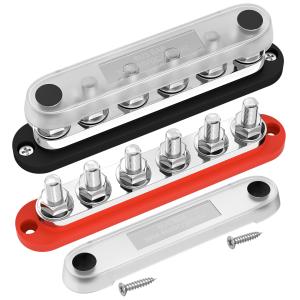

Part # BB300-T6M10/M8-C
The power distribution block 12V is rated for 300A in 48V DC / 300V AC, with 6 terminal studs size M10/M8. The exposed area of two side of this power distribution block cover allows 180° wire lug installation, can meet a variety kinds of install methods of end terminals. |
 |
Part # BB300-T4M10/M8-C-R/B-BOX1
The bus bar box rated 300A when work in a 12v circuit, besides, this power bus bar terminal block can work with MAX 48v power supplier. This positive or negative 4 stud battery distribution block is available in two stud sizes, 4 x 3/8″ (M10) stud or 4 x 5/16″ (M8) stud terminal design. |
 |
Part # BB500-T6M8X4M10X2
The 48VDC 500A busbar has 6 terminal studs, including 4*M8 terminal studs and 2*M10 terminal studs, and the thickness of the pure copper plate is 6 mm. Equipped with rubber gaskets, the wire inlets and outlets of the product ensure protection against dust and water, enhancing stability and safety for wire connections and connectors. |
 |

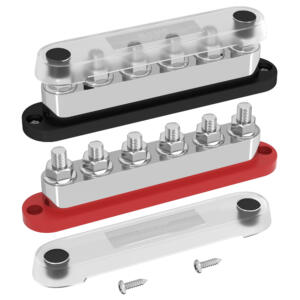

Part # BB600-T6M10
The 48VDC 600A power bus bar has 6 × M10 (3/8″) terminal studs and the power bus thickness of the pure copper plate is 20mm. This 600A busbar is suitable for a wide range of high current applications, including automotive, car, motorhome, truck, marine, boat and solar applications. |
Conclusion: Empowering Your Electrical Systems with DC Busbars
From simplifying installations and enhancing safety to improving efficiency and optimizing space, DC busbars provide a superior alternative to traditional wiring methods. Whether you’re outfitting a boat, building an off-grid power system, customizing a specialty vehicle, or tackling any project requiring organized and reliable power distribution, choosing the right DC busbar empowers your electrical systems and sets the stage for success.
Start your busbar journey with Daier. Explore our comprehensive DC busbar selection and discover the ideal solution for your application. Visit our Busbar category or Daier 2024 Automotive Parts Catalogue PDF, or contact our knowledgeable team to help you select the right busbar and optimise your DC distribution system. Let Daier be your trusted partner in delivering efficient, reliable power to your projects.
