KCD3-4-101EN

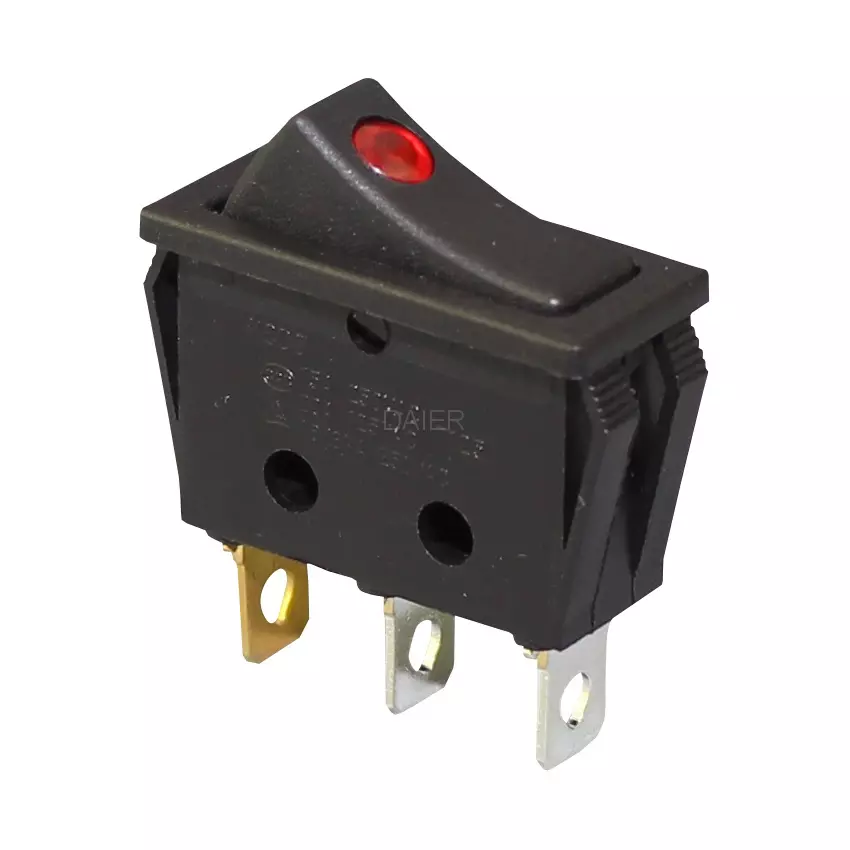

KCD3-4-101EN Led Light Rocker Switch:

Daier KCD3-4-101EN on off medium size rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.

Pls check the datasheet below:



Housing:Nylon 66Button:Nylon 66
Terminal:Brass with sliver platedSwitch Color:Black,white and grey
Rating:20A 125VAC/15A 250VACLamp color:Standard red,green,yellow and blue is avaliable
Contact & Function:SPST,ON-OFFLamp Voltage:220V/12V/24V
Contact Resistance:35mΩ maxOperating Temperature:-25℃~+85℃
Insulation Resistance:100mΩ min (500VDC)Electrical Life:≥ 10,000 Cycles
Dielectric strength:1500VAC 1 minuteMechanical Life:≥ 100,000 Cycles
Certification:CE, CQC, SGSOEM or ODM:Available
