KCD2-201N-B 30A Illuminated ON-OFF DPST 4 Pin Rocker Switch
Part # KCD2-201N-B

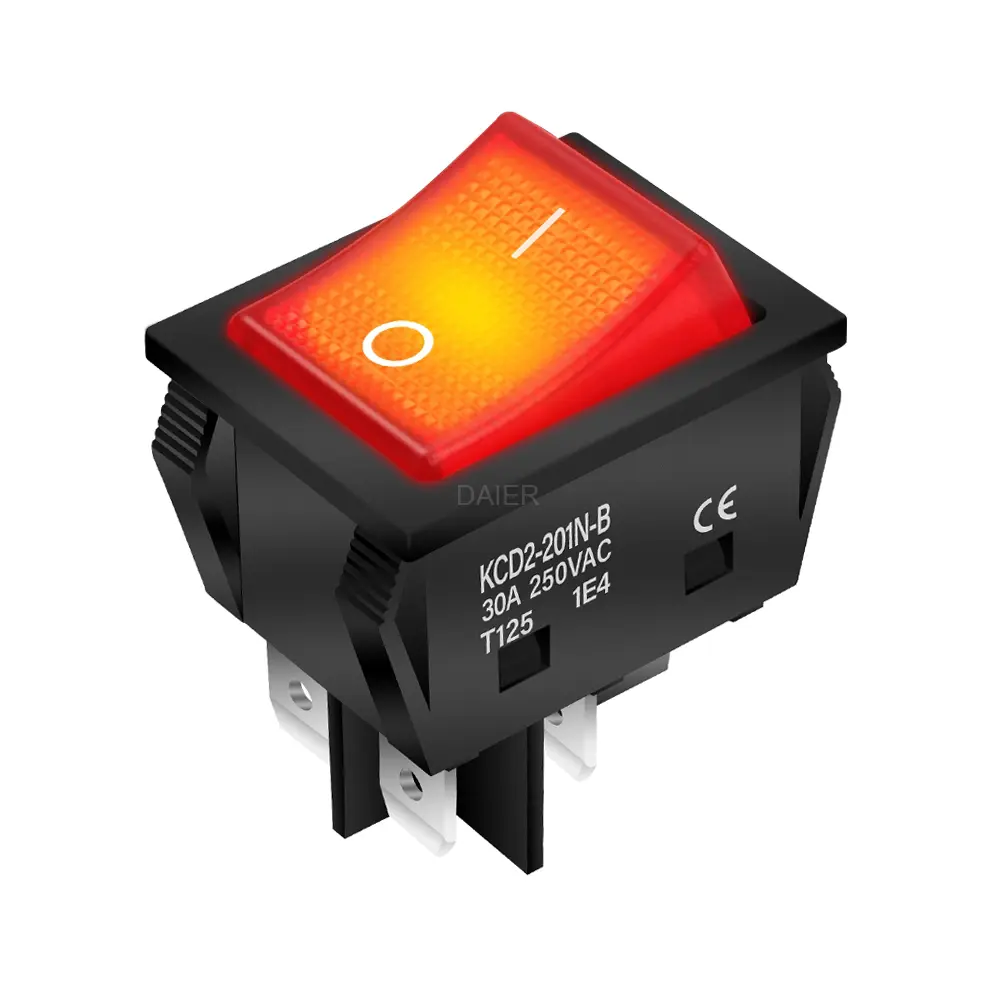

The Illuminated 4 pin rocker switch is used for 30A at 250VAC systems, T125, 1E4, ON-OFF, DPST with a red illuminated lamp.
Its heavy-duty construction and wide operating temperature range make it ideal for various industrial and household applications.
The rocker switch fits for 30*22 mm panel cut-out size and very easy to install.
Category :
Automotive Rocker Switch
KCD2-201N-B 30A Illuminated ON-OFF DPST 4 Pin Rocker Switch Details
- High-Current Rocker Switch
This heavy-duty rocker switch boasts a 30A 250VAC rating, making it suitable for a wide range of applications requiring high current capacity. It performs reliably at various amperages (3A, 6A, 10A, 15A, 16A, 20A, 25A, and 30A) and voltages (120V or 240V).
- Red Illuminated Indicator
This rocker switch is equipped with a red illuminated light that clearly shows the operating status of the device. The indicator lights up when the switch is turned on, making it easy to recognise even in low light conditions. It has an input voltage of 110 VAC to 250 VAC.
- DPST ON/OFF Functionality
This DPST (Double Pole Single Throw) rocker switch offers a simple ON/OFF function, making it suitable for controlling various electrical devices and appliances. It features a T125 temperature rating, ensuring reliable operation from -25°C to +125°C.
- Easy Installation
The KCD2 and KCD4 rocker switches are designed for easy installation and fit into a standard 30x22mm panel cutout. Their snap-in recessed mounting design makes installation quick and easy.
- Versatile Applications
This illuminated rocker switch serves as a versatile solution for various industrial and scientific applications. The 4 pin rocker switch is ideal for a wide range of household appliances such as water dispensers, treadmills, coffee pots, power tools, and other electronic equipment.
KCD2-201N-B 4 Pin Rocker Switch Datasheet
| Rating: | 30A 250VAC T125 1E4 |
| Function: | DPST 4 PIN ON OFF |
| Rating: | 30A |
| Shape: | Rectangle Shape, Red Actuator |
| Contact Resistance: | ≤50 mΩ |
| Insulation Resistance: | ≤100 mΩ |
| Dielectric strength: | ≥1500V AC/5S |
| Operating Temperature: | -25℃~+85℃ |

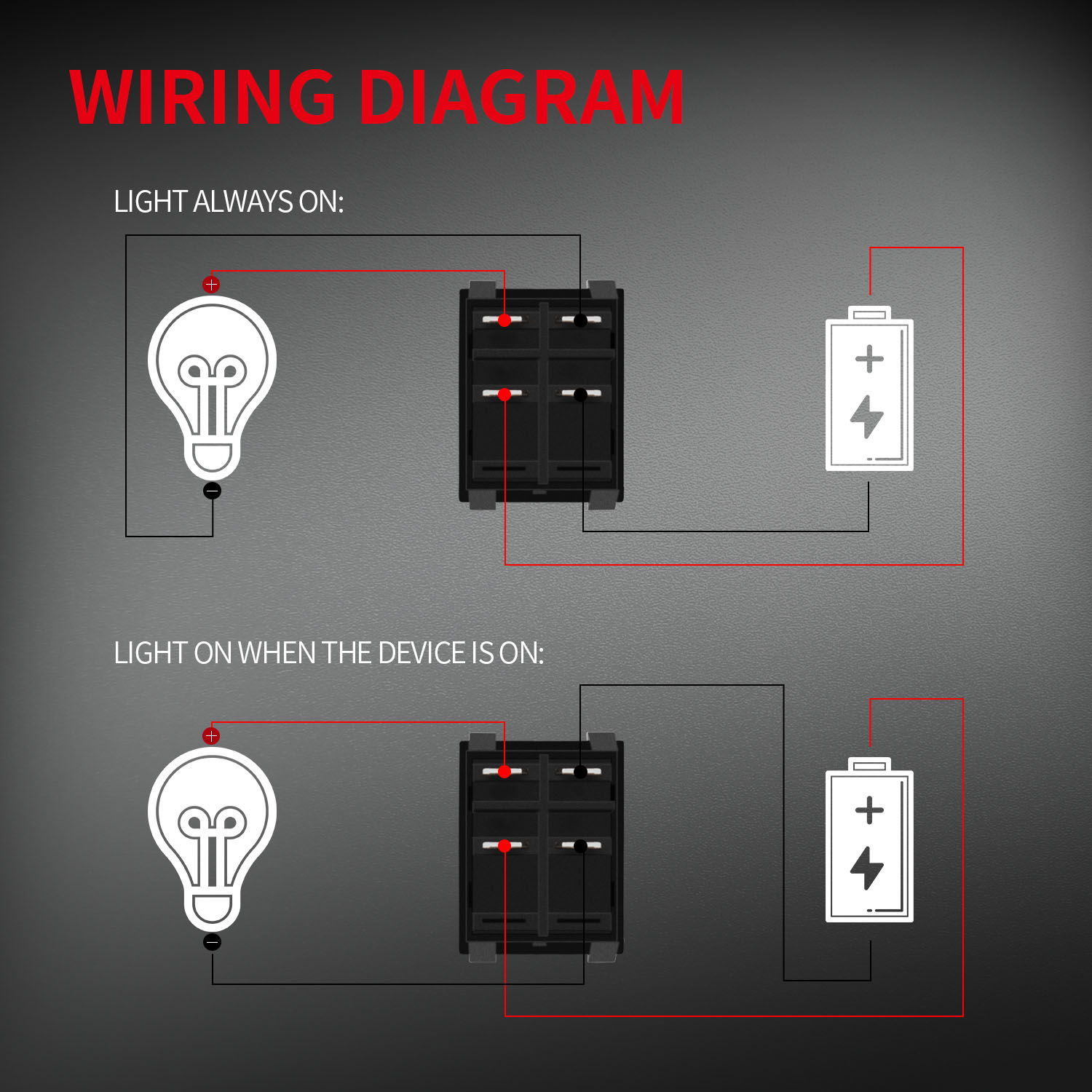

KCD2-201N-B 4 Pin Rocker Switch Wiring Diagram
