JD1914-W12V Automotive Waterproof Heavy Duty 5Pin SPDT 30/40A 12V Pre-wired Car Relay with Built-in Diode
Part#JD1914-W12V
The waterproof 5Pin 30/40A pre-wired car relay is rated for normal open 40A, normal closed 30A in 12V DC, SPDT and 5 Pin with built-in diode.
The relay sockets come with different colors for loads/accessories, simple and convenient wiring.
Category :
Relay & Relay Box
JD1914-W12V Heavy Duty 5Pin 30/40A Car Relay Details
- Secure and Reliable Connections
This 12V car relay incorporates a unique interlocking design and insulated label wire for secure accessory wiring. This ensures optimal power transfer and simplifies installation, making the process safe and convenient.
- Simplified Wiring and Enhanced Durability
The pre-wired relay features color-coded sockets for loads and accessories, making wiring easier and minimizing errors. The tinned wire construction provides exceptional corrosion and oxidation resistance, ensuring long-term performance and reliability.
- Versatile Functionality and Easy Integration
This heavy-duty relay is designed with a 5-pin SPDT configuration, offering both NO (normally open) and NC (normally closed) functionality for versatile switching applications. The interlocking male-female slot design enables quick and effortless connection between the relay and harness socket.
- Reliable Automotive Performance
The heavy duty relay’s trigger switch is rated for DC 12V (max 14VDC) with a 30/40A capacity (40A NO, 30A NC) and a 12VDC coil voltage. The optimized 12 AWG and 16 AWG wire gauges ensure efficient power delivery for both devices and switches.
- Waterproof Construction for Demanding Environments

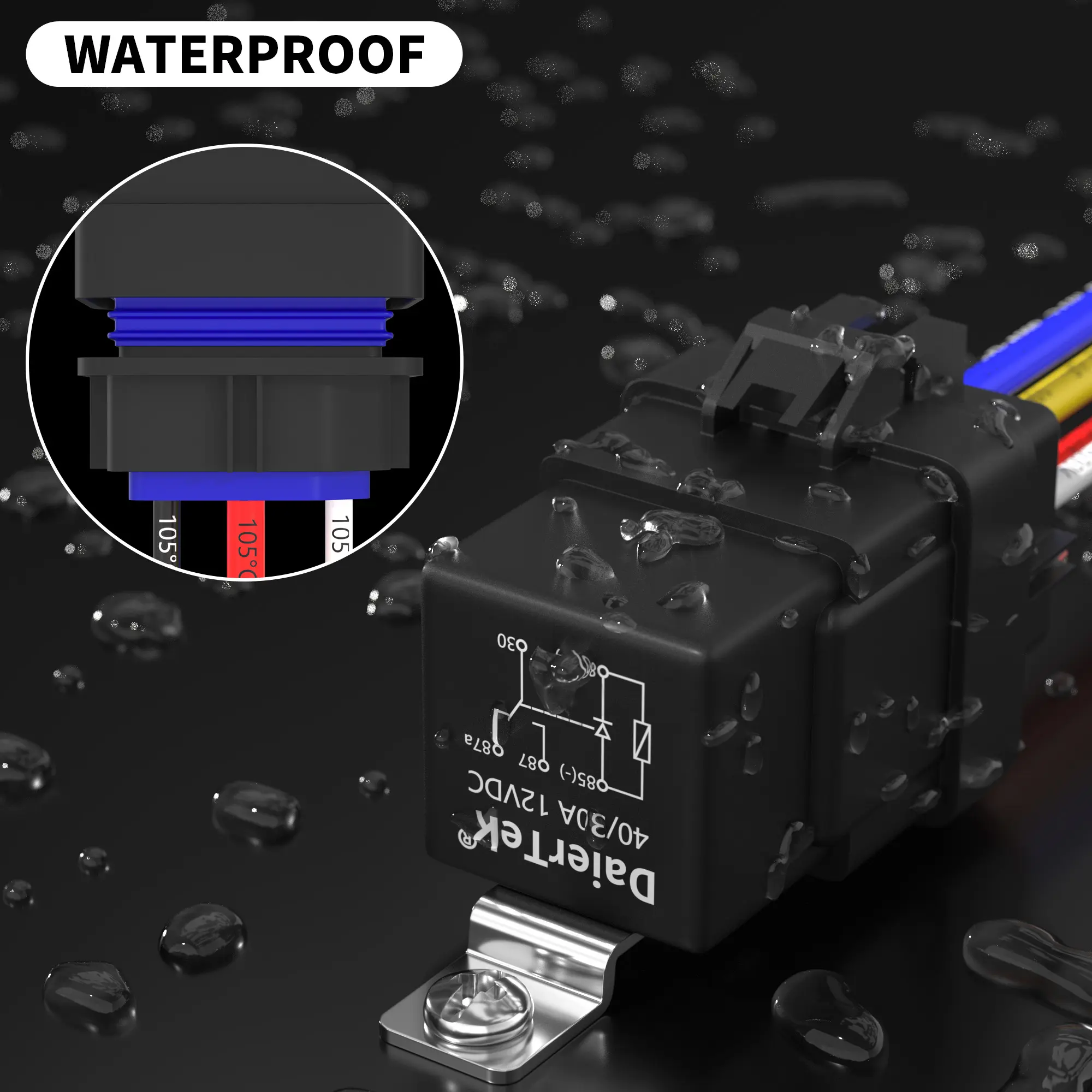

This waterproof relay incorporates a seal ring inside the socket, enhancing its waterproof performance and making it suitable for outdoor use. The robust construction ensures reliable operation even in challenging conditions, keeping your electrical connections secure.

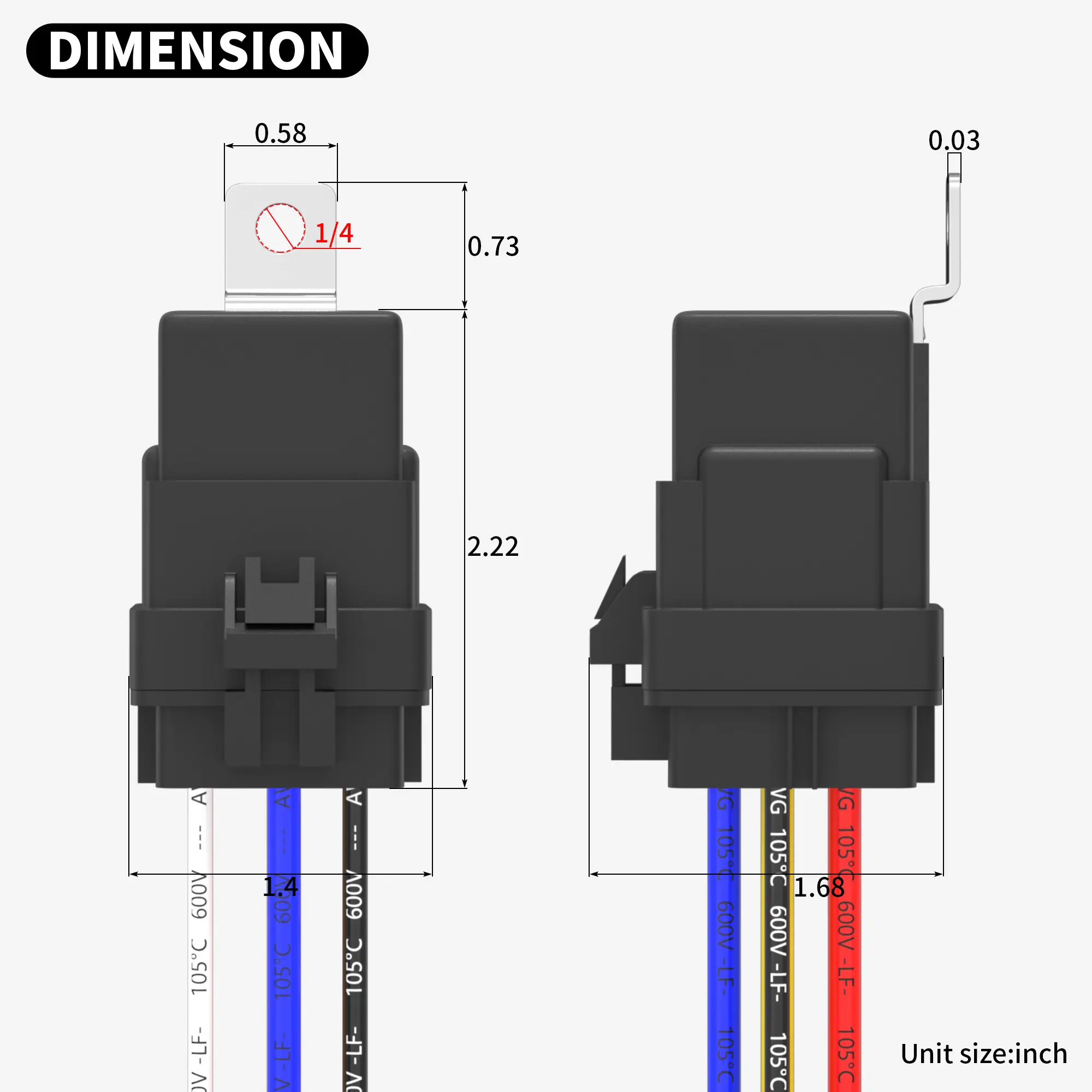

JD1914-W12 Heavy Duty 5Pin 30/40A Car Relay Datasheet
| Type | 5 Pin, SPDT Relay Switch, Automotive Relay |
| Trigger Switch Rating | 30 amp / 40 amp, 12 Volt (Max 14V) |
| Coil Voltage | 12 VDC |
| 12 AWG Wire | 30 Red, 87 Blue, 87a Yellow |
| 16 AWG Wire | 85 Black, 86 White |
| Wire Info | 125mm Length, Tinned Wire |
| Protection | Waterproof, Dustproof, Weatherproof |
Other products with the same function are recommended: JD1912-W12V
