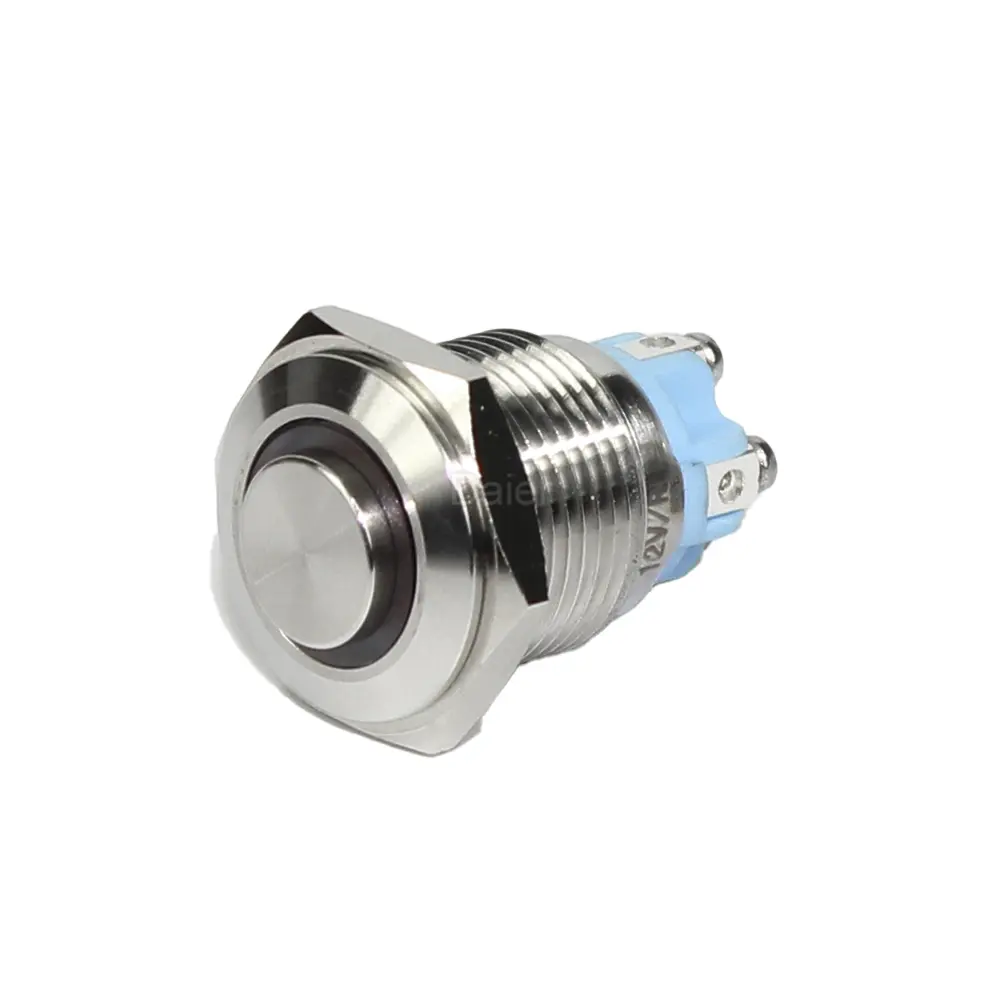

GQ16H-10E 16MM High Head Push Button LED Light
The 16mm high head push button LED light, Function: IP65, momentary/latching; Rating: 3A 250VAC, 5A 12VDC; Terminal: solder/screw type.
The switch and LED are separated, the LED can be on all the time or only on when the switch is on, depending on how you wire it.
GQ16H-10E Push Button LED Light Details
- Easy Installation
Anti-vandal switches with screw clamp-type terminals make the switch installation simple and convenient.
- Visual Feedback
The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
GQ-16F-10E Series Switches
|GQ16H-10EL||Latching, high button with ring LED, solder terminal|
|GQ16H-10EM||Momentary, high button with ring LED, solder terminal|
|GQ16HS-10EL||Latching, high button with ring LED, screw terminal|
|GQ16HS-10EM||Momentary, high button with ring LED, screw terminal|
GQ16H-10E Series Datasheet
Still, have a question about the GQ16H-10E and GQ16HS-10E series that wasn’t answered on this page? Please get in touch with us at email@example.com or submit form!
