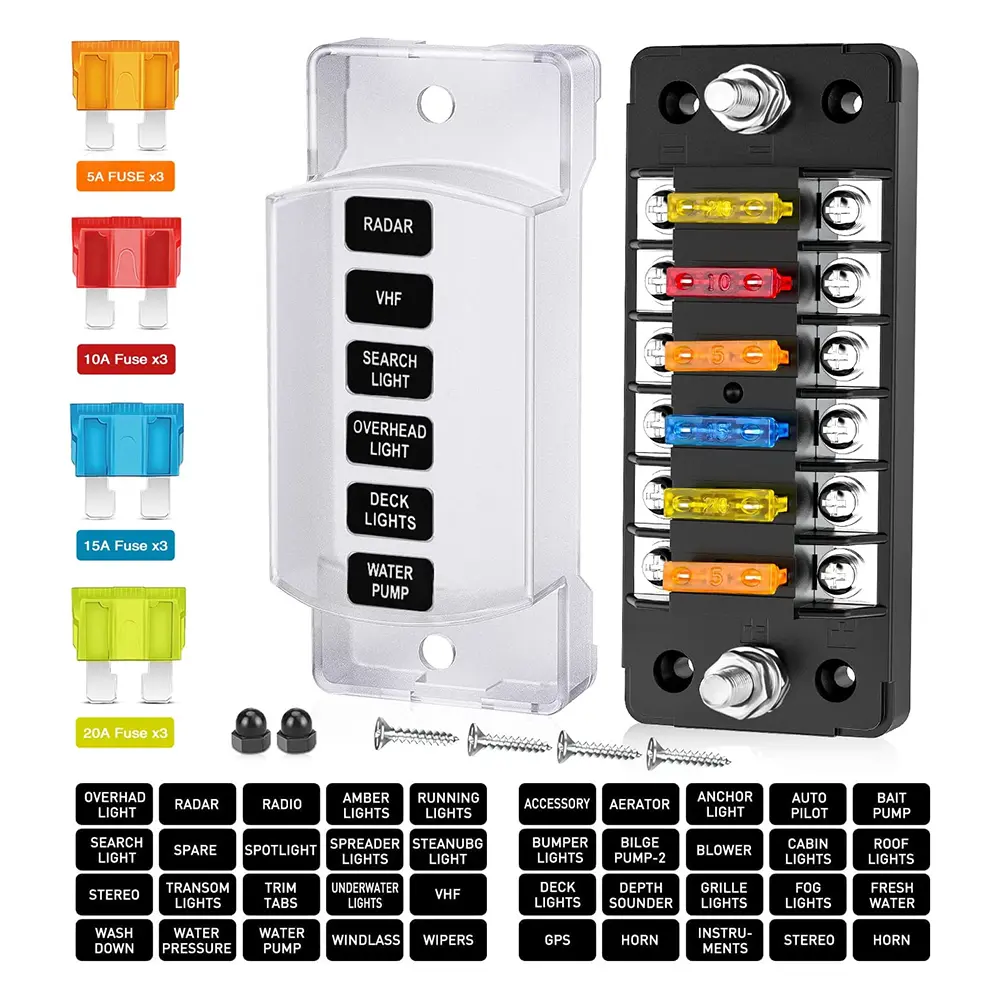

FB-1901 6 Way Fuse Block With Negative Bus
Part#FB-1901
FB-1901 6 Way fuse block with negative bus work for 10V-32V DC automobiles, vessels, and devices. Maximum of 20A per circuit / 75A per panel.
The fuse box has 6 dedicated fuses and 6 grounding positions, and each positive terminal has a negative terminal to make your circuit clear at a glance.
FB-1901 6 Way Fuse Block With Negative Bus Details
-
Stable Performance
Nickel-plated brass connection terminal has low resistance and good conductivity to ensure the flow and stability of current.
-
Visual Feedback
When the fuse is detected to be blown, the LED indicator will light up to quickly identify the blown fuses and the position that needs to be replaced.
-
Sturdy Construction
All parts are made of high-quality materials to ensure the mechanical strength and durability of the fuse box.
-
Safety Protection
The base is made of PBT environment-friendly flame retardant plastic to protect the safety of equipment and people.
-
Wide Application
It is suitable for electric equipment such as cars, RVs, buses, trucks, boats, ships, etc.
FB-1901 Datasheet
Circuits | 6 |
Maximum Amperage | 100A per block&30A per circuit |
Main Wire Terminal | M6 Bolt (75A, 32V DC Max) |
Main Wire Size | #4-6 AWG |
Single Wire Terminal | M4 Stud (20A, 32V DC Max) |
Single Wire Size | #12-16 AWG |
Current Range | ATO/ATC Fuse 1A to 20A |

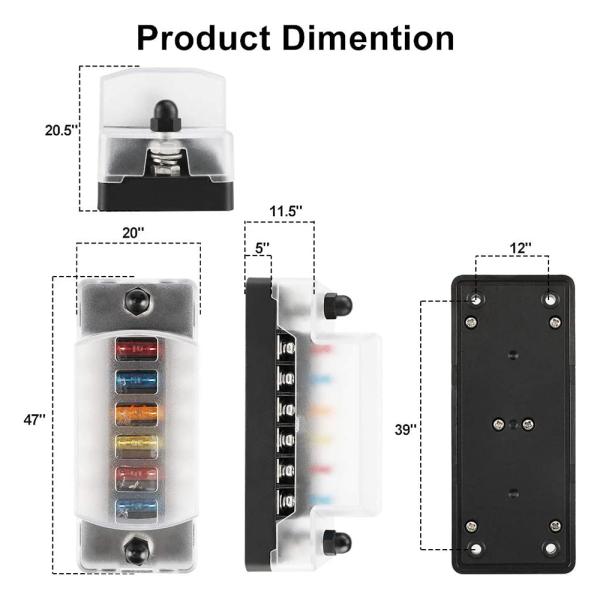

Size with Cover | 4.72” x 1.96” x 2.04” |
Other products with the same function are recommended: FB-1709L, FB-1713, and FB-1714.
Still, have a question about the FB-1901 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
