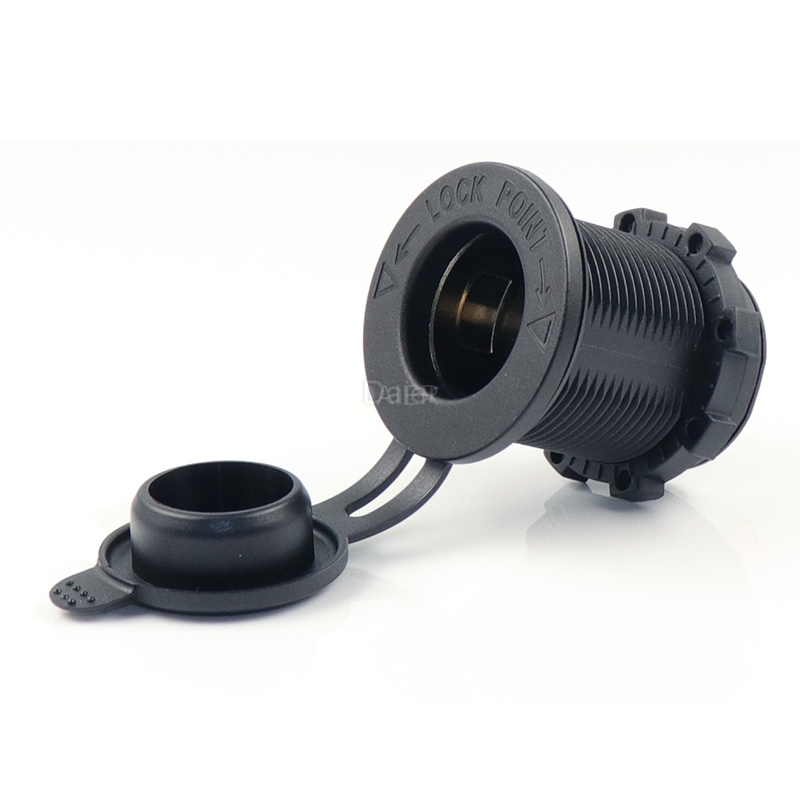

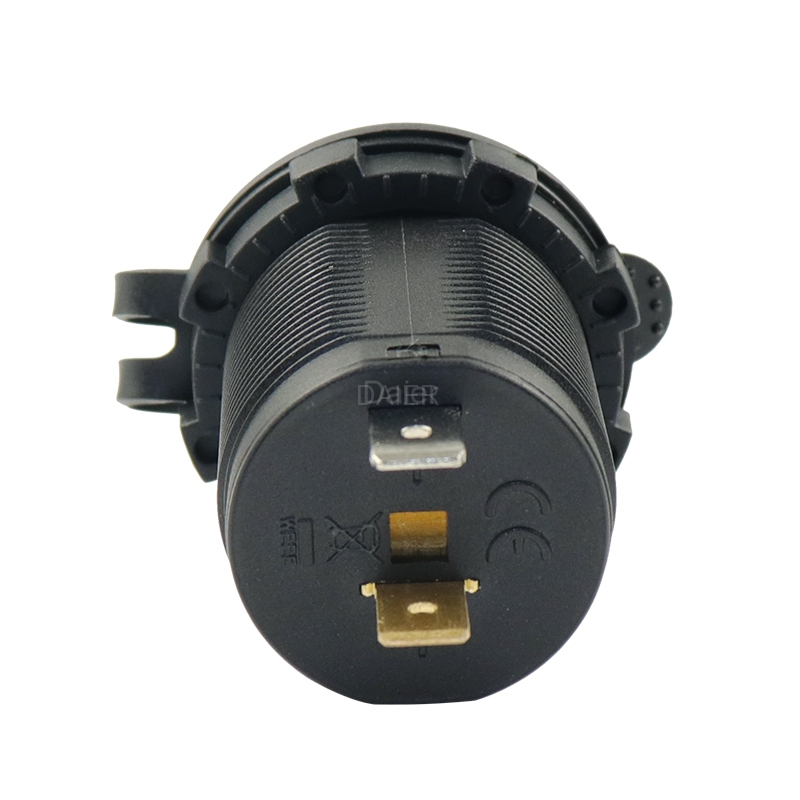

DS1011 Car Marine Boat Cigarette Lighter Socket

DS1011 Car Marine Boat Cigarette Lighter Socket

Waterproof and dustproof by a rubber cover, protects the internal circuit, effectively enhance its lifespan.

Category :

DC Power Socket

DS1011 Car Marine Boat Cigarette Lighter Socket:

SIZE: 2.9×5.5cm/1.2×2.2inch( Height: about 5.5cm). Suitable for standard mounting panel size, with a single-hole panel, easy to install.

DS1011 Car Marine Boat Cigarette Lighter Socket

DS1011 Car Marine Boat Cigarette Lighter Socket SIZE: 2.9×5.5cm/1.2×2.2inch( Height: about 5.5cm). Suitable for standard mounting panel size, with a single-hole panel, easy to install.

FUSE FOR Over-load PROTECTION: Any DC 12V/24V or high load capacity will be protected to burn when the current is to high. Safety Charging design will prevent your devices from over-heat, over-current, over-voltage, over-load, and short-circuit. Don’t worry about the current in your car.

Waterproof & Dustproof: Waterproof and dustproof by a rubber cover, protects the internal circuit, effectively enhance its lifespan.

Widely applicable: Suitable for any 12V – 24V vehicles (motorcycle, boat, truck, ATV, RV) in need of extra and heavy duty cigarette lighter plug sockets.

WITH WATERPROOF LID: Housing Is Made Of Plastic, Which is With Resistance To High Current, High Temperature And Wear Resistant.Work perfectly with ANY Car Powered Devices,Higher Load Capacity can use the connectors we offer.

A selection of high quality plugs, sockets, adapters and accessories for automotive, motorbike and marine markets. Our range includes waterproof USB socket, car voltmeter, car ammeter, waterproof car cigarette lighter, power socket for charging and powering devices with a variety of fixing options as well as several universal DIN and cigar lighter plugs where the red adapter can be removed to use as a DIN power plugs, also known as Hella plugs as frequently found on motorbikes and scooters.

12V / 24 Volt marine and automotive digital voltmeter with LED display. Supplied with fixing nut for through hole mounting. Recommended mounting hole size 29mm. Supplied with 6.35mm tab terminals for electrical installation. RoHS. Suitable for marine, motorcycle or other automotive use. Can be dashboard mounted. Best quality.

We can’t talk out their advantage in a few words, but they are more and more popular in the world. We provide our product at Factory Price. Contact Directly & Get Live Quotes Now!

Pls check the datasheet below:



Rating: 15A 12VDC Waterproof Grade: IP65
Contact Resistance: 35mΩ max Operating Temperature: -40℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
