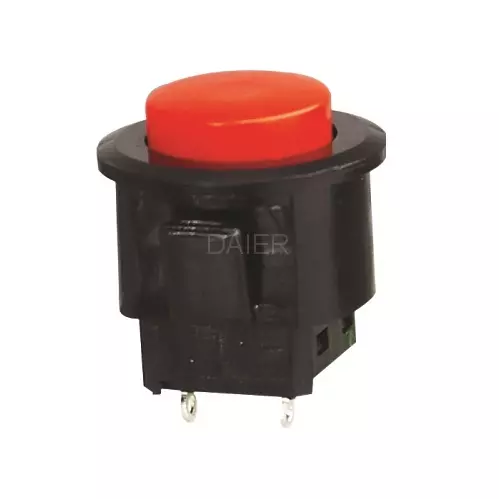

DS-510K 16mm Plastic On Off Switch
DS-510K ON-OFF
DS-511K OFF-(ON)
1A 250VAC
DS-510K 16mm Plastic On Off Switch
Push button switch is one of the most easy and quick to operate.
The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers.
There are many color of button to choose from.
DS-510K 16mm Plastic On Off Switch related product, pls check the detailed information as below:
| DS-510K： | OFF-ON |
| DS-511K: | OFF-(ON) |
Pls check the datasheet below:
| Rating: | 1A 250VAC | Contact Resistance: | 100mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Function: | OFF-(ON) or ON-OFF |
| Dielectric strength: | 500VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | OEM or ODM: | Available |
