BB275-T6M8-C 275A 48VDC 6×M8 Studs Bus Bar Battery Power Distribution Block

BB275-T6M8-C 275A 48VDC 6×M8 Studs Bus Bar Battery Power Distribution Block Features

• Robust Construction

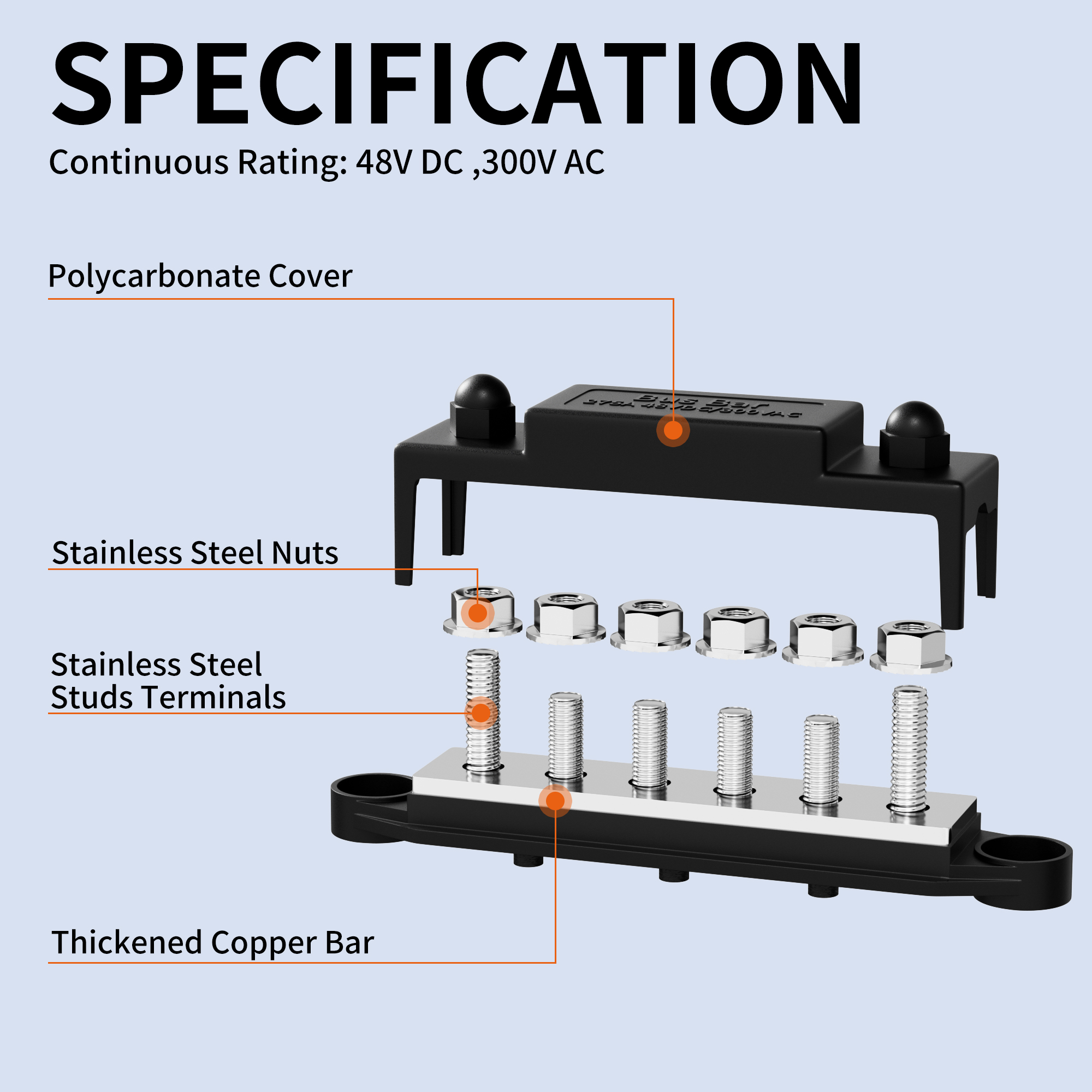

This power distribution block is capable of handling up to 275A continuous current at a maximum voltage of 300V AC or 48V DC thanks to its robust 3.5mm copper bar, which is thicker than the industry standard to ensure reliable performance under heavy loads.

• High-Quality Terminals

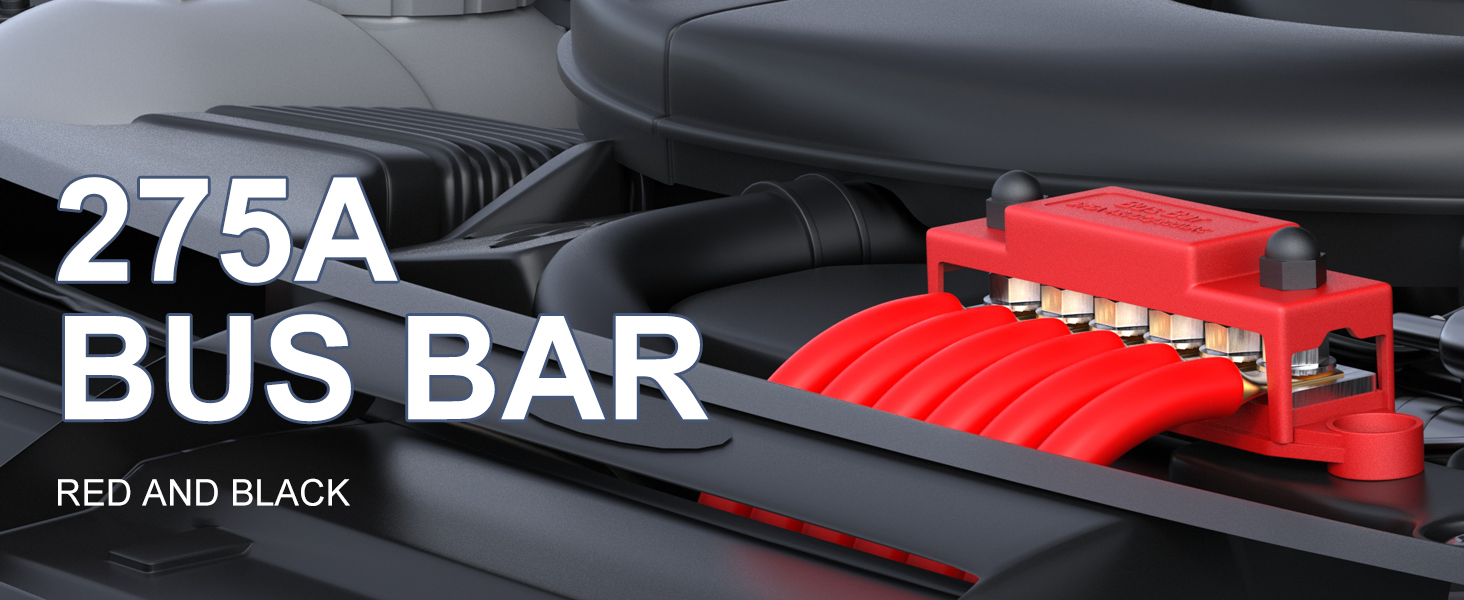

A pair of 12V busbars (red & black) with 6 x M8 (5/16″) binding posts, all fitted with 304 stainless steel terminals, offer superior rust resistance compared to those with iron terminals, ensuring long-term durability and reliability.

• Improved Stability

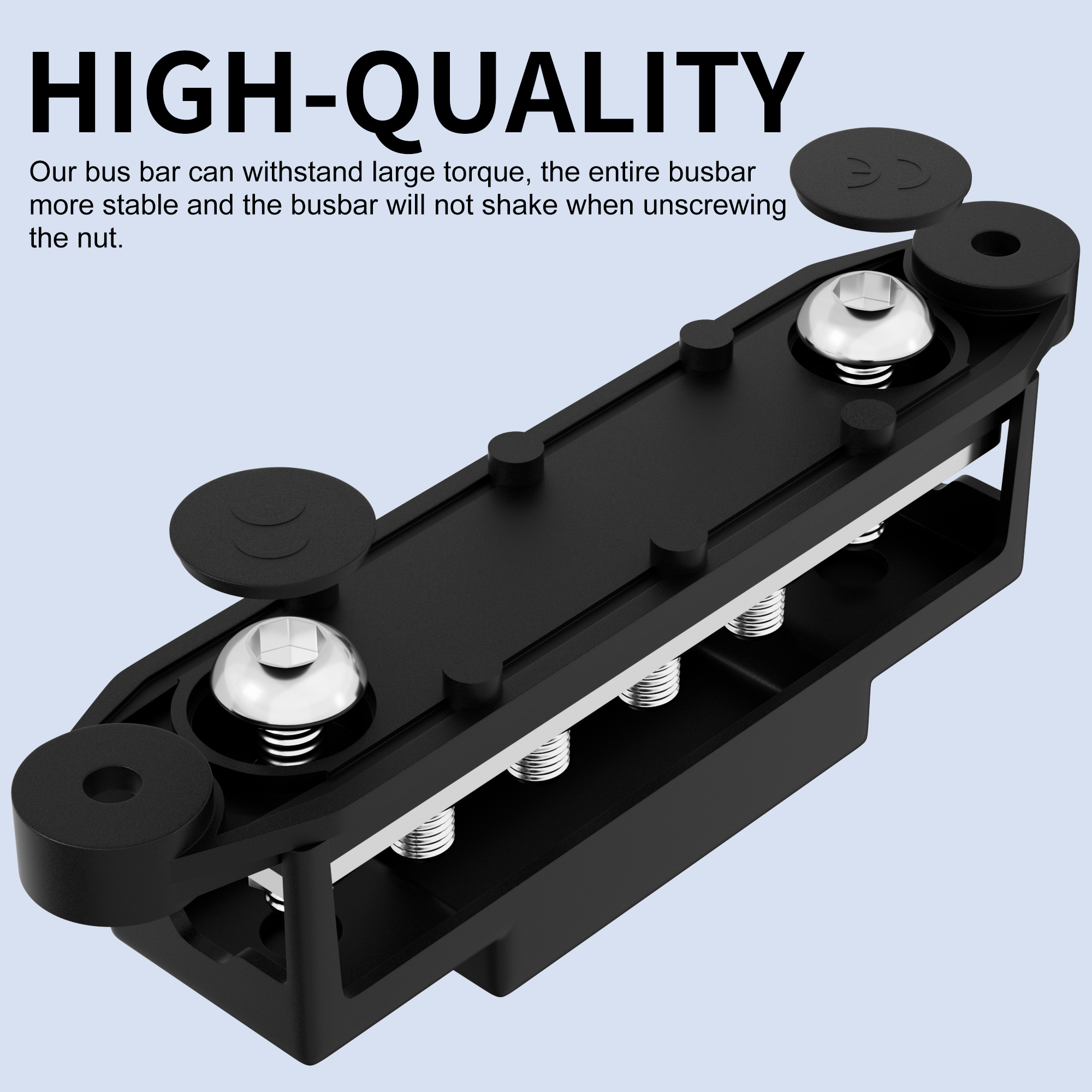

These marine busbar allow for wire management, helping to maintain a neat and orderly circuit layout and reducing the risk of short circuits. These marine manifolds are designed with a special fastening method to withstand high torque and ensure greater stability.

• Protective Accessories

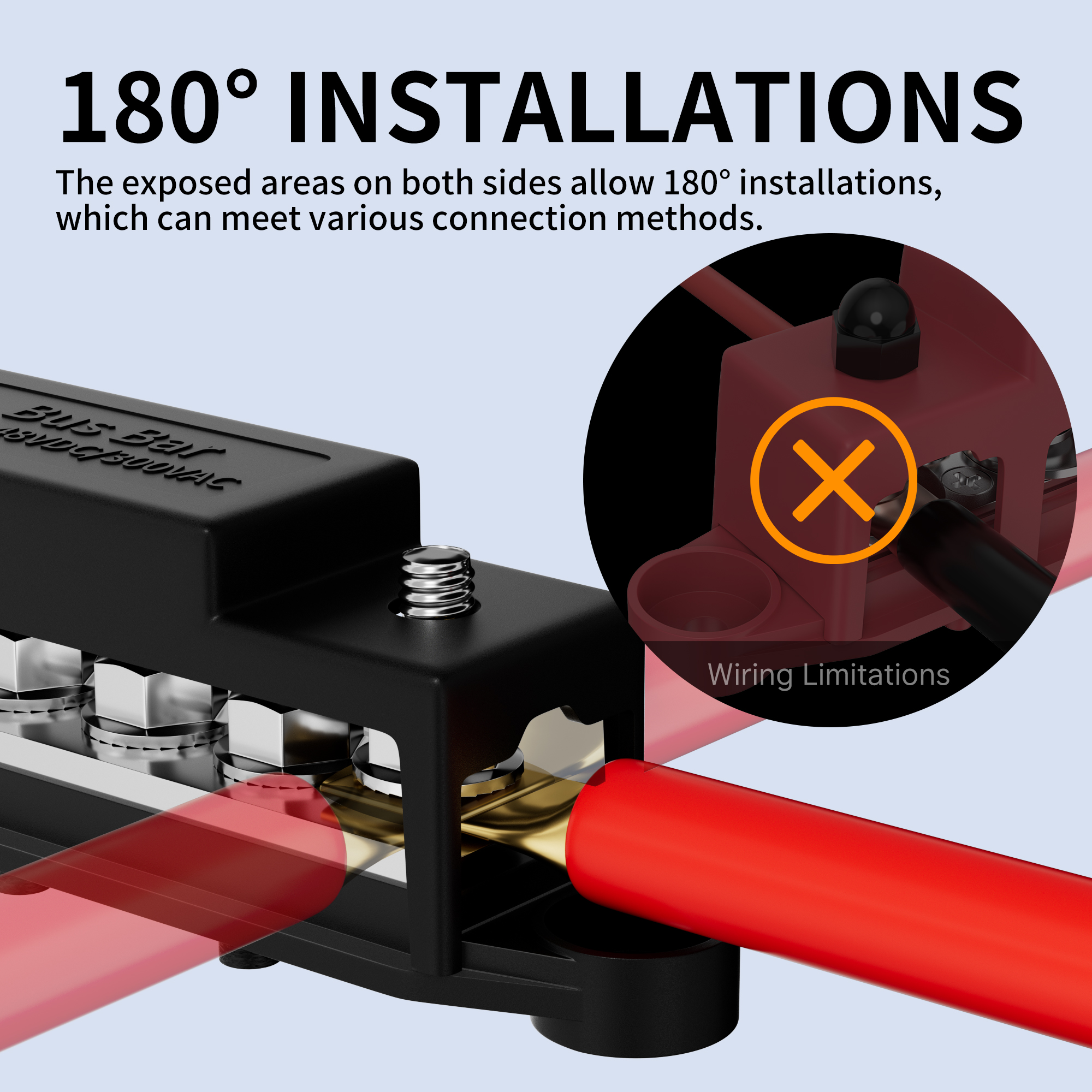

These 275A busbars are fitted with a protective cover to prevent accidental short circuits by covering exposed areas. With exposed areas on both sides allowing 180° installations, they offer versatility to accommodate different connection methods while ensuring safety.

• Wide Application

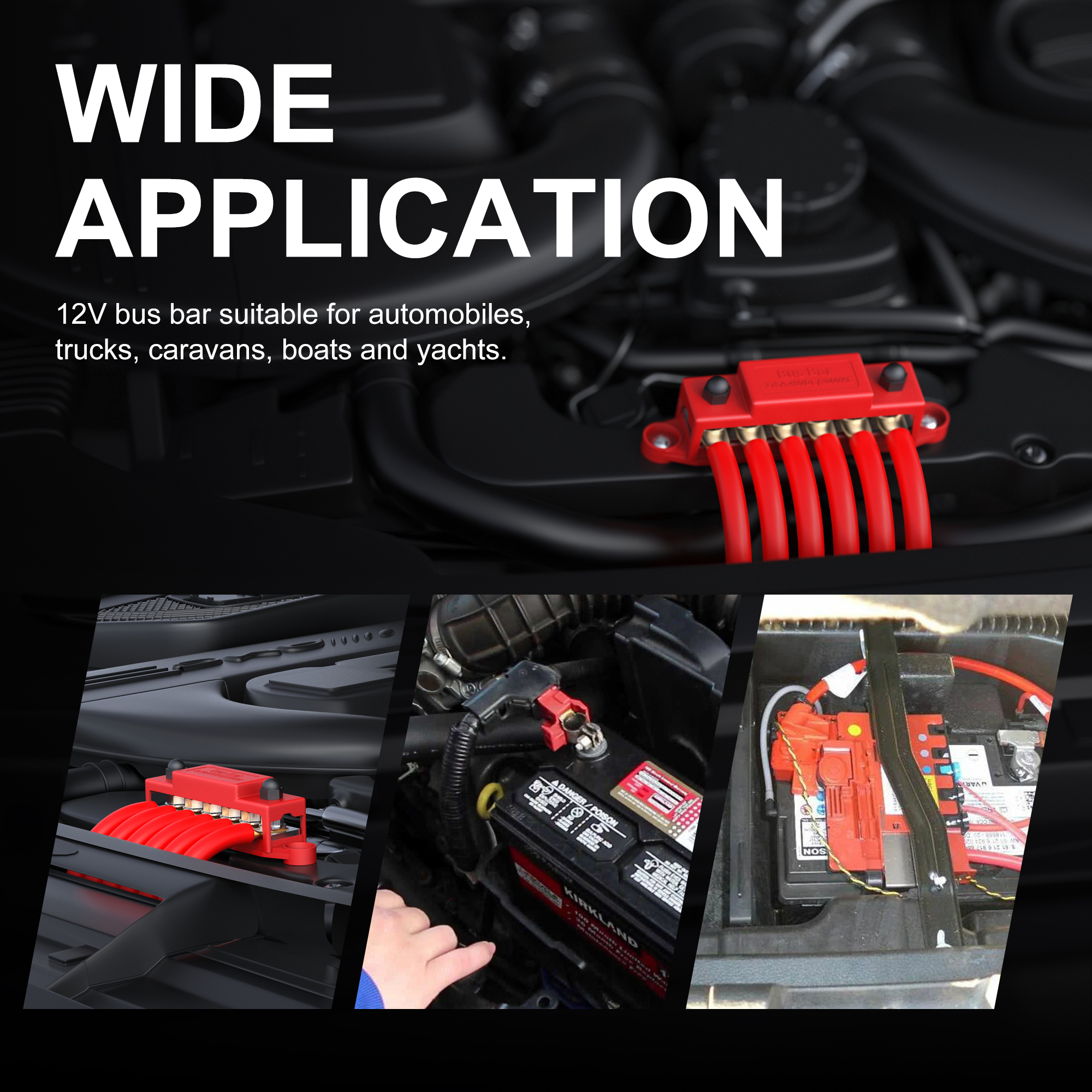

The 48 V bus bar with cover is designed to promote tidy wiring and prevent electrical shorts and is suitable for a wide range of applications including cars, RVs, trucks, marine vessels, boats, solar power systems and more.

BB275-T6M8-C 275A 48VDC 6×M8 Studs Bus Bar Battery Power Distribution Block Datasheet

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
