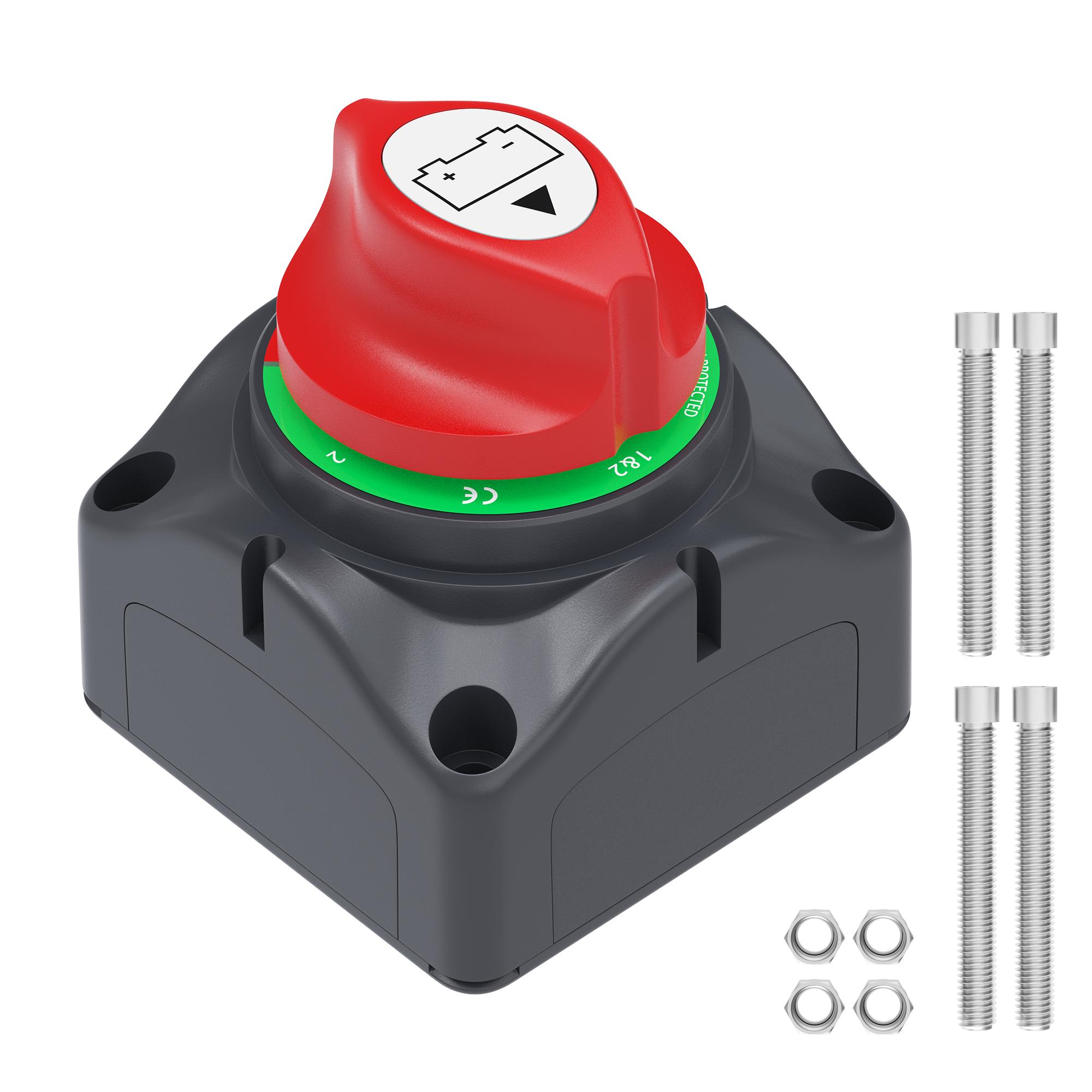

ASW-A701S 12V-48V 275A 1-2-Both-OFF Heavy Duty Battery Isolator Switch

Part#ASW-A701S

Category :

Battery Switch

ASW-A701S Heavy Duty Battery Isolator Switch Features

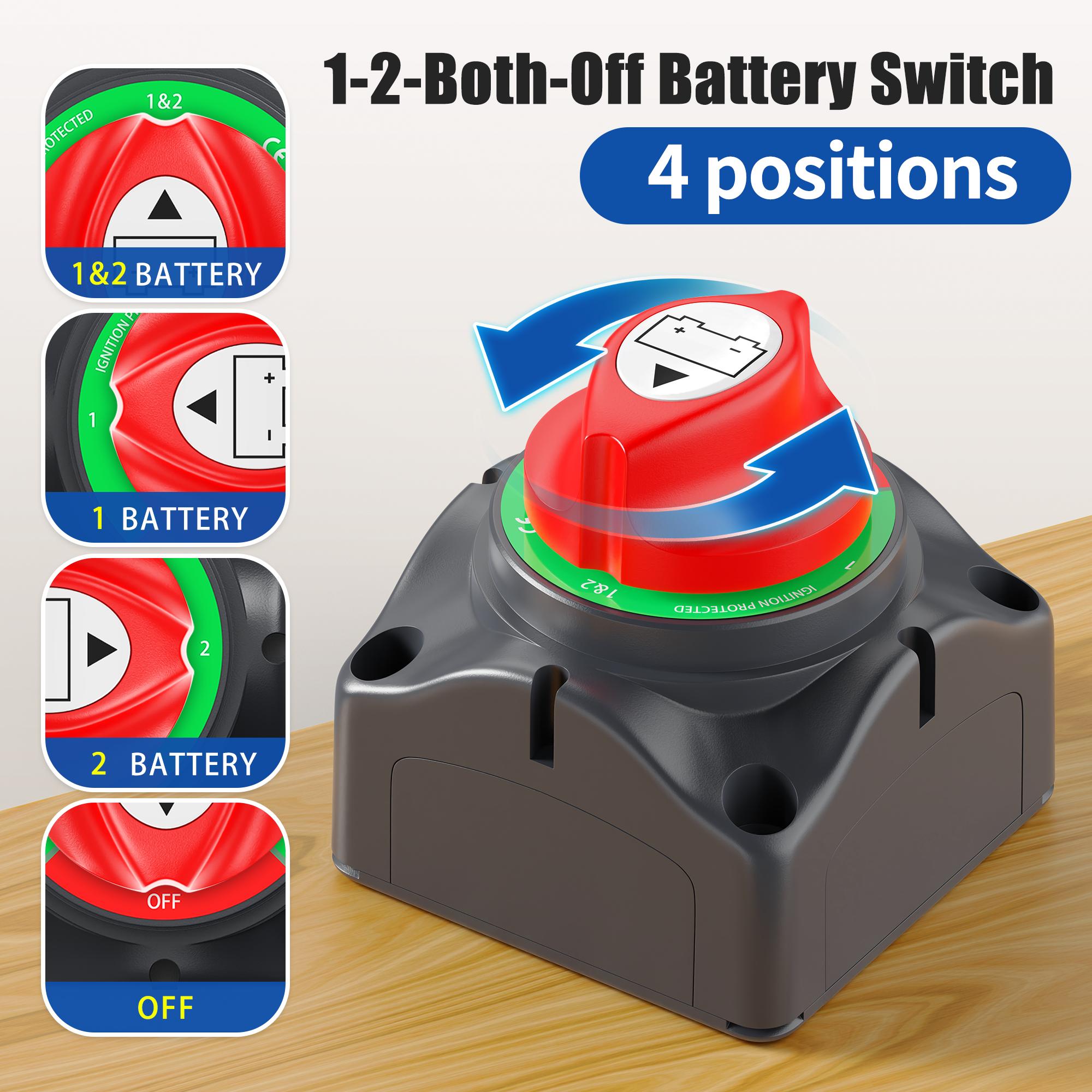

  • Versatile Functionality

The Battery Power Cutoff Master Switch offers 1-2-Both-OFF 4 Position capabilities, providing flexibility and control over your electrical system. With a rating of 275A DC Continuous, 455A DC Intermittent, and 1250A DC Cranking, it ensures reliable performance in various applications.

  • Premium Quality

Crafted from high-quality ABS plastic, our battery disconnect switch is built to last and ensures safe usage. The M8 tinned copper studs and nuts enhance electrical conductivity and reliability. The rear cover provides insulation, protecting against short circuits.

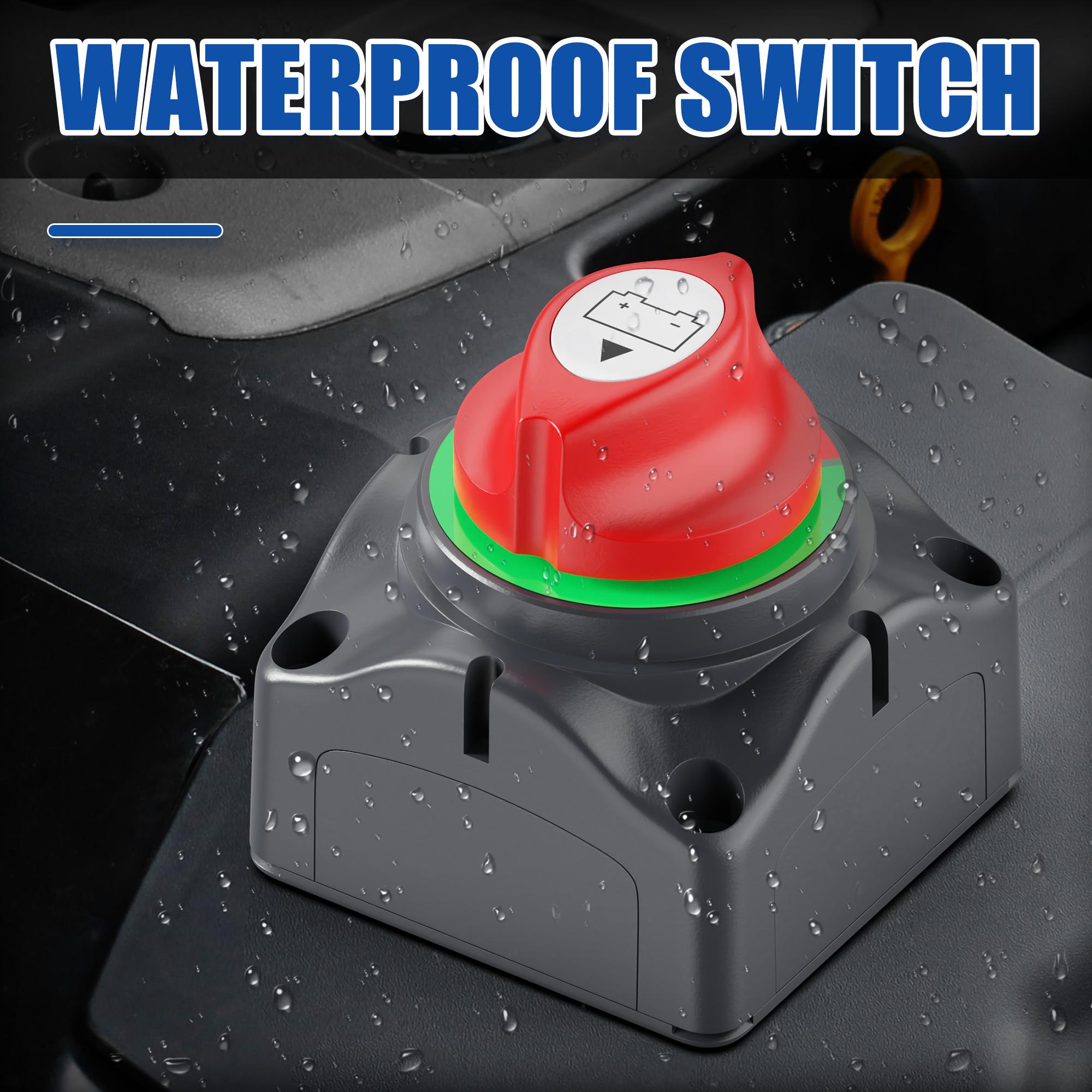

  • Enhanced Safety

Designed with safety in mind, our Waterproof Battery Switch disconnects the battery to prevent excessive drain when your vehicle or boat is not in use. This feature ensures the longevity and optimal performance of your batteries.

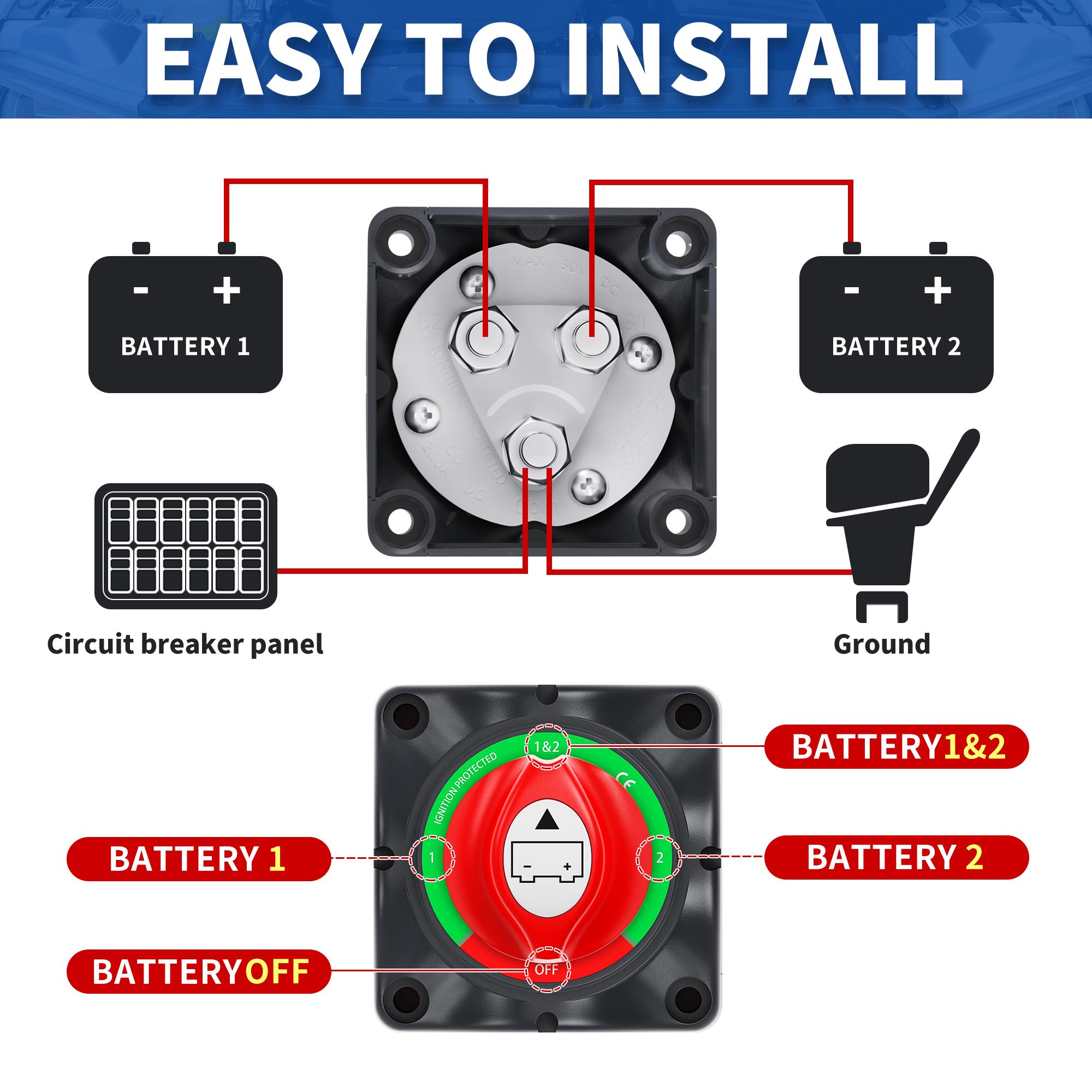

  • Easy Installation

Our Battery Power Cutoff Master Switch is designed for easy installation and can be integrated seamlessly into your electrical system. With its reliable performance and wide compatibility, it is the ideal choice for managing your battery power effectively and safely.

  • Wide Compatibility

It’s suitable for DC 12-48V systems, our battery shut-off switch is versatile and can be used in a range of applications. It can be used standalone or locked together with other switches. It finds widespread use in cars, marine vessels, RVs, trailers, trucks, and various electrical equipment.

ASW-A701S Heavy Duty Battery Isolator Switch Datasheet

Part NO ASW-A701S
Function 1-2-Both-OFF
Working voltage  12-48V
Rated Current 275A (12V)
Instantaneous Current 1250A(12V)
Terminal  3 Pins
Stud Size 5/16″ M8
Stud Material Metal Copper
Housing Material ABS Plastic
Rotation Angle 360 degrees

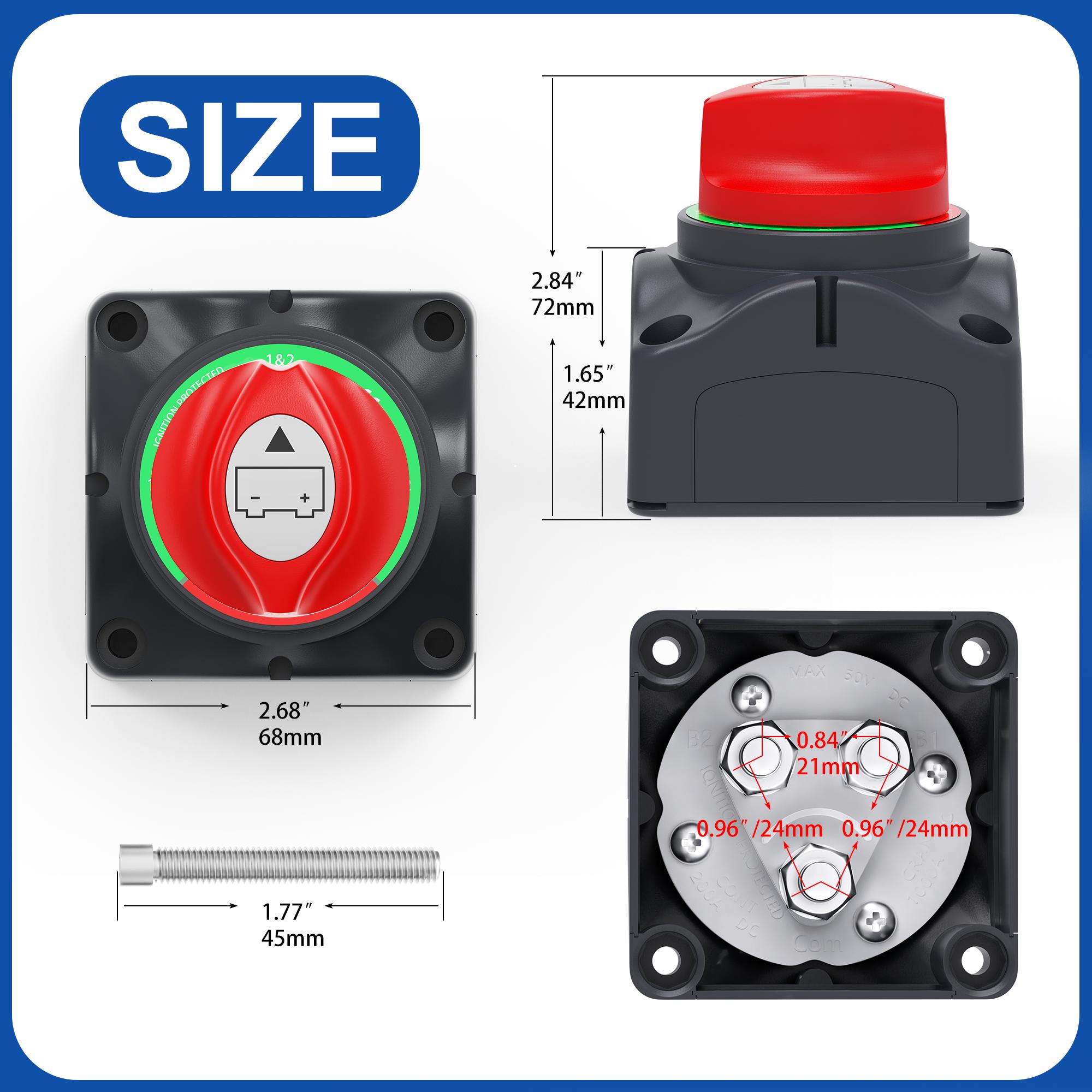

Size 68 (L)x68 (W)x74(H)mm/2.6×2.6×2.9 inch

If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
