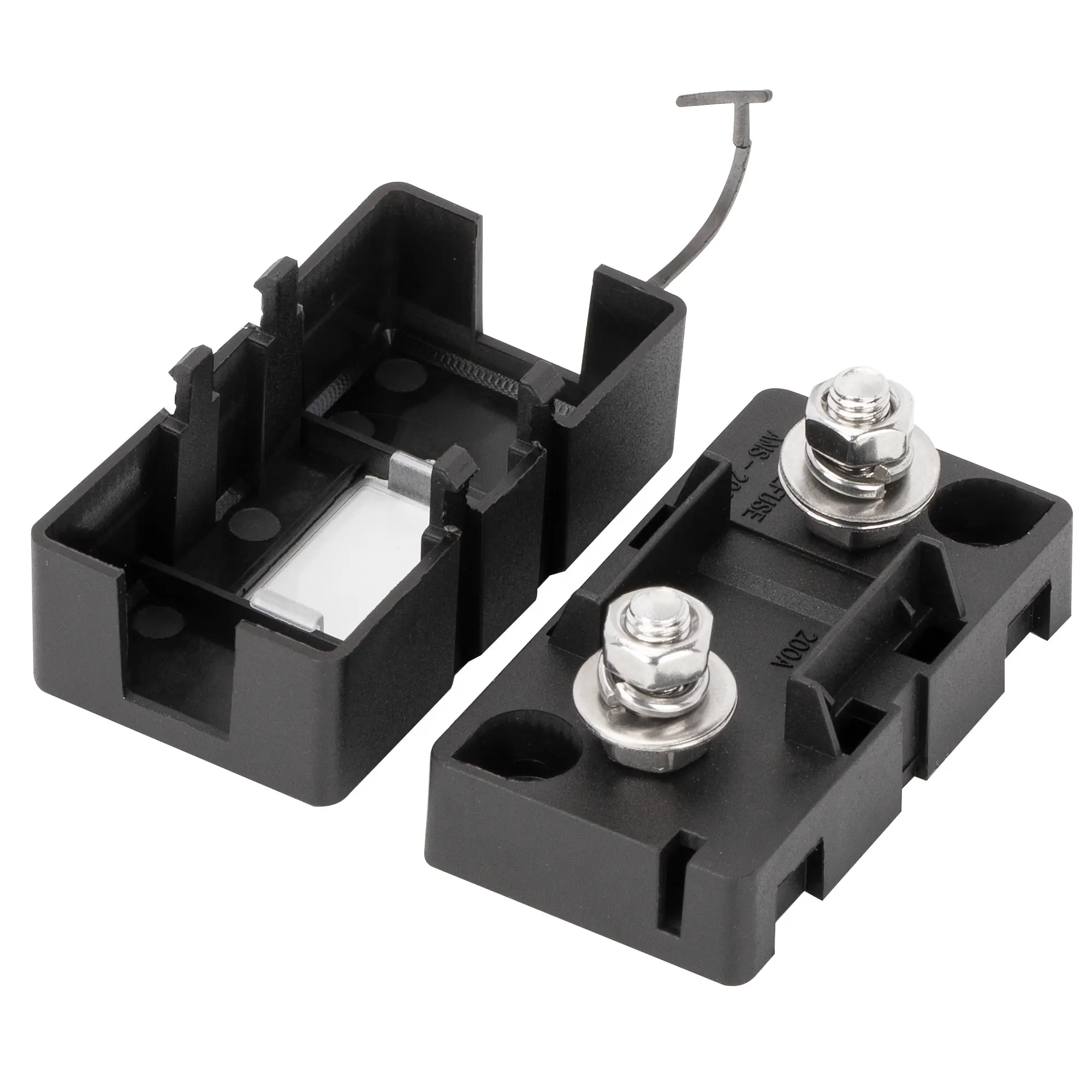

ANS-H 32V 2 Pole Bolt-Down MIDI Fuse Holder


The MIDI fuse holders are available for systems with DC voltages up to 32 volts, ANL fuses 30 to 200A, M5 terminals and M3 mounting holes.

The high current fuse holder is compatible with MIDI bolt-on fuses up to 200 amps and comes with a protective thermoplastic cover.

ANS-H 32V 2 Pole Bolt-Down MIDI Fuse Holder Details

  • It’s compatible with MIDI bolt-down fuses rated up to 200amps.
  • Glass-filled thermoplastic body withstands harsh underhood conditions.
  • M5 threaded studs and washers for simple fuse installation.
  • Interlocking pins on the sides of the fuse holder let you connect additional MIDI Series fuse holders to create a multi-fuse block.
  • The base style is without mounting tabs featuring M3 holes for in-board mounting.

ANS-H Datasheet

Maximum operating voltage 32 Volt DC
Maximum operating amperage 200 Amp
Terminal stud size M5
ANL Fuses available 30-200 Amp
Fuse Type MIDI fuse
Mounting Method Bolt Down, M3 Holes
