MSL-G/MSL-S

MSL-G/MSL-S

Category :

KNOB

MSL-G/MSL-S Amp Knob:

MSL is ABS amp knob.
It’s  dome shape with ribbed side,  gold or silver top,  black indicator line on top that easy to grip and turn.
This knob have two type shaft.
1.Internally it’s on a brass ferrule with a small brass screw. Can fix to most sizes of potentiometer shaft up to 6.4mm diameter.
2. 6.0mm shaft with 18 teeh inside.
It’s with golden also sliver top, black housing.

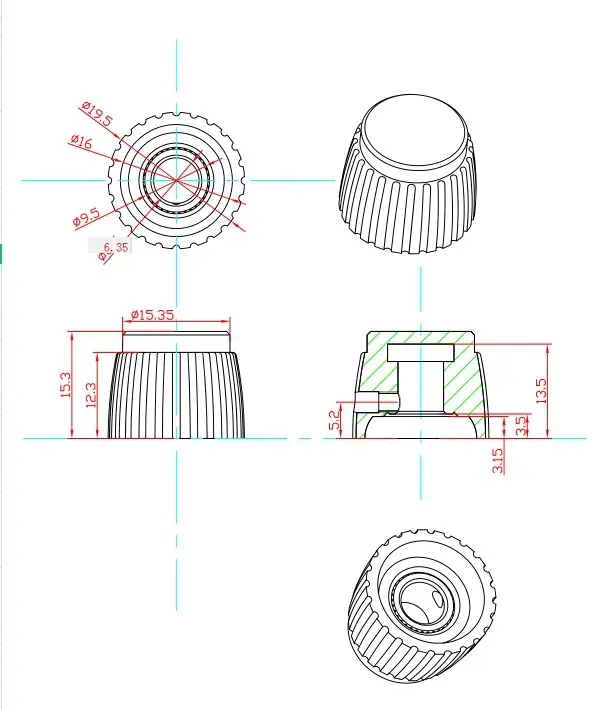

Pls check the datasheet below:

Material:ABSShaft:6.4mm/ 18T
Color:Silver, GoldenHeight:15.35mm
Diameter:19.5mmTop diameter15.3mm
Operating Temperature:-25℃~+85℃OEM or ODM:Available

MSL 6.4mm:

MSL 18Tx6.0mm:
