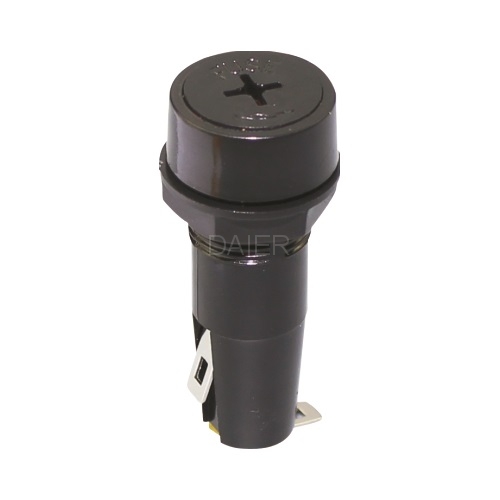

R3-10 6x30mm fuse box:

Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.
Fuse holders are suitable for protection against overloads and short circuits.

Daier offer fuse-holder and fuse part for 15 years.  Now Daier have glass fuse holder and inline fuse holder.

Good glass fuse-holder fits 5x20mm, 6x30mm and 10x38mm grass fuse.

Quality rubber fuse-holder fits ATC/ATO size fuses. Holds and encloses fuse securely. Hinged cover protects fuse from impact, water and dust. 12-inch wire loop is made of 18 gauge flexible stranded red wire.

Pls check the datasheet below:

Rating: 10A 250VAC Contact Resistance: 35mΩ max
Electrical Life: ≥ 200 Cycles Mechanical Life: ≥ 5,000 Cycles
Dielectric strength: 1500VAC 50Hz 1 minute Operating Temperature: -55℃~+85℃
Fuse Size: 6x30mm OEM or ODM: Available
