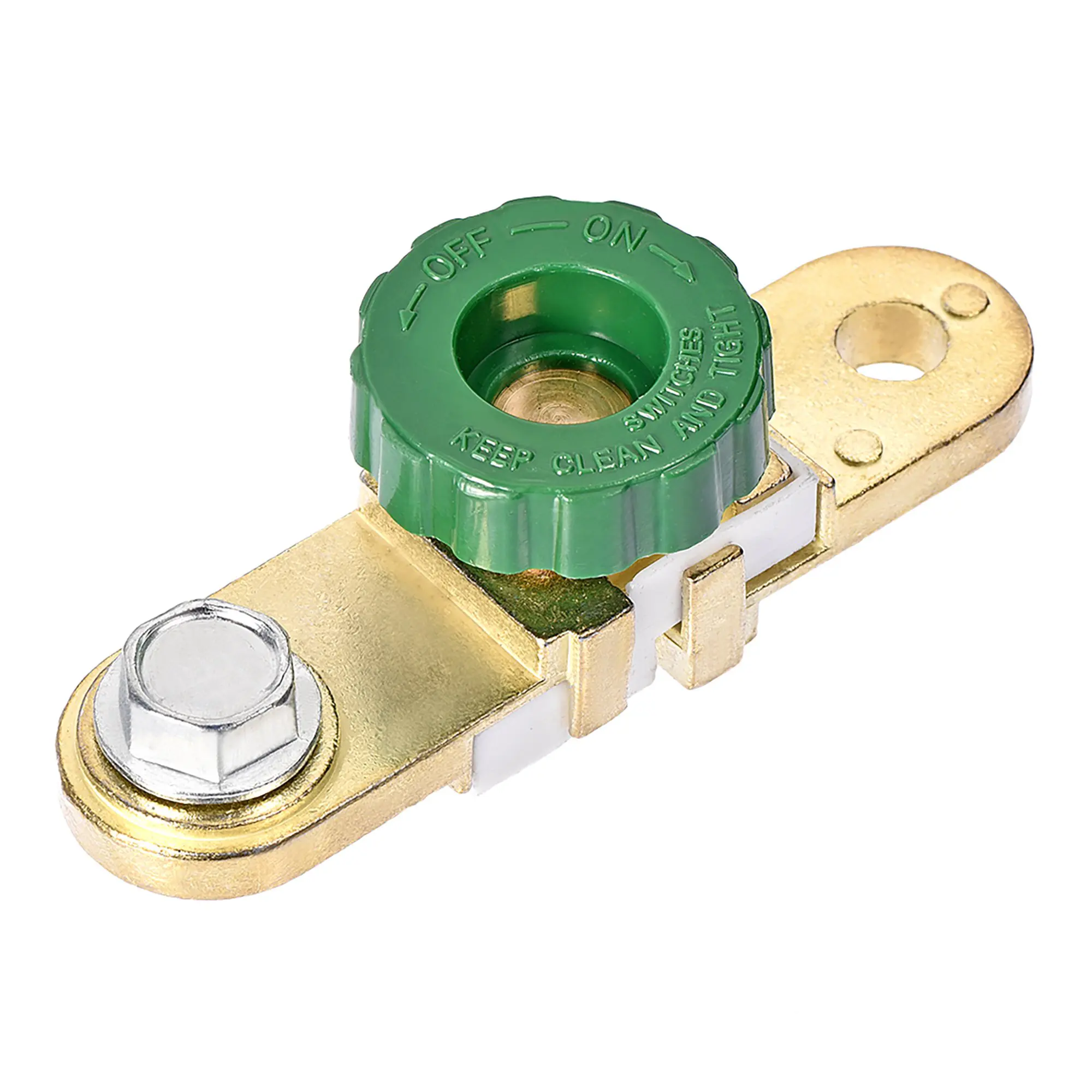

56-00027 Side Post Battery Quick Disconnect
Part#56-00024
The side post battery quick disconnect is knob type, rated current is 125A, apply to 12-24V DC system, and used for battery negative post 3/8″ hole.
The side post battery disconnect switch is designed for use with GM-type battery connection side. For safety reasons, use the negative terminal.
Category :
Battery Switch
56-00027 Side Post Battery Quick Disconnect Details
- Robust & Durable
The battery cut-off switch is made of zinc alloy with brass plated surface for corrosion resistance. For battery negative post 3/8″ hole, DC 12V system, rated current: 125A.
- Battery Protection
This on/off switch is used for the side battery terminals. It is designed to prevent the battery from being depleted when stored or not in use. Contributes to saving battery life
- Simple Operation
A knob-type battery switch that turns to the left (counterclockwise) to disconnect the battery and to the right (clockwise) to reconnect it. Disconnecting the battery is quick and easy
- Widely Applications
It is used for general-purpose automotive side post batteries or other batteries with 3/8″ side post terminals, and also for electrical equipment
56-00027 Datasheet
| Voltage |
12-24V DC
|
|
Continuous (Amp)
|
125A
|
|
Crank (Amp)
|
500A
|
|
Material
|
Zinc Alloy, Brass
|
|
Cable size
|
4-6 AWG
|
|
Negative Post Hole
|
10mm / 0.39″
|
Still have a question about the 56-00027 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
