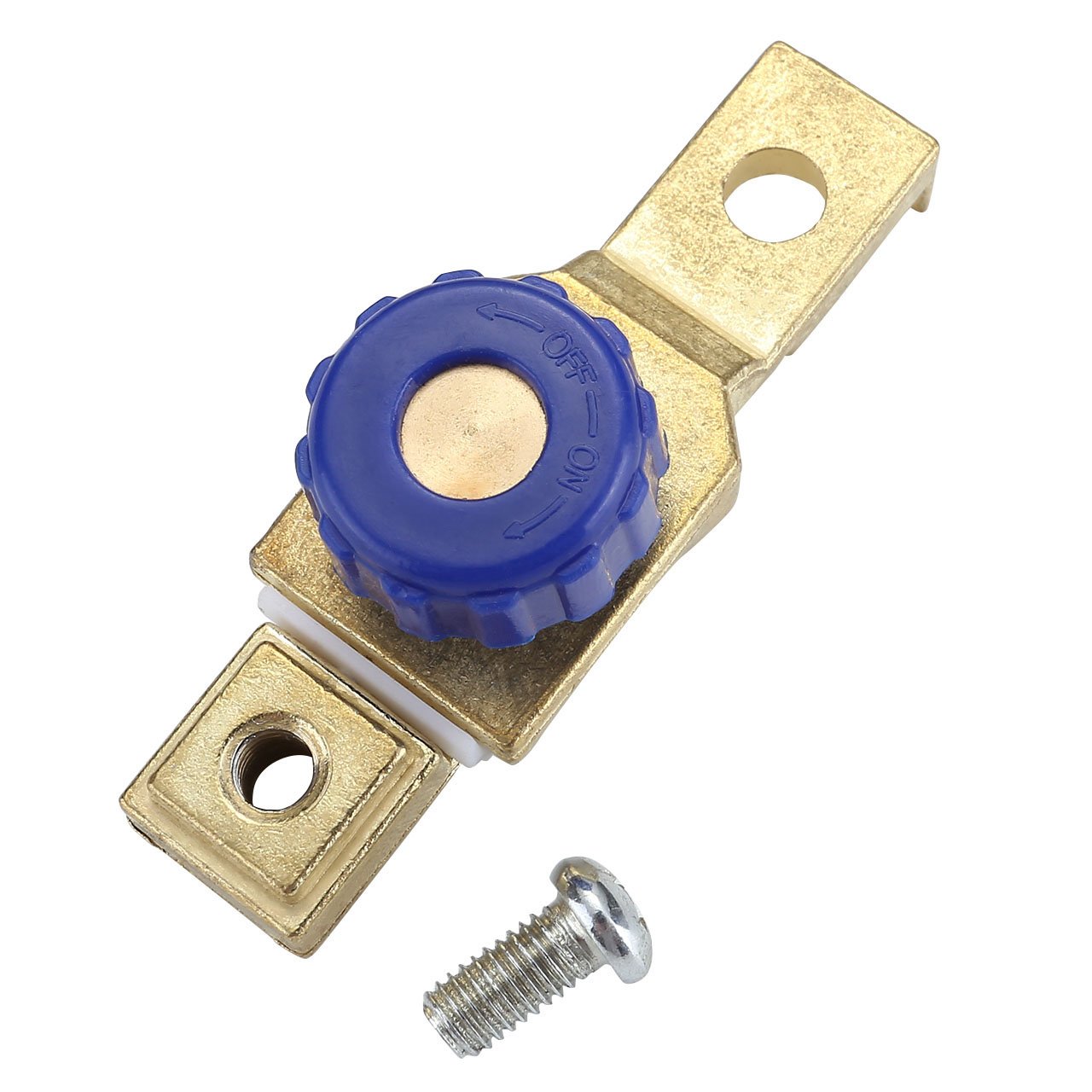

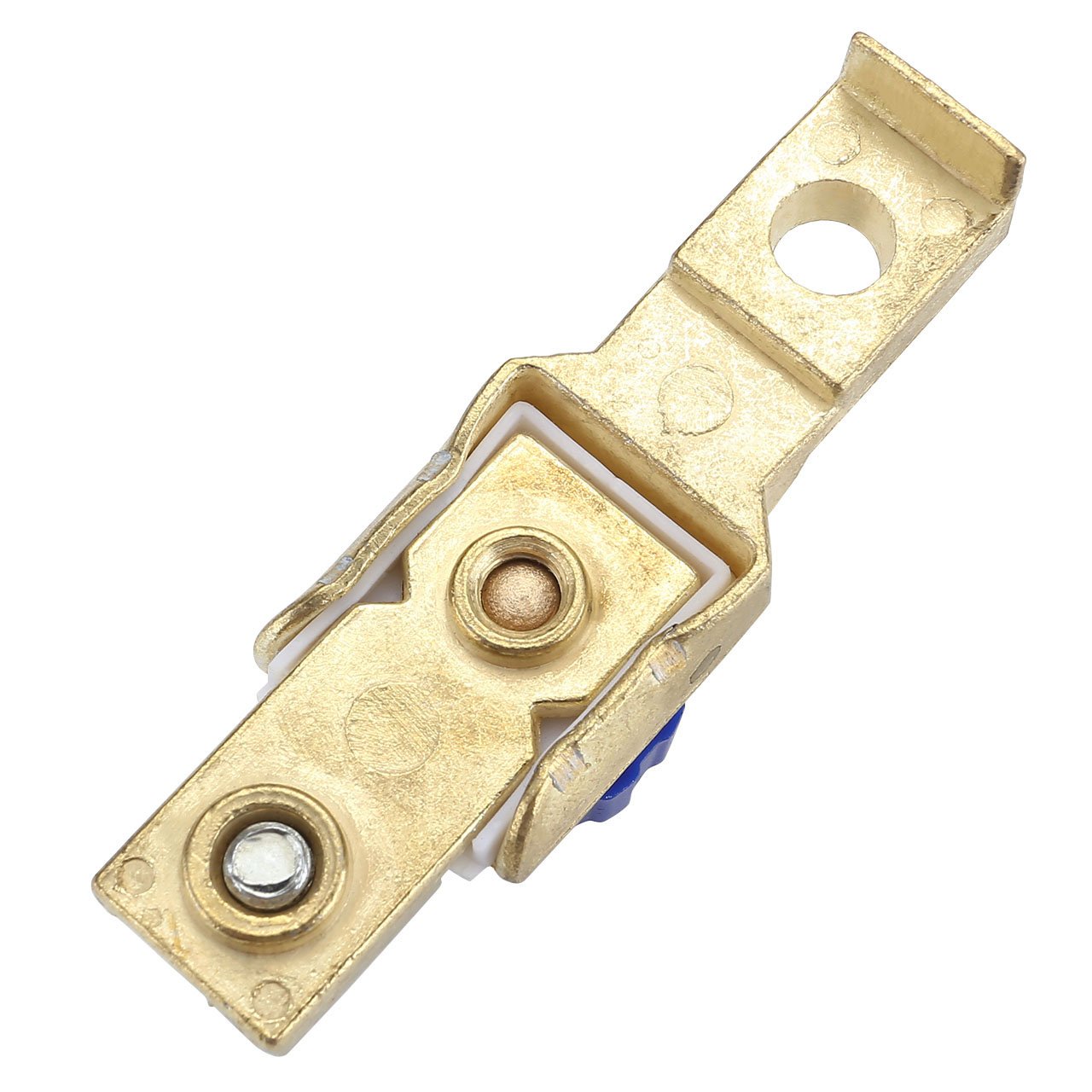

56-00024 Motorcycle Battery Disconnect Switch

Part#56-00024

The motorcycle battery disconnect switch is knob type, rated current is 80A, apply to 6V/12V motorcycle battery for 0.25″/ 6mm hole only.

L-shaped automatic power switch with quick-release screw disconnects and reconnects the battery with a simple turn of the top knob.



Category :

Battery Switch

56-00024 Motorcycle Battery Disconnect Switch Details

  • It is suitable for 6V/12V motorbike batteries, on the negative side, for 0.25″/6mm holes only, rated at 80A.
  • It protects the battery from accidental depletion, facilitates temporary disconnection during vehicle maintenance and extends the life of the battery.
  • This battery switch is made of brass for corrosion resistance and good conductivity. Rated current 80A.
  • The purpose of switching the power off and on is achieved by a screwing up or screwing down action. To ensure that it disconnects the battery well, turn the knob one turn.

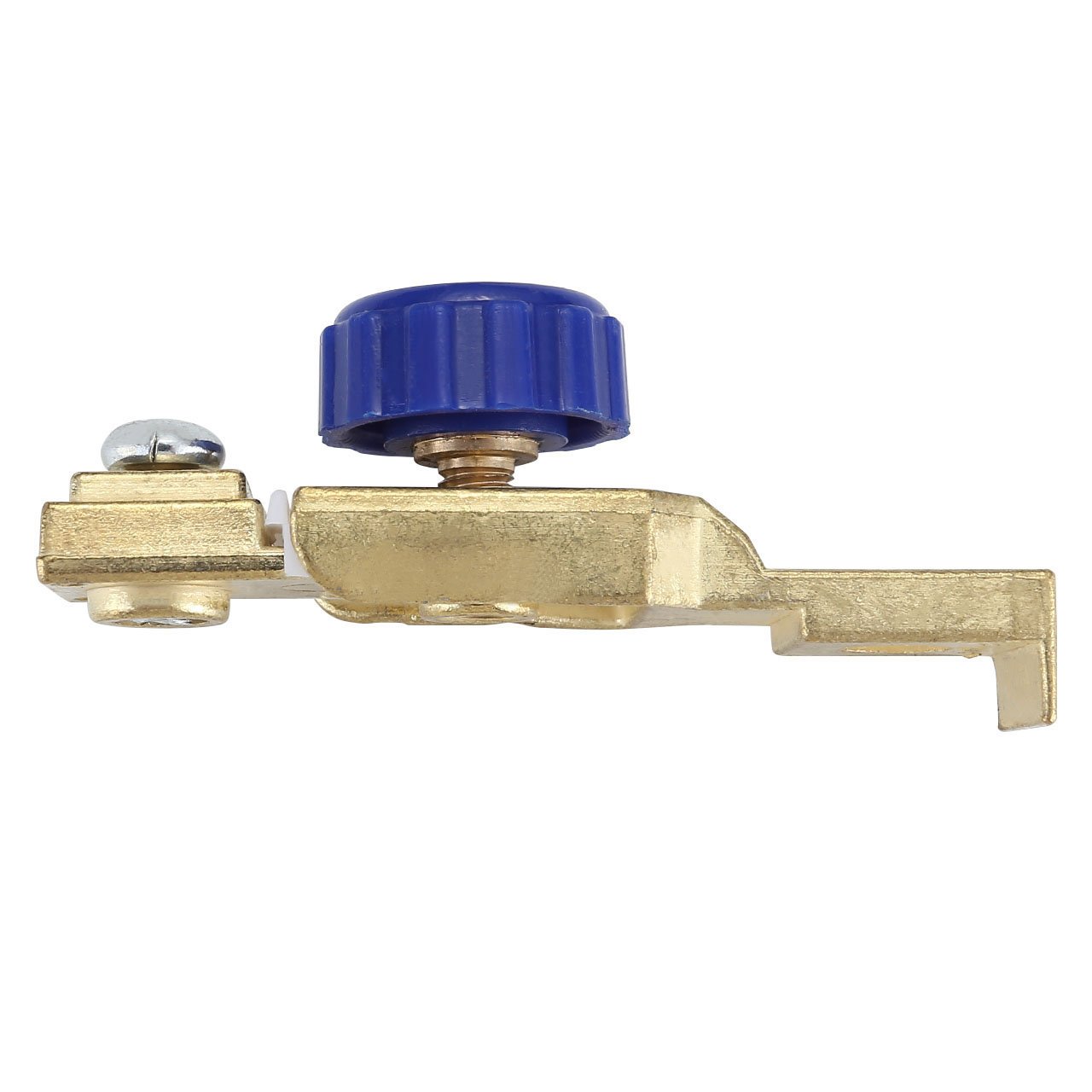

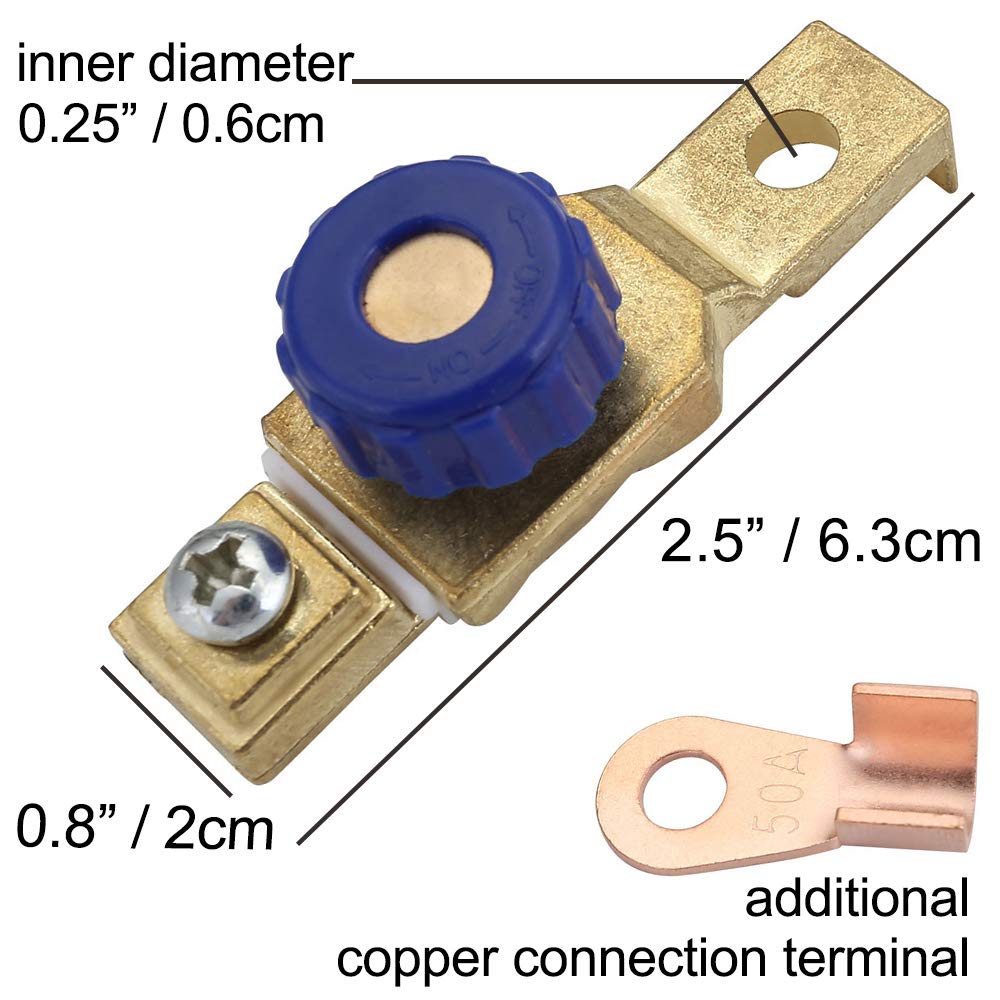

  • This battery switch is knob type, easy to install and use, and measures 2.48*0.78*0.98 inches/63*20*25mm.

56-00026 Switch Datasheet

Voltage system
DC 6V-12V
Rated current
80A
Connector Type
Screw
Material
Brass
Mounting Type
Panel Mount
Battery head
6mm
Size
2.48*0.78*0.98 inch / 63*20*25mm
Broad Compalitity
Motorcycles

Still have a question about the 56-00024 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
