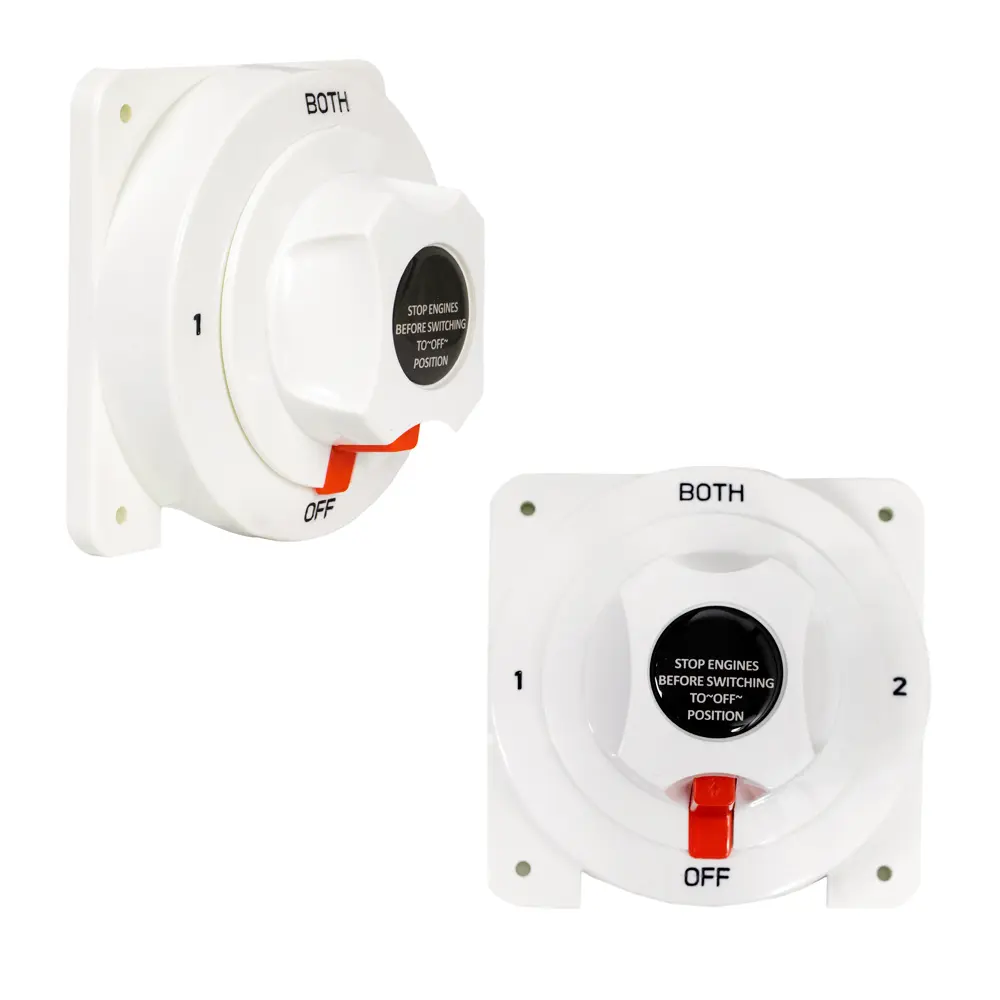

ASW-A701S-B 300A 6-32V DC 4 Position (OFF-1-BOTH-2) Dual Battery Selector Switch for Engine & Auxiliary Power
Part#ASW-A701S-B
This 4-position battery selector switch offers robust dual battery management with a 175A continuous and 300A intermittent current rating, compatible with 6-32V DC systems.
Featuring durable ABS construction and tinned brass bolts, this versatile battery isolator provides enhanced safety and operational convenience across a wide range of automotive, marine, and recreational vehicle applications.
Category :
Battery Switch
ASW-A701S-B 300A 6-32V DC 4 Position (OFF-1-BOTH-2) Dual Battery Selector Switch Features
- Versatile Battery Management
This 4-position battery selector switch offers comprehensive control over dual battery systems. Users can select between Battery 1, Battery 2, or both in parallel, ensuring flexible power management for engine starting and auxiliary equipment. The dual battery switch also features an “OFF” position for complete system disconnect.
- Robust Power Handling Capacity
Designed for demanding electrical systems, this heavy-duty battery switch boasts a 175A continuous current rating and a substantial 300A intermittent current capacity. Its broad voltage compatibility, from 6V to 32V DC, makes it suitable for a wide range of vehicle and marine applications.
- Enhanced Safety & Operational Convenience
This battery disconnect switch provides essential safety by eliminating power draw from batteries when not in use, preventing drain. Its design allows for switching between battery banks without interrupting power supply, which is highly practical and convenient during operation or charging.
-
Durable & Compact Construction
Constructed with a rugged ABS plastic shell and tinned brass bolts, this marine battery selector ensures high conductivity and exceptional durability. The compact and lightweight design (134 x 134 x 77 mm) allows for versatile installation in any position, simplifying setup in confined spaces.
- Wide-Ranging Application Suitability
This universal battery isolator is ideally suited for a diverse array of vehicles and vessels. Its robust design and versatile functionality make it a prime choice for boats, RVs, trailers, cars, trucks, and various ship’s supply systems, providing reliable power distribution and isolation.
ASW-A701S-B 300A 6-32V DC 4 Position Dual Battery Selector Switch Datasheet
| Material | ABS shell + tinned brass bolts |
| Amp Draw | 175A |
| Max Amp Draw | 300A |
| Rated Voltage | 6/12/24/32V DC |
| Operation | 1-2-Both-OFF |
| Terminal Stud | 3 × M5 (3/16″) |
| Size | 134 x 134 x 77 mm |
