224-101

224-101

Category :

CONNECTOR

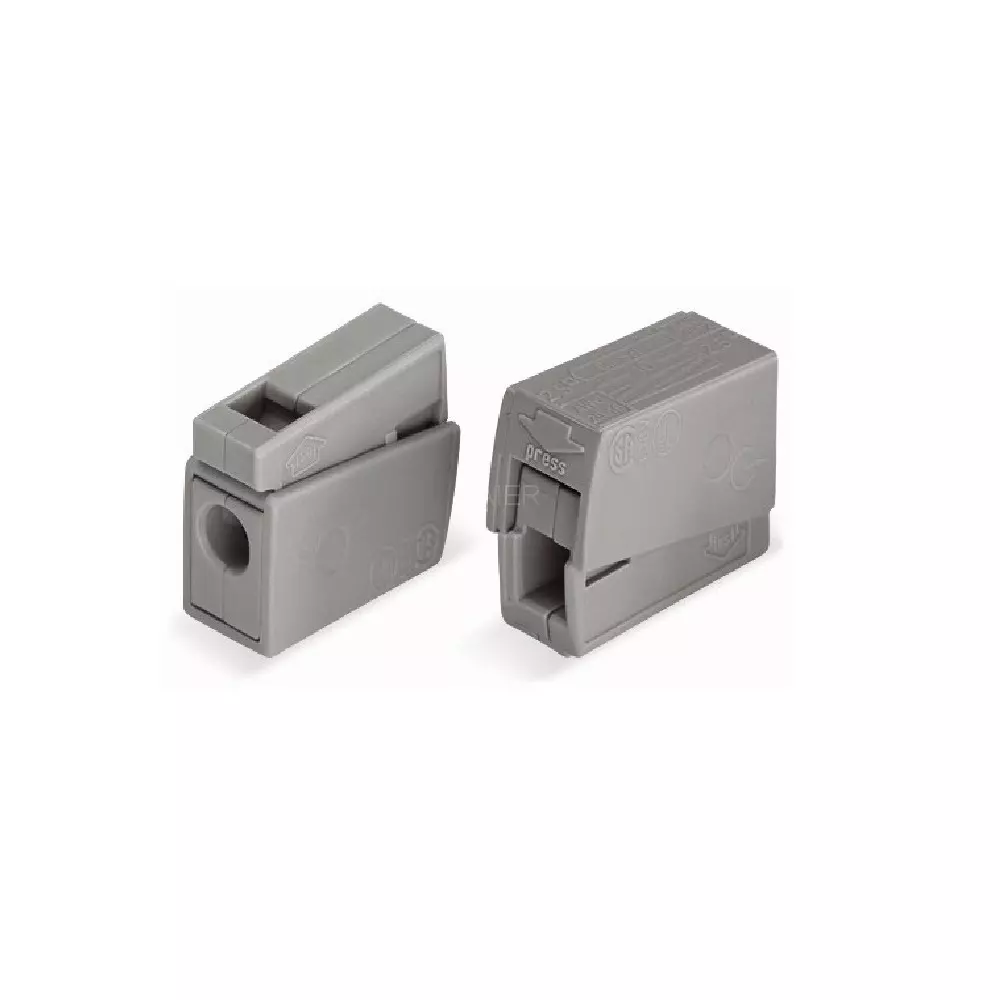

224-101 wire connectors – Pushwire to Cage Clamp:

224 -101 wire connector with Pushfit port on one side and Cage Clamp on the other. To use simply push the stripped solid conductor into the pushfit end to make the connection, on the clamp side squeeze the terminal to open the clamp mechanism and insert the stripped solid, stranded or flex conductor into the connector to make the connection. No tool required.



224 -101 wire connectors meet the most stringent UK and international standards including the electrical requirements of BS7671 17th Edition. Installers can be totally confident that using the connectors enables them to follow ‘best practice’ procedures and fully comply with the most up to date safety criteria.



224 -101 wire connector designed specifically for the application of fitting wall mounting and ceiling luminaries. Prepare wires by stripping to 9-11mm.
Reliable and vibration proof interconnections
Installation side cable acceptance, 1.0 – 2.5mm² solid pushwire
Lighting side cable acceptance, 0.5 – 2.5mm² solid and fine-stranded (flex) cage clamp

Pls check the datasheet below:



SKU:224-101
Connector Type:Push to Clamp
Colour:Grey
Wire Ports:2
Current Rating:24A
Cable Types:0.5 … 2.5 mm² Solid, 0.5 … 2.5 mm² Flex
Width:8mm
Length:20.4mm
Height:15.5
Strip Length:9 – 11mm

224-101:

Wire connectors
